BEKA BEKA-MAX PICO-troniX1 User Manual

© BEKA 201 !9 All rights reserved
BAL2185_Grease_lubrication_pump_PICO_with_PICO-troniX1_-tronic_0519EN 10158410
...a product of
49
B) Removethe threehexagon sockethead capscrews (pos.1, seefig.55) usinganAllen keyAF 3.
Fig.55:

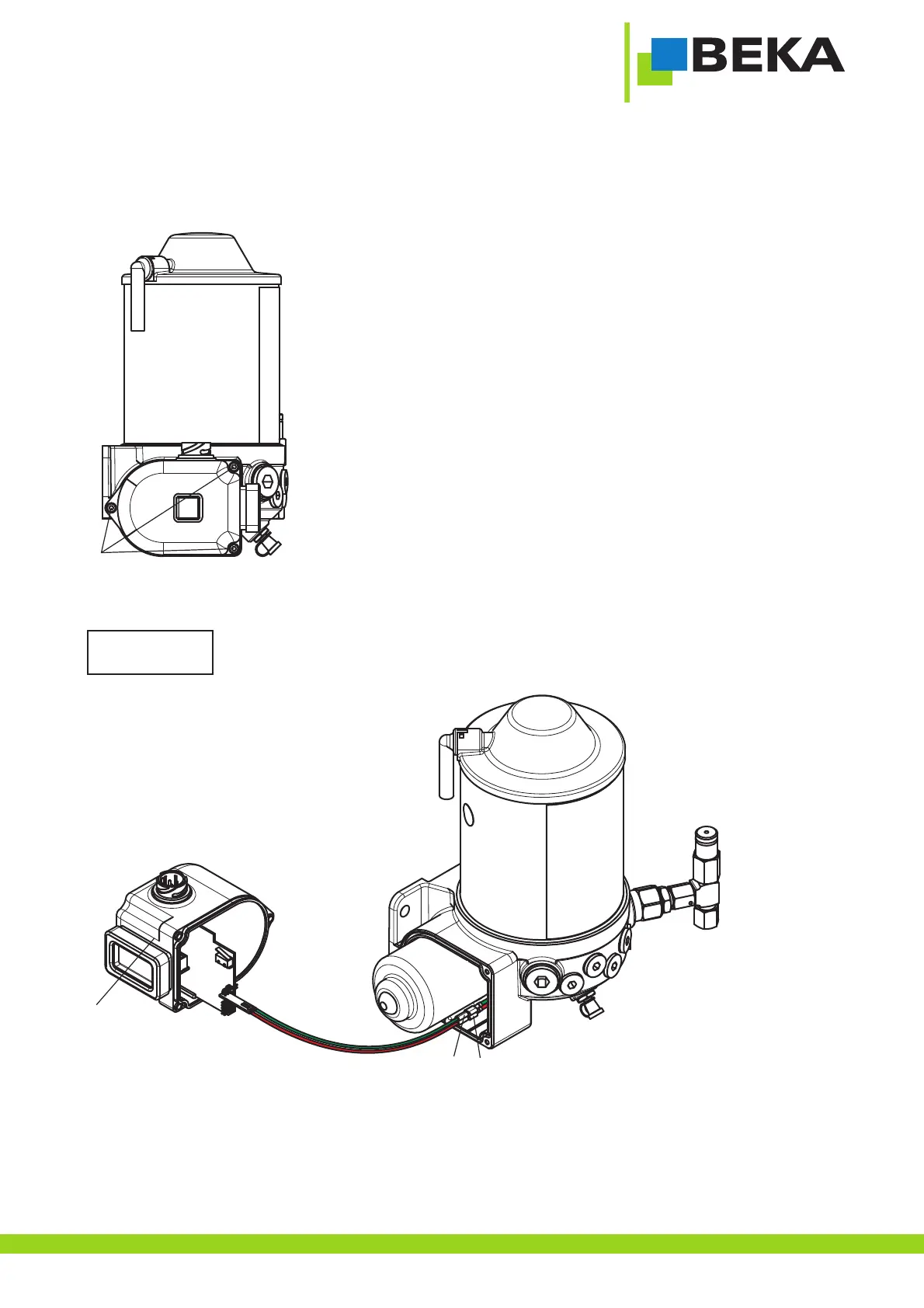

C) Remove the protective housing (pos. 1, see fig. 56) and loosen the receptacles of the connection cables (pos. 2
andpos. 3,see fig.56).
Makesure thatthe connectioncables donot tearoff!
Fig.56:
D) Attach the receptacles of the connection cables at the new control unit. The red connection cable at the red
receptacle(pos. 2,see fig.56) andthe greenconnection cableatthe greenreceptacle (pos.3, seefig. 56).
1
Caution!
1
2
3
