E) Put the protective housing (pos. 1, see fig. 57) on the pump housing (pos. 2, see fig. 57) and screw the hexagon
sockethead capscrews (pos.3, seefig. 57)back in.
Make sure that the (pos. 4, see fig. 57) is not ; otherwise can enter intoflat gasket damaged water
theintegrated controlunit andcan it!destroy

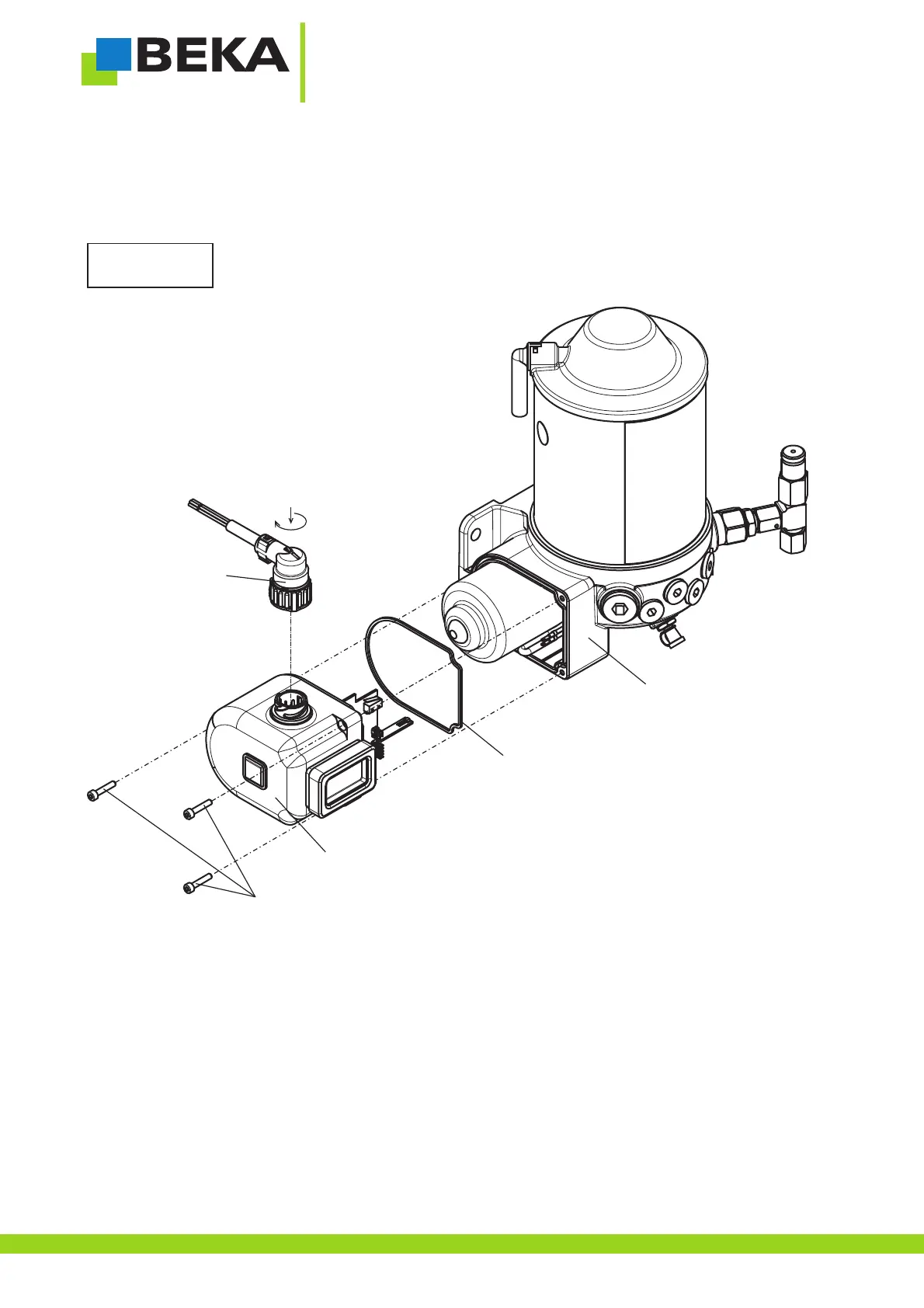

Fig.57:
F) Tighten the hexagon socket head cap screws (pos. 3, see fig. 57) with a tightening torque of approx. 2.5 Nm and
reconnectthe deviceto thepower supply(pos. 5,see fig.57).
Caution!
2
1
3
4
5
