Binder M 56 - Chamber Rear

M (E3.1) 1/2023 page 19/136
2.2 Chamber rear

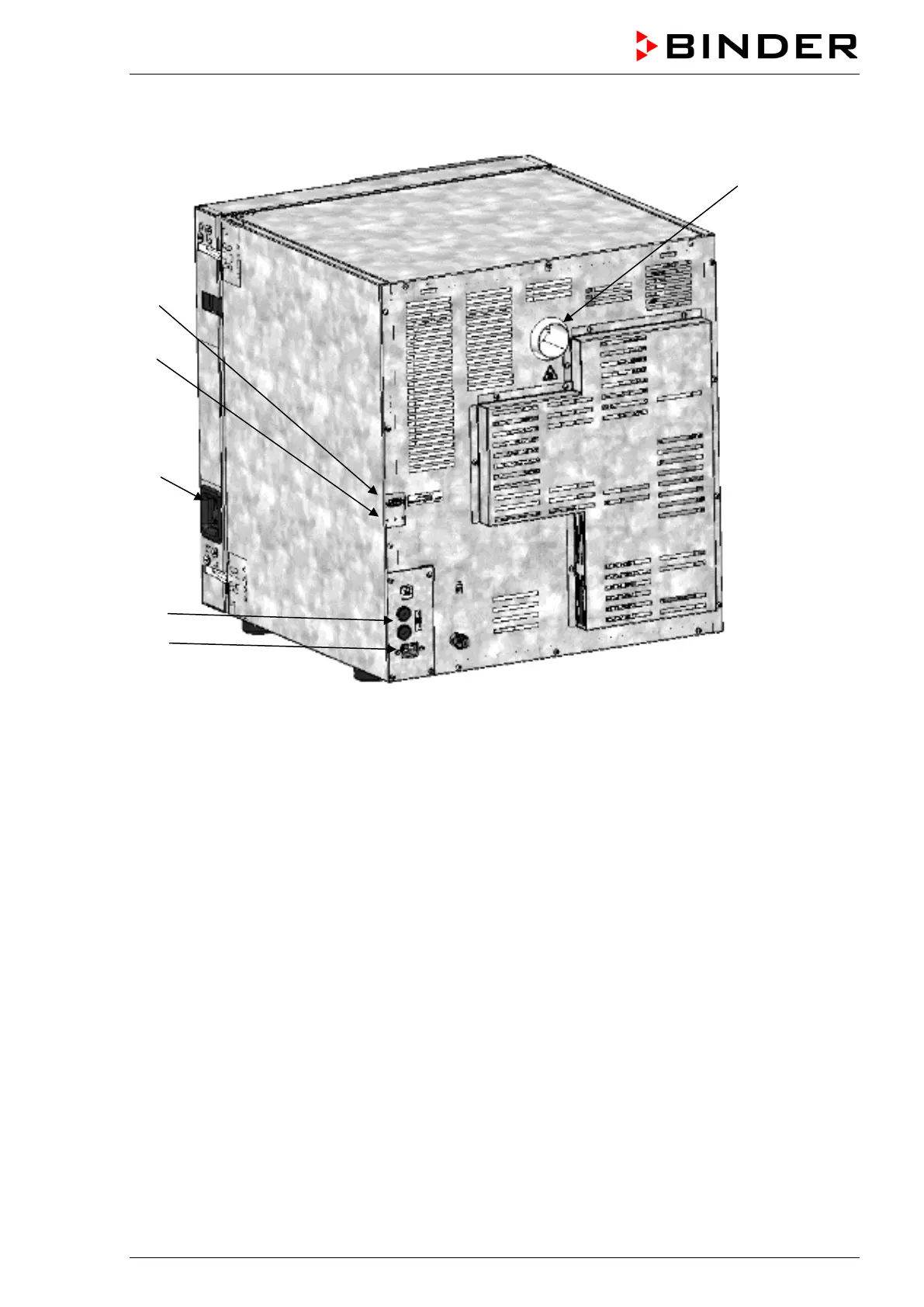

Figure 6: Overview, chamber with single door
(4) On/Off switch (up to size 115)
(6) SUB-D socket “
ALARM / SWITCH CONTACT” for zero-voltage relay alarm contact and zero-voltage
switching contact
(7) SUB-D socket “
ANALOG OUTPUT” (option) for optional analog output
(8) Miniature fuses 250 V AC (T) (up to size 115):
2x 10 A for M 56 und 2x 12,5A for M 115
(9) Connection for IEC connector plug (up to size 115) 230 V AC
(10) Exhaust duct
(10)
(6)
(7)
(4)
(9)
(8)
