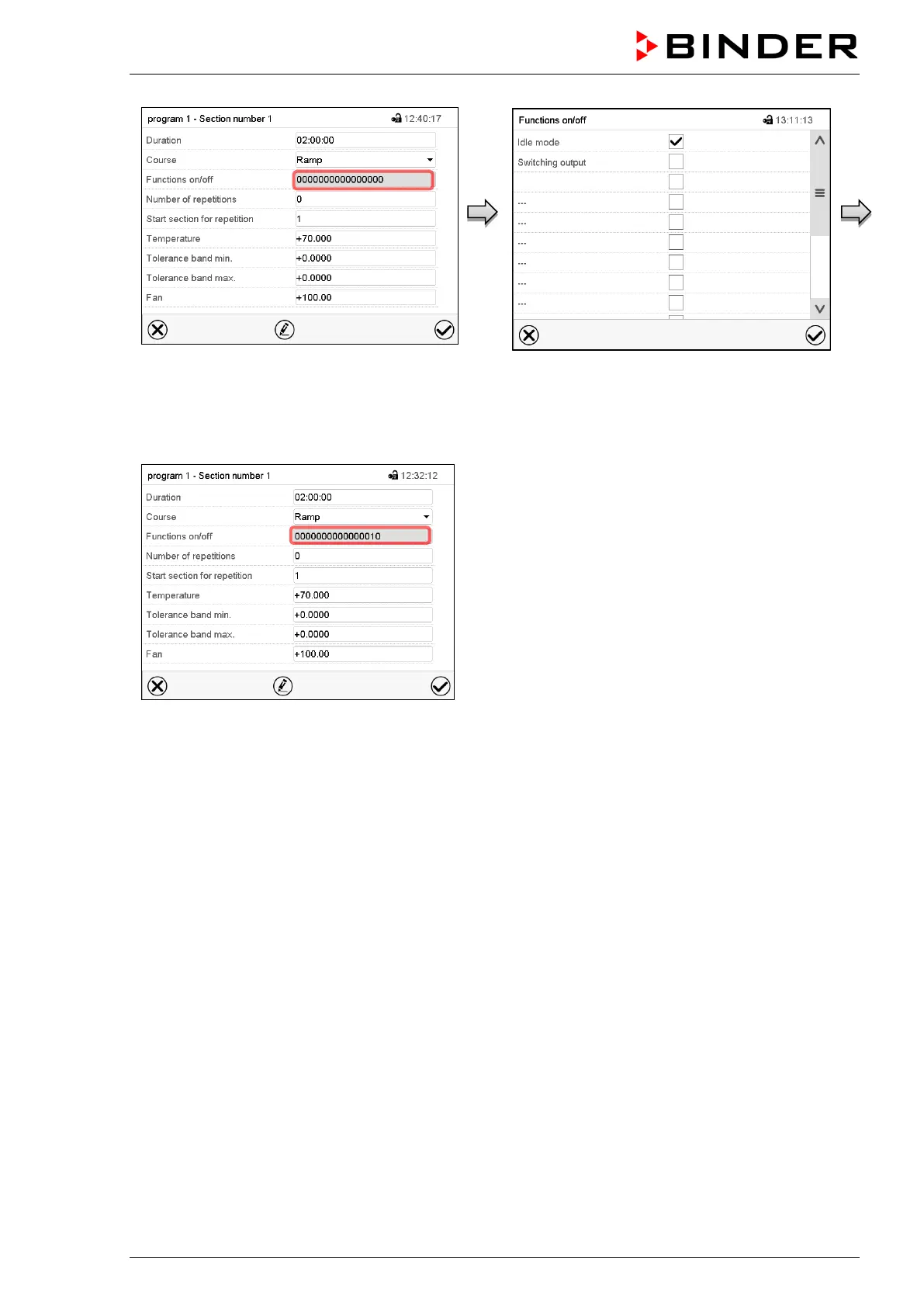

Section view.
Select the field “Functions on/off”.
“Functions on/off” entry menu.
Mark / unmark the checkbox of the desired
function to activate / deactivate it and press
the Confirm icon.
The controller returns to the section view.
Section view indicating the operation lines.
Activated operation line: switching status “1” (On)
Deactivated operation line: switching status “0” (Off)
The operation lines count from right to left.
Example:
Activated operation line “Idle mode” = 000000000000000
1
Deactivated operation line “Idle mode” = 000000000000000
0
10.7.4 Setpoint entry for temperature and fan speed, setting the air flap position
• Select the field “Temperature” and enter the desired temperature setpoint.
Setting range: 0 °C up to 300 °C
Confirm entry with Confirm icon. The controller returns to the section view.
• Select the field “Fan” and enter the desired fan speed setpoint.
Setting range: 40% up to 100% fan speed.
Confirm entry with Confirm icon. The controller returns to the section view.
• Select the field “Air flap” and enter the desired position „0“ up to „4“.
Setting range: Position “0” (closed) to “4” (open).
Confirm entry with Confirm icon. The controller returns to the section view.
