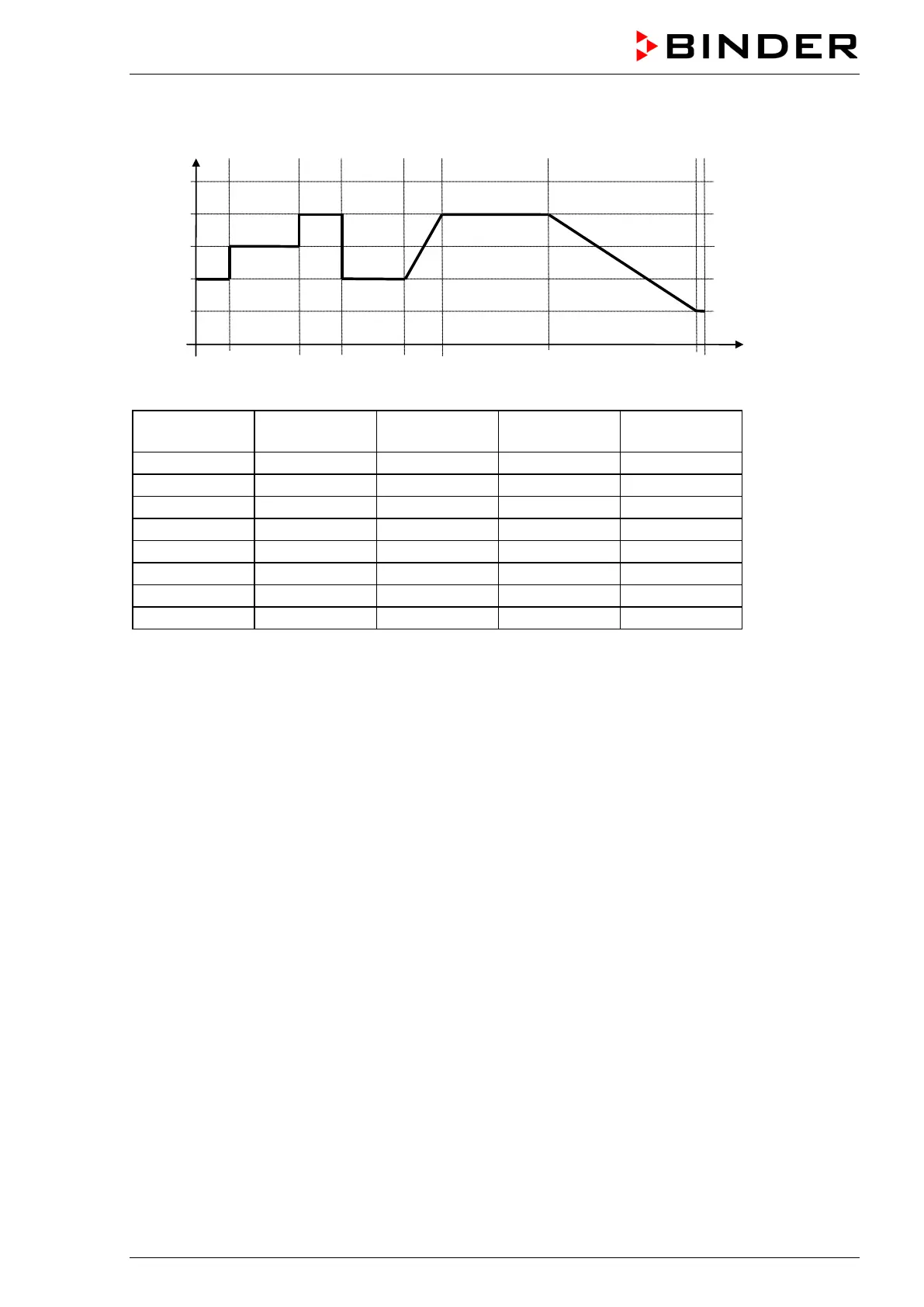

“Ramp” and “Step” mode example (representation of a temperature course)
W/°C
t/min.
0
20
40
60
80
100
1
0
30 40 60 70 100 130
1 2 3 4 5 6 7 8
Corresponding program table
Section No.
Duration
[hh:mm:ss]
Temperature
[°C]
Fan
[%]
Ramp or Step
1
00:10:00
40.0
xxxx
Step
2
00:20:00
60.0
xxxx
Step
3
00:10:00
80.0
xxxx
Step
4
00:20:00
40.0
xxxx
Step
5
00:10:00
40.0
xxxx
Ramp
6
00:30:00
80.0
xxxx
Ramp
7
00:30:00
80.0
xxxx
Ramp
8
00:00:01
20.0
xxxx
Ramp
10.7.3 Special controller functions via operation lines
You can define the switching state of up to 16 operation lines (control contacts). They are used to activate
/ deactivate special controller functions.
• Operation line “Idle mode” activates / deactivates the operating mode “Idle mode” (chap. 5.4). This mode
serves to deactivate all chamber functions except the controller. With operating mode “Idle mode”, the
heating and fan are deactivated.
• Operation line “Switching output” is used to switch on/off the zero-voltage switching contact
• Operation line “Object control” is used to switch on/off the object temperature control (option). This op-
eration line is visible only at units with the object temperature control option.
The other operation lines are without function.
Use the setting “Functions on/off” to configure the operation lines.
