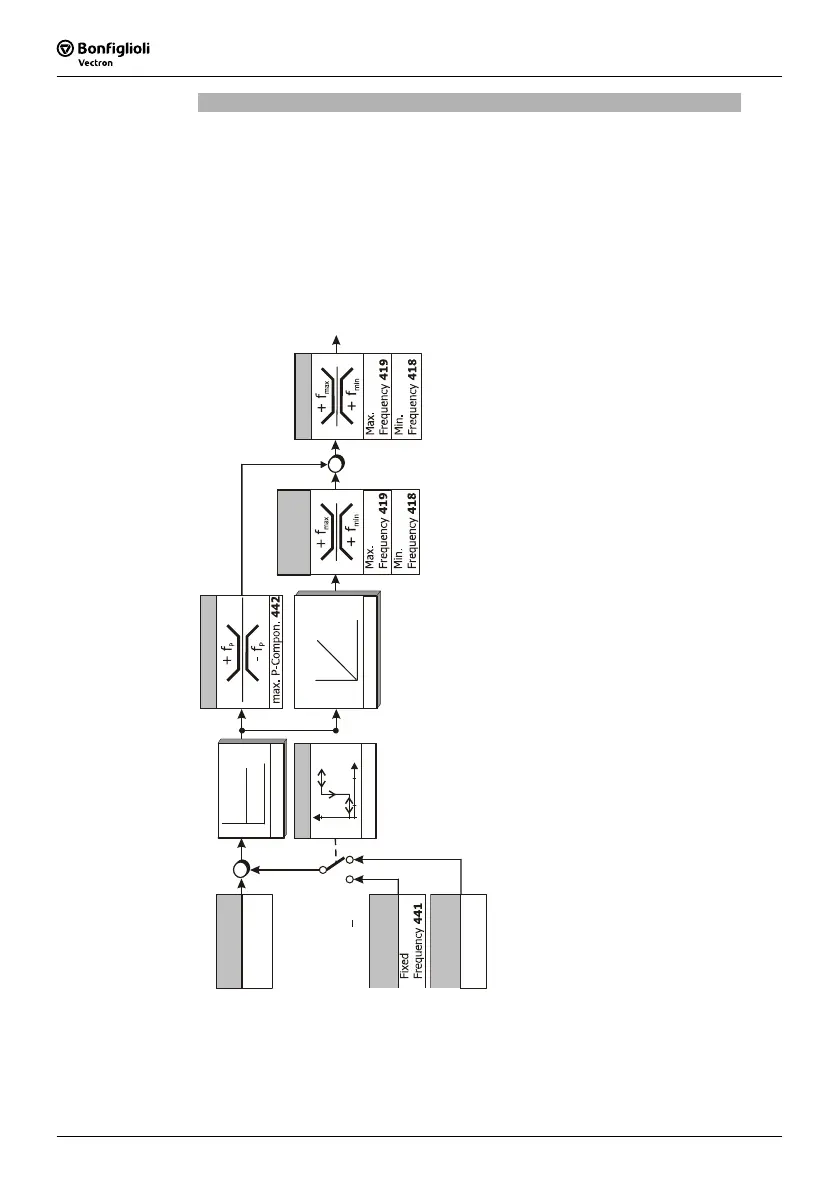

Operation mode filling level 1, parameter Operation Mode 440 = 2
This operation mode can be used, for example, for contents level control.
If the actual value is missing, the function brings the output frequency to an adjust-
able value.
The minimum value monitoring prevents an acceleration of the drive if the actual
value is missing.
If the actual value is missing (< 0.5%) the output frequency is guided to the
Fixed
frequency
441. This is done using the set Deceleration (clockwise) 421.
The
Fixed frequency 441 must be in the range between Minimum frequency 418 and
Maximum frequency 419. If the Fixed frequency 441 is set to a value smaller than
the
Minimum frequency 418, the output frequency is guided to Minimum frequency
418. The frequency will not drop below Minimum frequency 418.
If the actual value is available again, the controller continues operation automatically.
Technology Controller Act. Percentage Source
478
Ref. Percentage Channel Ref. Percentage Source
476
Minimum value
> 0.50%
P. 4 7 8
0.50%
<
Amplification
444
P
I
Integral Time
445
+
+
-
Max. P-Component
Limitation
Max. I-Component
Fixed Frequency
