Variant 3:
The customer-operated ATMs are further away from the video system. The video system and
interface processor, as well as the interface processor and the ATMs, cannot be connected
together in such a way that the distance between each of them is less than 15 m. The
individual ATMs are not close enough together to allow them all to be connected to the
interface processor in such a way that the distance between the interface processor and each
ATM is less than 15 m.
Possible solution:
The interface processor is connected directly to the video system. To increase the range, two
OVS are required between the interface processor and the ATM.

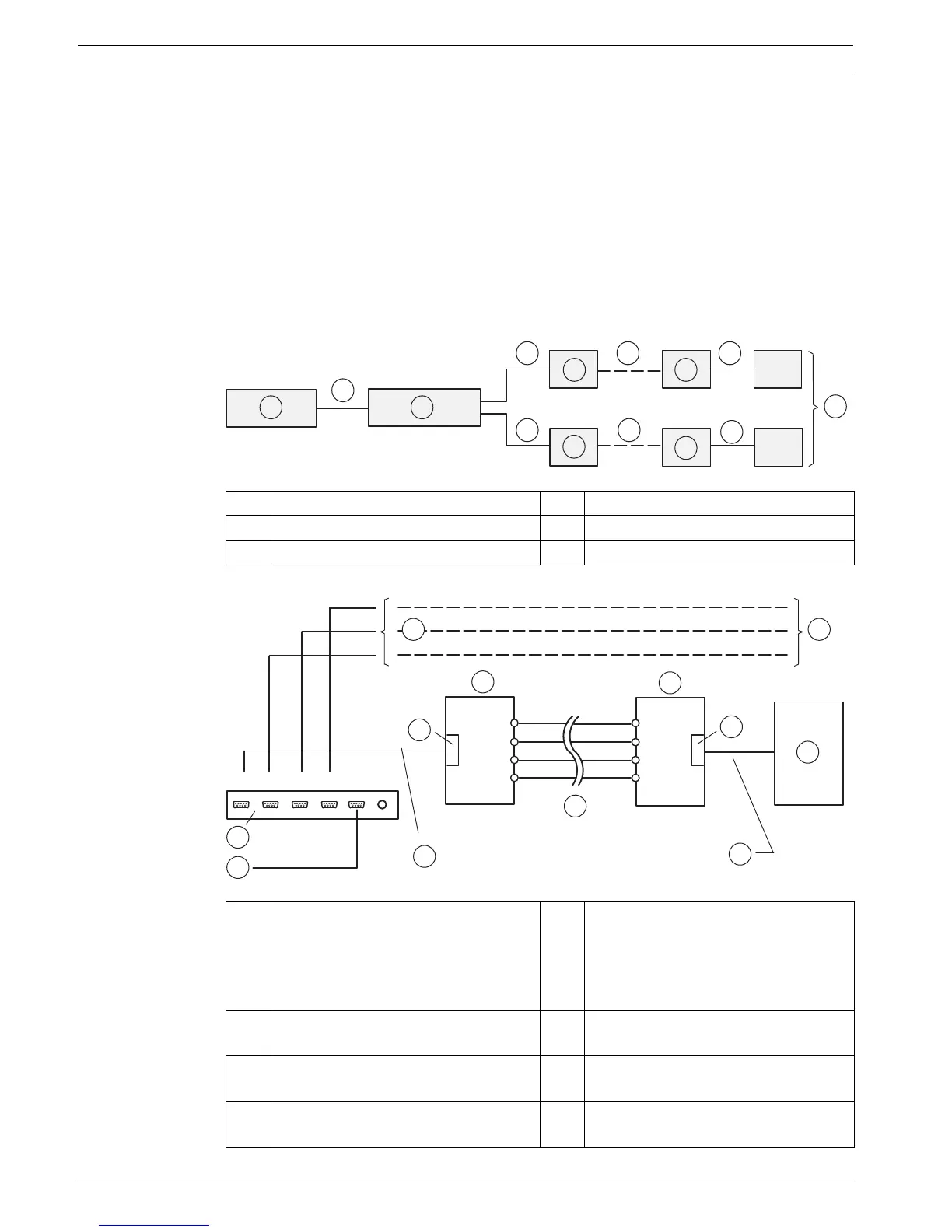

Connection principle:
Connection details:
1 Video system 4 OVS
2 Max. 15 m 5 Max. 1000 m
3 Interface processor 6 ATM1 - ATM4
1 Interface processor 7 OVS 1
BR1: Position 1/2
BR2: Position 1/2
ST3: Pin 2 = transmit line, Pin 3 =
receive line
2 Connection cable to video system
(COM x)
8 Range max. 1000 m
3 As ATM1 9 OVS 2 (bridge setting depending on
ATM)
4 To ATM2 - ATM4 10 ATM-specific cable connection or
adapter
1
5
5
2
3
4
4
2
2
4
4
2
2
6
