How to Use Cable Label Tool

132

9

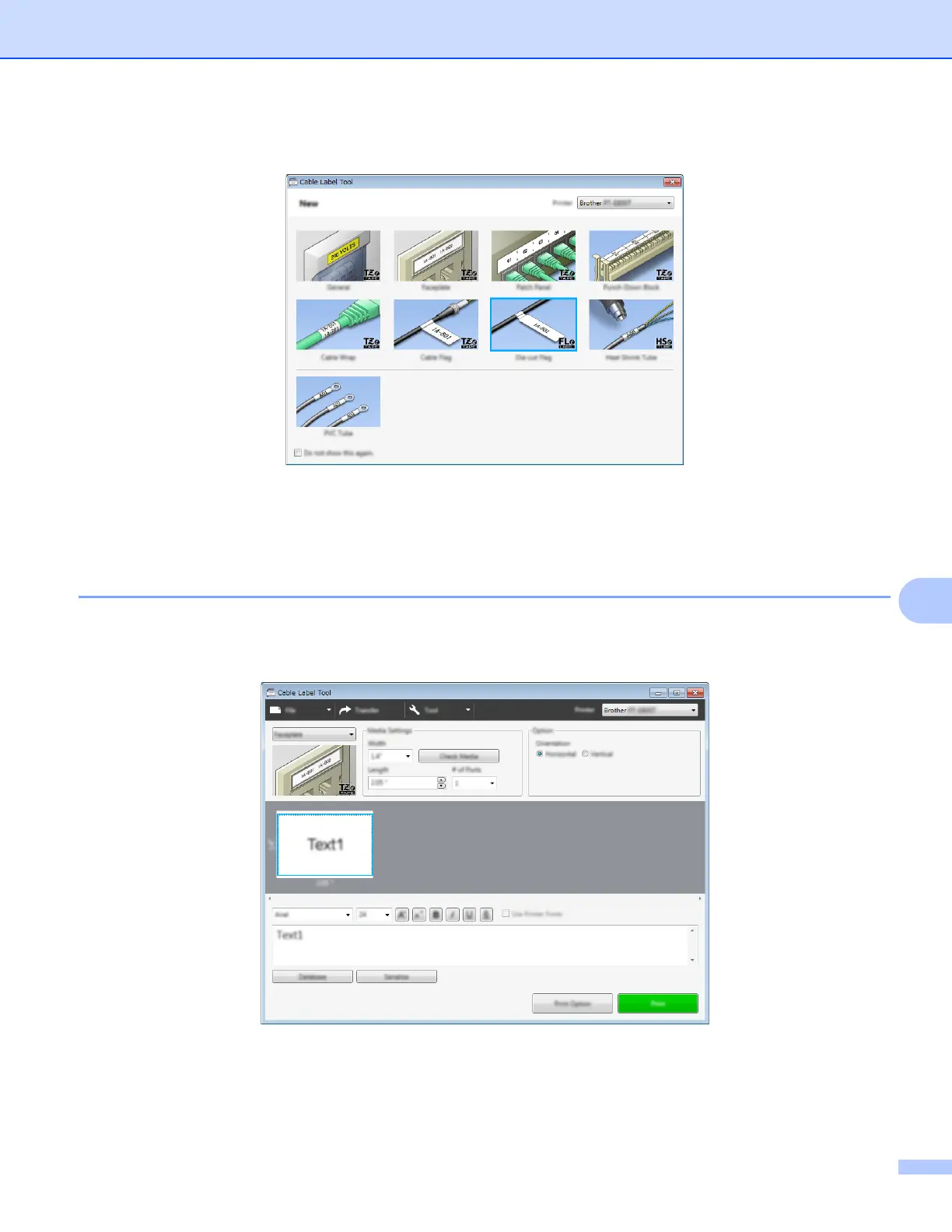

b Click the button for the cable label type you want.

Creating a Cable Label 9

Faceplate 9

Labels of this type can be used to identify various faceplates.

Blocks of text are evenly spaced on each label.
