Setting Up the P-touch

7

1

Inserting a Ribbon Cassette 1

a Press the cover open button to open the top cover.

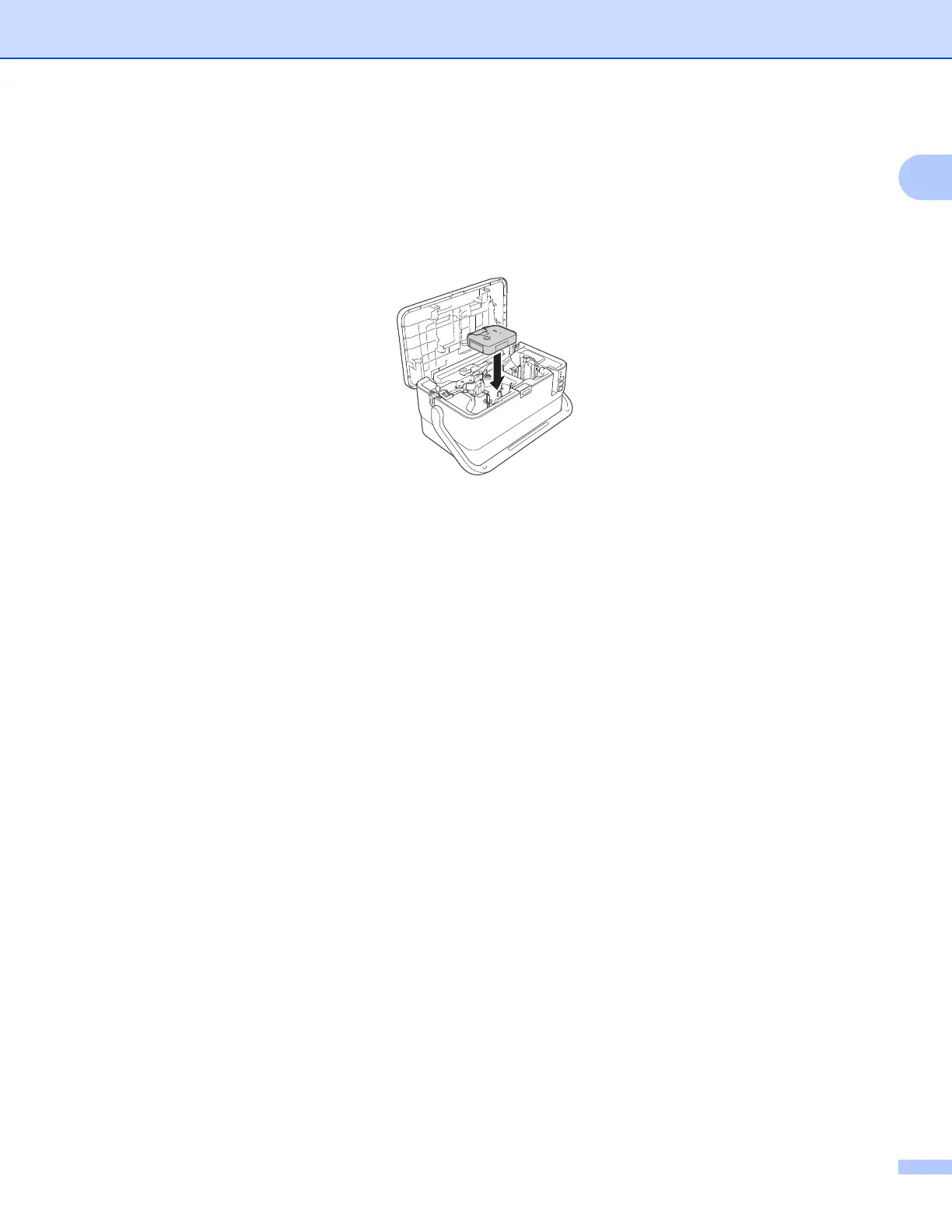

b Insert the ribbon cassette into the ribbon cassette compartment, and then push down evenly until the

ribbon cassette is installed correctly.

c Close the top cover.
