Troubleshooting and routine maintenance
C - 39
C
7

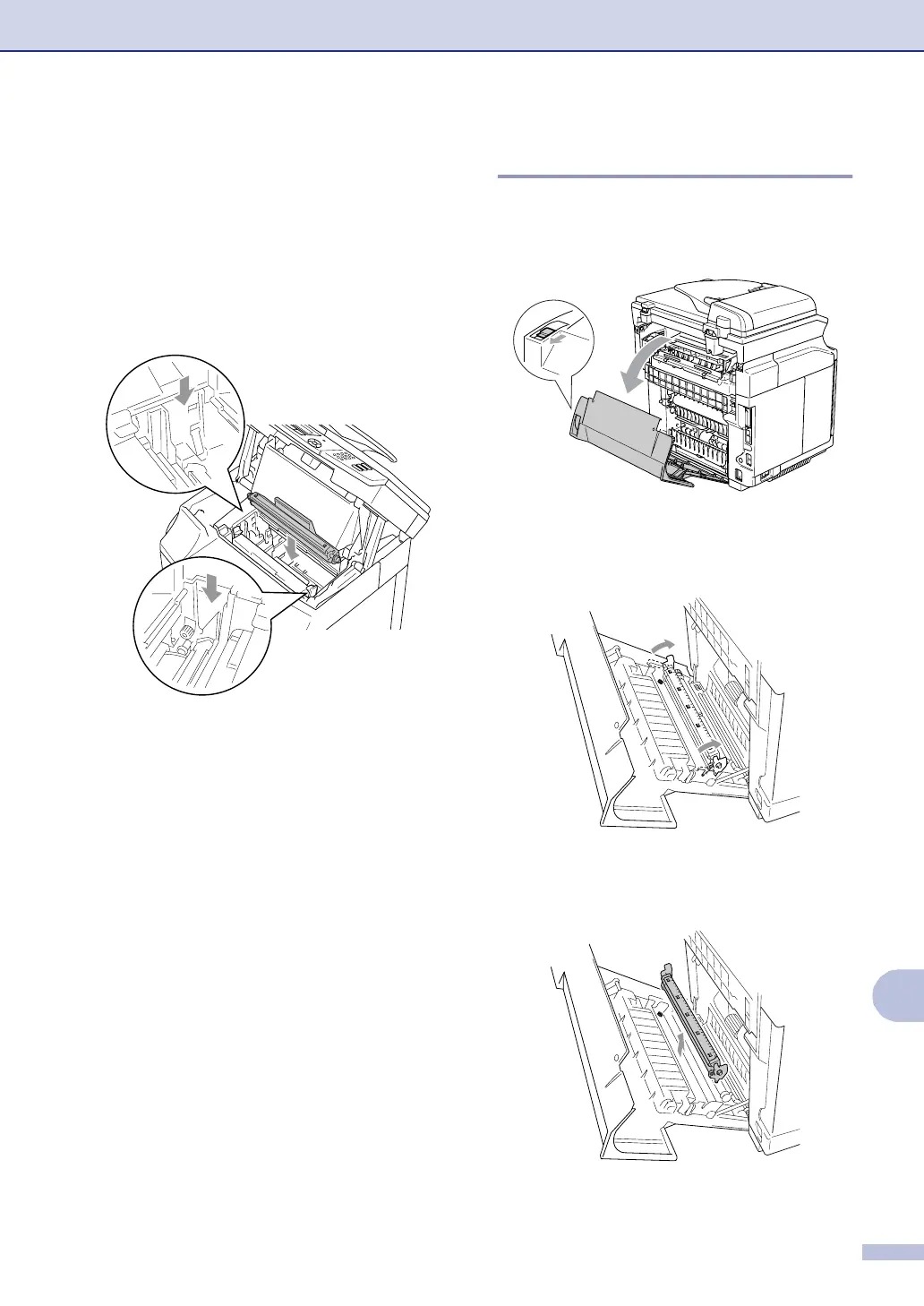

Put the new transfer belt cleaner into the
machine by gently placing the brass
bearings into the guides, and then
pushing the handle down until the
bearings click into place. Make sure the
transfer belt cleaner is free to move
slightly upwards (rotating slightly around
the bearings) in the housing after you
have installed it.
8
Put the transfer belt cleaner cover back
in, and then close the top cover.
9
Close the inside cover, and then close
the scanner unit.
0
Turn the machine’s power switch back
on.
Replacing the transfer roller
1 Turn off the machine’s power switch.
2
Open the back cover of the machine.
3
Release the transfer roller lock levers on
the right and left-hand sides, and then lift
the levers to release the transfer roller.
4
Take out the transfer roller by gently
pulling the right-hand side up and sliding
the transfer roller to the right.
