Brother MFC-L2700D Service Manual

3-8
Confidential

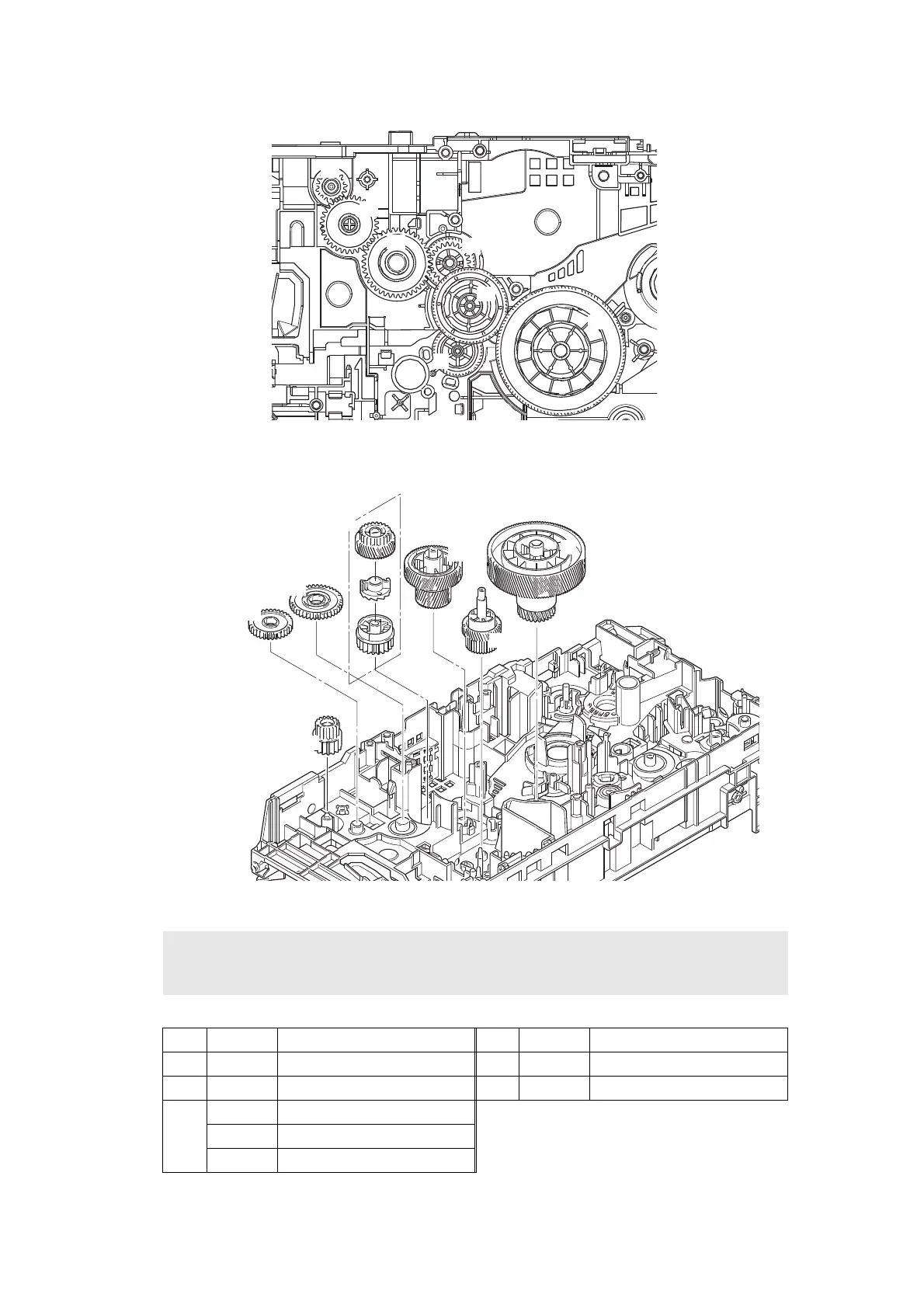

<Layout view>
Fig. 3-7
<Development view>
Fig. 3-8
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
7 LY9006 Ejector gear 33 11 LY9005 Ejector gear 40
8 LY9008 DX gear 44/32 12 LY9007 Ejector gear 17/16
9 LY9026 Drum gear 115L/26L 13 LY9029 Fuser gear 67R/40R
10
LY9030 Fuser gear oneway 45L/23
LY9032 Fuser clutch
LY9031 Fuser gear oneway
21
12
7
11
10
13
8
9
12
7
11
10
13
8
9

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
