Brother MFC-L2700D - Panel PCB ASSY

To Next Page

To Previous Page

3-62

Confidential

9.15.2 Panel PCB ASSY

(1) Release the hooks to remove the panel PCB ASSY from the panel unit.

(2) Reverse the panel PCB ASSY. Release the locks to disconnect the LCD flat cable from

the panel PCB ASSY.

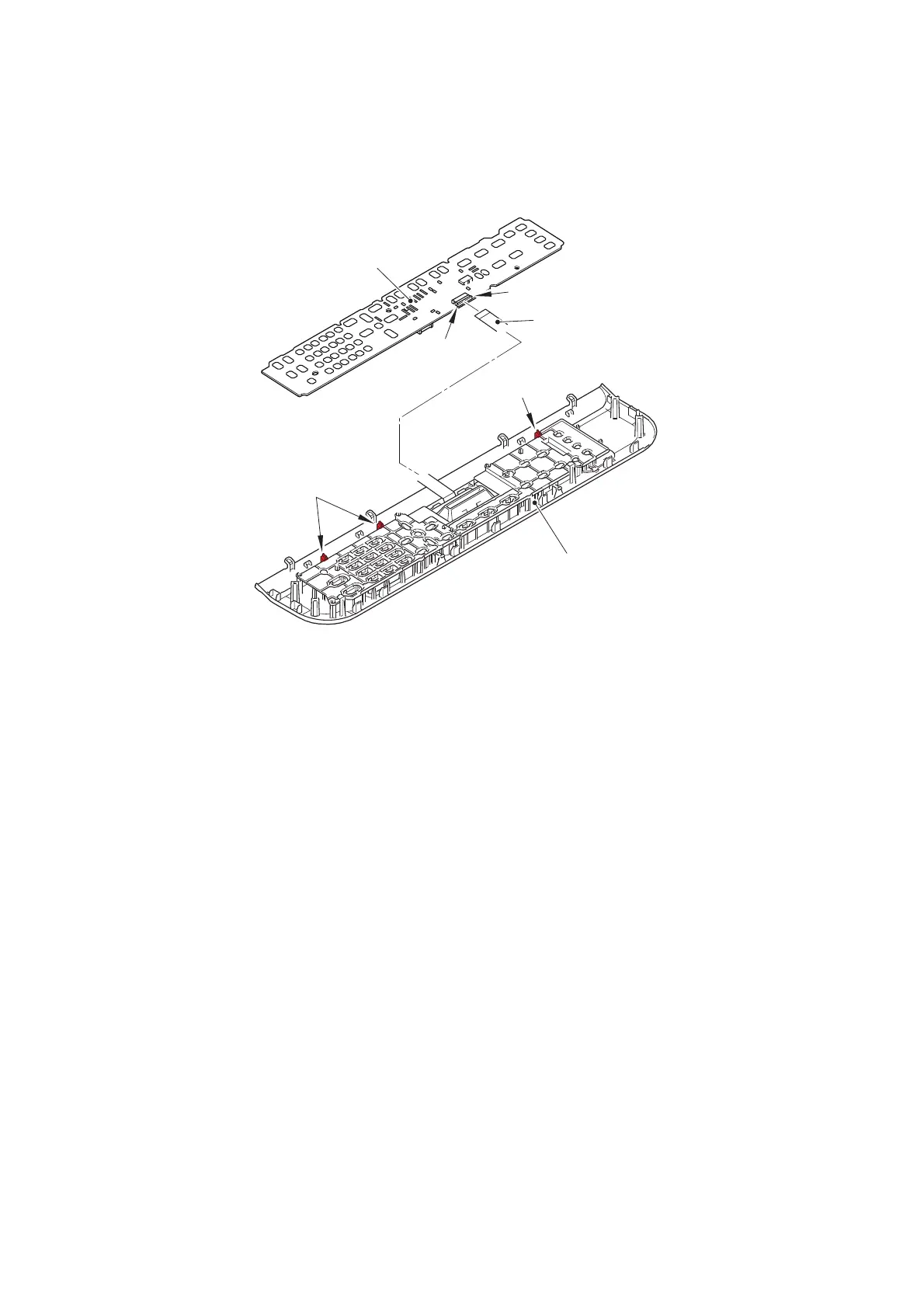

Fig. 3-57

Panel unit

LCD flat cable

Hooks

Hook

Panel PCB ASSY

Lock
