Brother MFC-L2700D Service Manual

3-31
Confidential

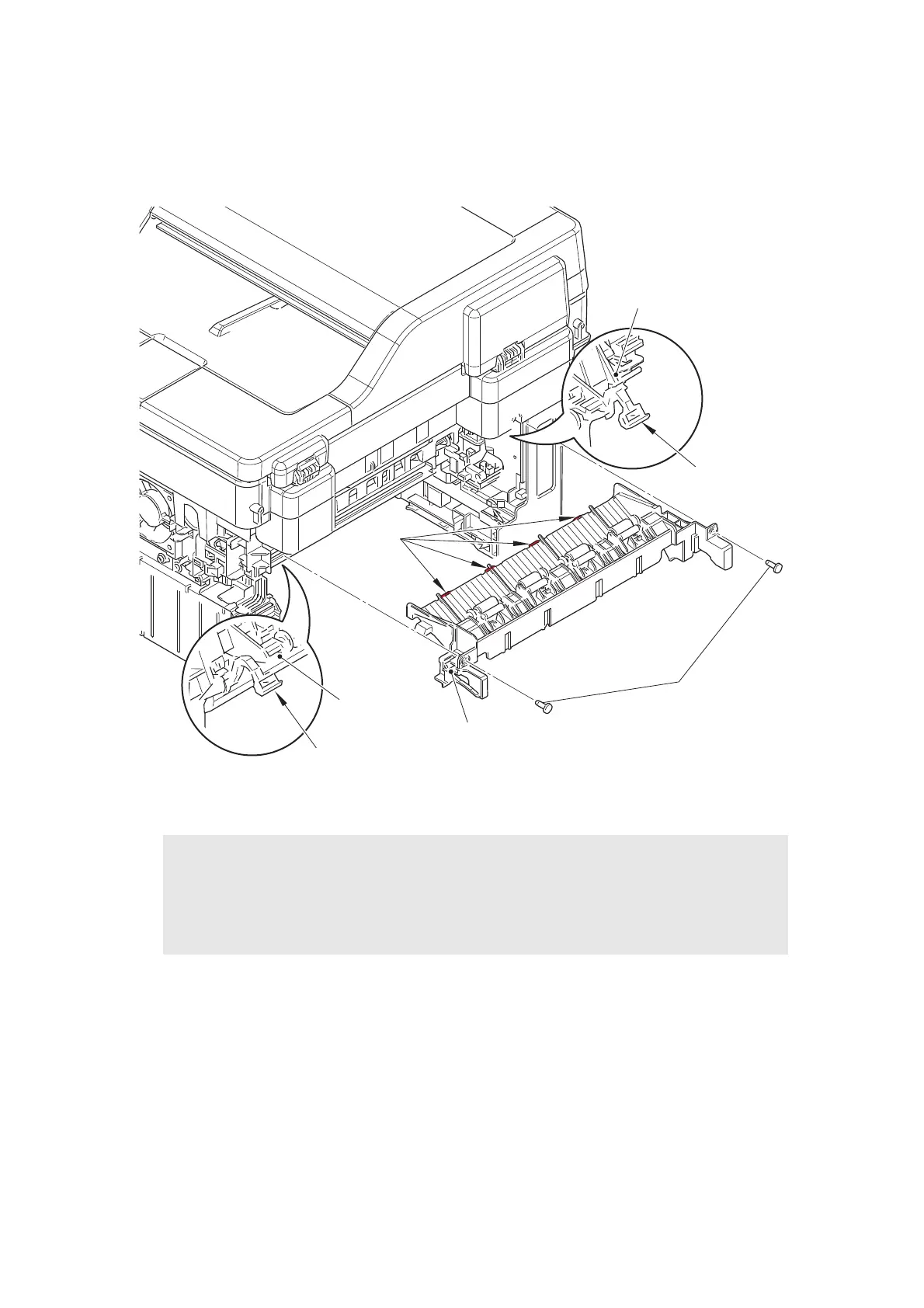

9.8 Inner Chute ASSY
(1) Pull down the green envelope levers on both sides of the fuser unit.
(2) Remove the two taptite bind B M4x12 screws, and remove the inner chute ASSY.
Fig. 3-17
Assembling Note:
• When attaching the inner chute ASSY, engage the hooks on the inner chute ASSY with
the positioning holes on the joint cover ASSY.
• After assembling the inner chute ASSY, pull up the green envelope levers on both sides
of the fuser unit.
Fuser unit
Hooks
Green
envelope lever
Taptite bind B
M4x12
Inner chute ASSY
Green envelope lever
Fuser unit

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
