Brother MFC-L2700D Service Manual

3-60
Confidential
9.14.3 Touch Panel ASSY
(1) Remove the two taptite cup B M3x10 screws to remove the panel key PCB presser from
the panel unit.
(2) Disconnect the touch panel flat cable from the key PCB ASSY.
(3) Remove the touch panel plate and the LCD frame sheet from the panel unit.
(4) Remove the touch panel ASSY from the panel unit.

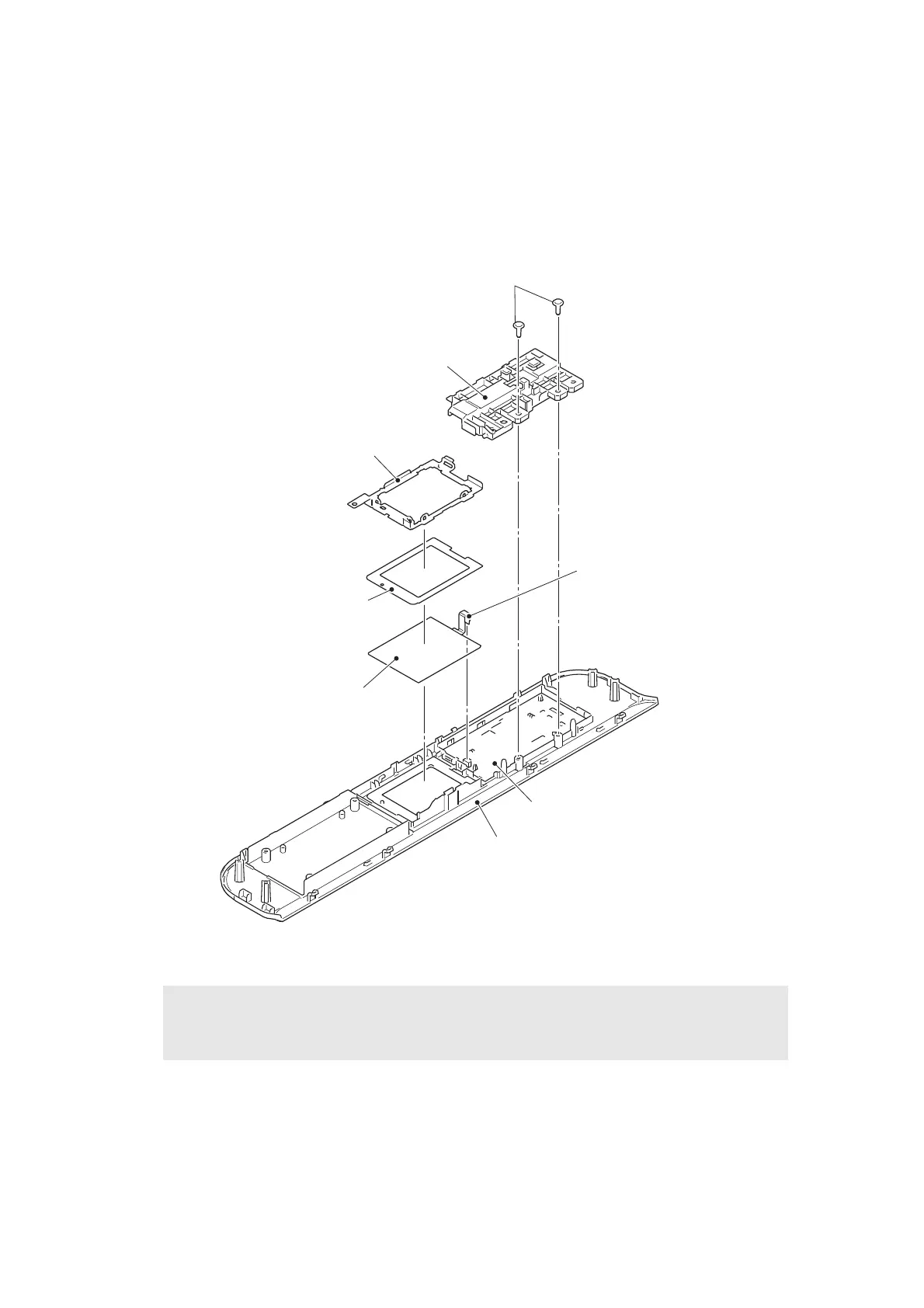

Fig. 3-55
Assembling Note:
• If you replaced the touch panel ASSY, refer to “4. IF YOU REPLACE THE PANEL UNIT
OR PANEL PCB UNIT” in Chapter 4 to configure settings.
Panel unit
Taptite cup B M3x10
Panel key PCB presser
Touch panel plate
Touch panel ASSY
Key PCB ASSY
Touch panel flat cable
LCD frame sheet

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
