Brother MFC-L2700D Service Manual

3-89
Confidential
9.31 New Toner Sensor PCB ASSY
(1) Release the new toner sensor PCB flat cable from the securing fixture.
(2) Release the hook, and remove the new toner sensor PCB ASSY. Disconnect the paper
feed sensor harness ASSY from the new toner sensor PCB ASSY, and release it from
the securing fixtures.

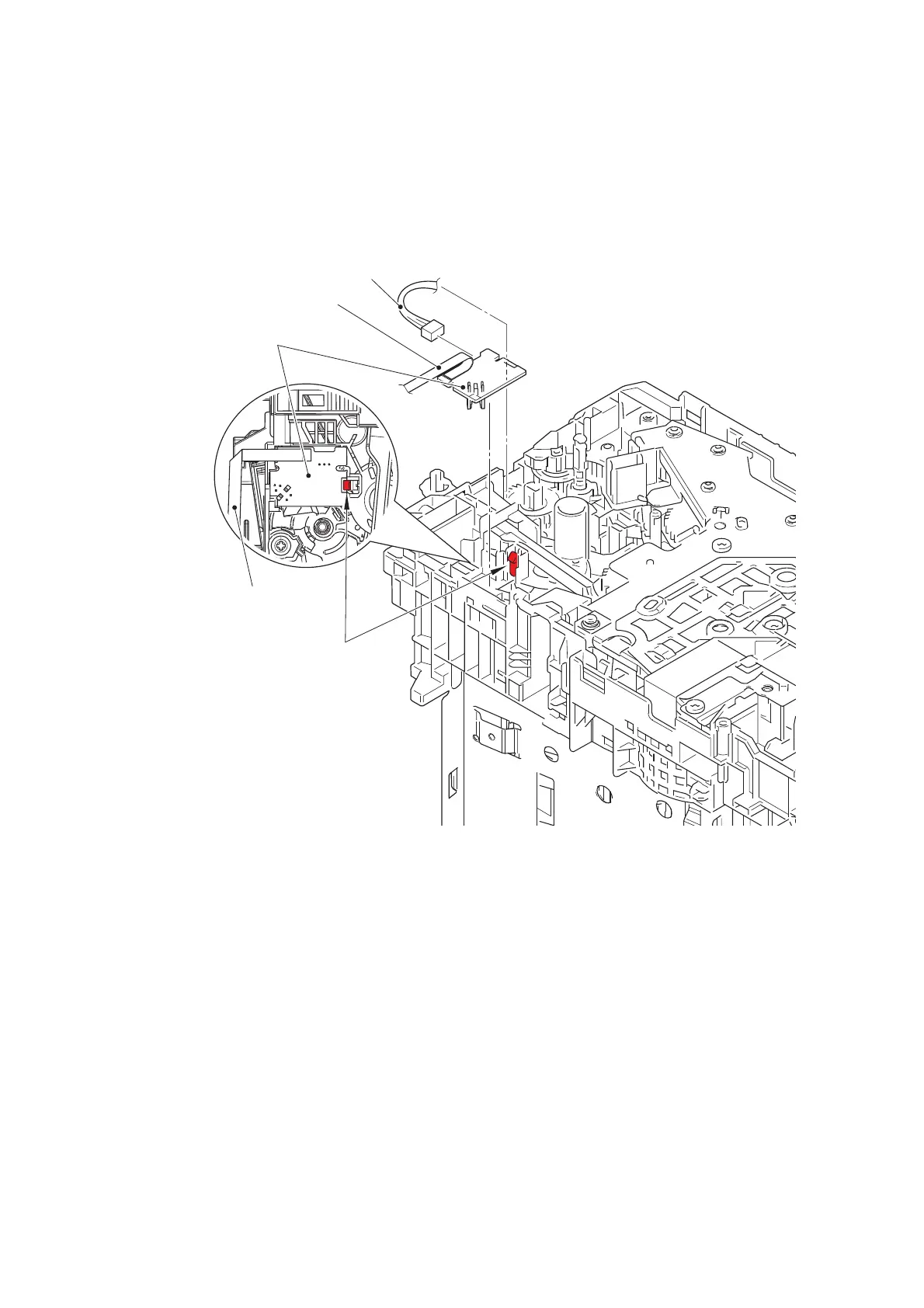

Fig. 3-93
Harness routing: Refer to “3. Left side of the machine”, “5. New toner sensor PCB ASSY”.
New toner sensor PCB ASSY
Hook
Paper feed sensor harness ASSY
<Front side>
<Upper side of frame L>
New toner sensor PCB flat cable
New toner sensor PCB flat cable

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
