Brother MFC-L2700D Service Manual

3-59
Confidential
9.14.2 Panel PCB ASSY, LCD
(1) Disconnect the key PCB flat cable from the panel PCB ASSY, and release it from the
securing fixtures.
(2) Release the hook to remove the LCD pressure plate from the panel unit.
(3) Remove the four taptite cup B M3x10 screws to remove the shield plate cover from the
panel unit.
(4) Remove the panel PCB ASSY. Release the lock to disconnect the LCD flat cable from
the panel PCB ASSY.
(5) Remove the shield plate base from the panel unit.
(6) Remove the LCD from the panel unit.

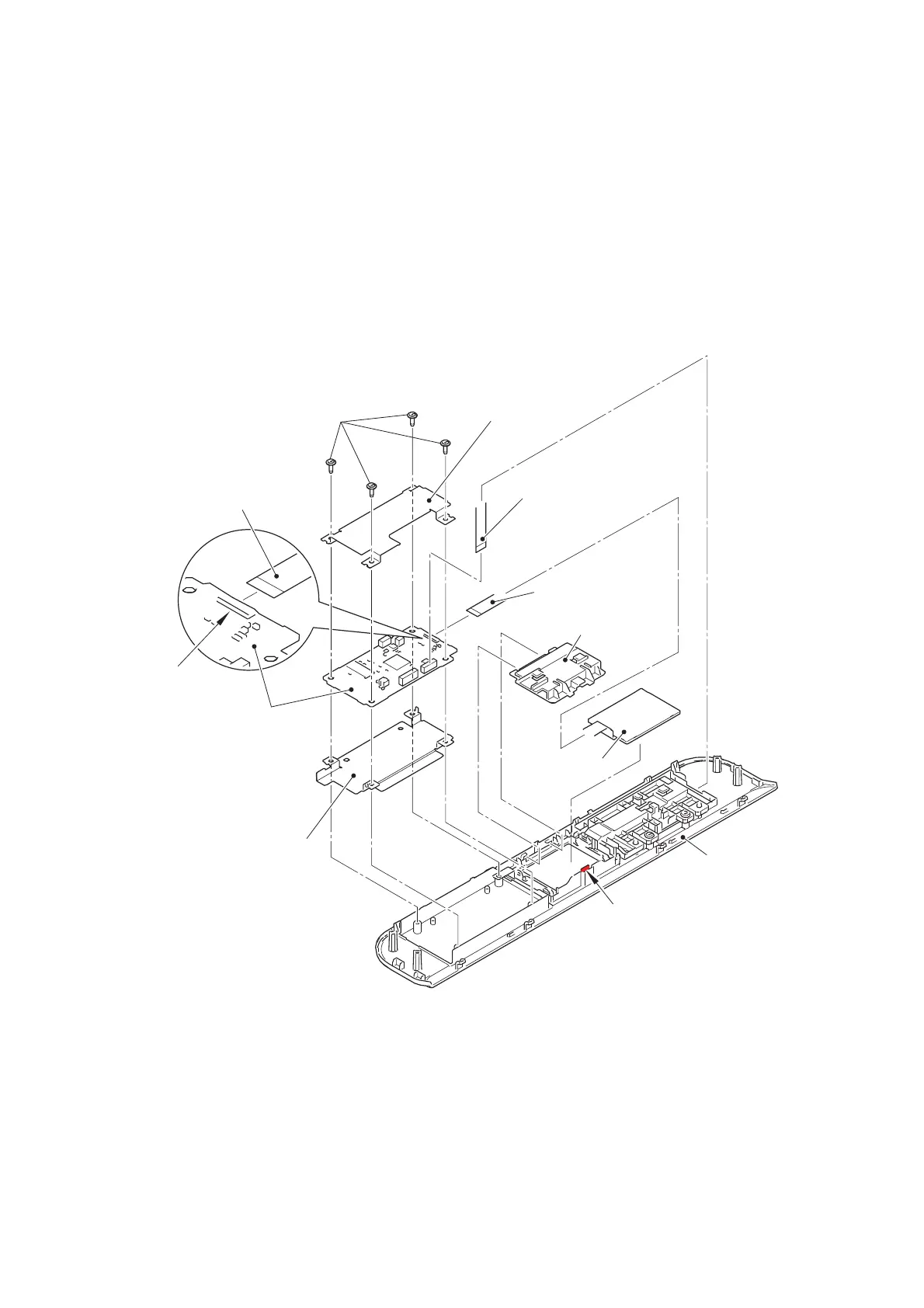

Fig. 3-54
Harness routing: Refer to “10. Panel unit (Touch panel models only)”.
Shield plate cover
Taptite cup B M3x10
Key PCB flat cable
LCD flat cable
LCD pressure plate
LCD flat cable
Panel PCB ASSY
Shield plate base
LCD
Hook
Lock
Panel unit
