Brother MFC-L2700D Service Manual

5-12
Confidential
1.3.6 Check LCD operation (function code: 12)
<Function>
This function is used to check that the LCD on the control panel is operating normally.
<Operating Procedure>
 LCD

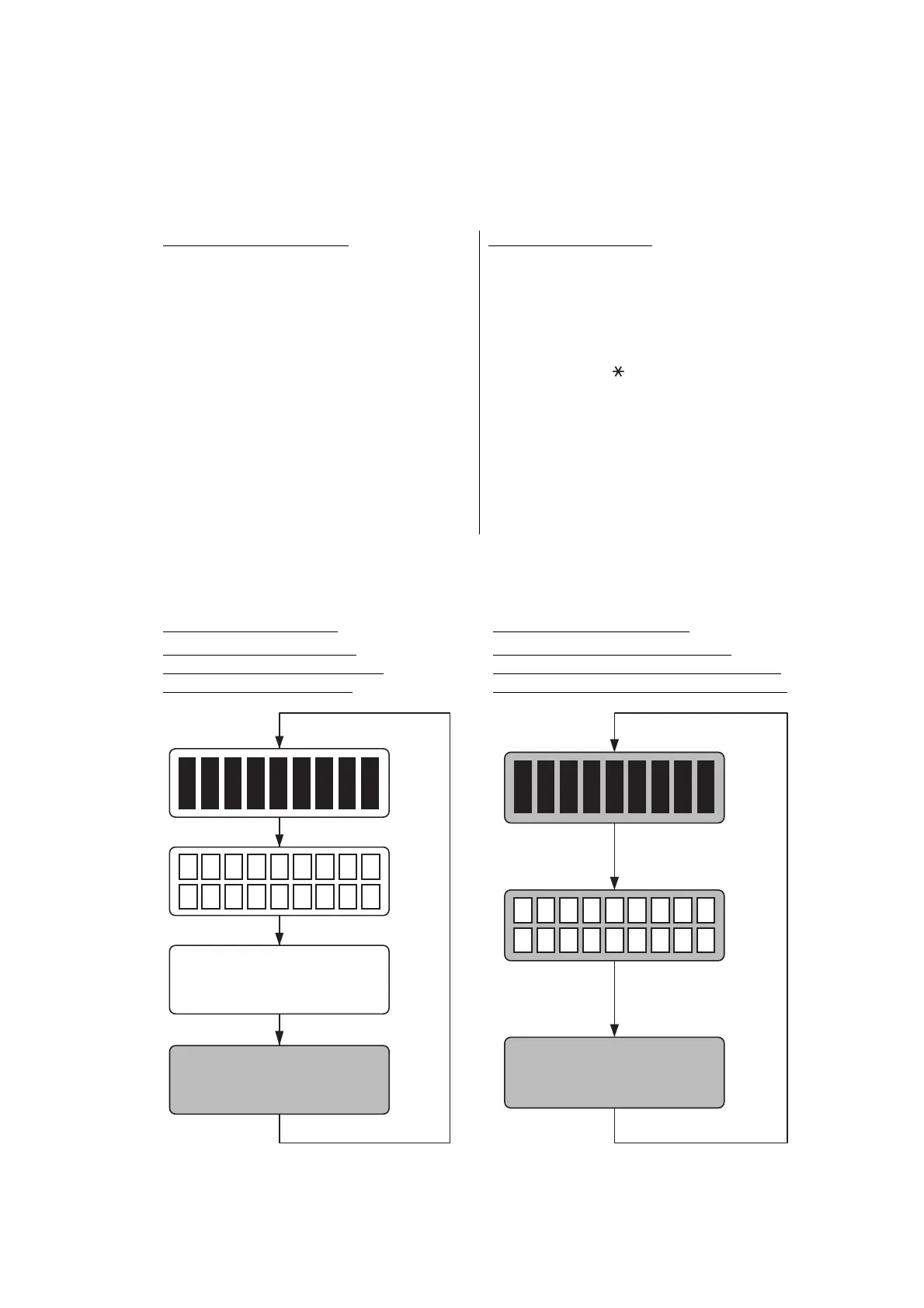

<Monochrome LCD models>
For models with backlight For models without backlight
(DCP-7080/7080D/7180DN/ (DCP-L2500D/L2520D/L2520DW,
L2540DN/L2540DW/L2541DW, MFC-L2680W/L2700D/L2701D/L2700DN/
MFC-7380/7480D/7880DN) L2700DW/L2701DW/L2703DW/L2705DW)
Fig. 5-4
For models without keypad
(1) Press the [▲] or [▼] key in the initial
state of maintenance mode to display
"MAINTENANCE 12" on the LCD, and
press the [OK] key.
(2) Each press of the [Start] key cycles
through the LCD display as shown in the
figure below.
(3) When the [Stop] key is pressed, the
machine returns to the initial state of
maintenance mode, regardless of the
display status.
For models with keypad
(1) Press the [1], and then the [2] key in the
initial state of maintenance mode.
(2) Each press of the [#] or [Start] key
cycles through the LCD display as
shown in the figure below. Also,
pressing the [ ] key returns the display
to the previous state. Pressing the [#]
key at the last display returns the display
to Display 1.
(3) When the [X] or [Stop] key is pressed,
the machine returns to the initial state of
maintenance mode, regardless of the
display status.
<Display 1>
<Display 2>
<Display 3>
<Display 1>
<Display 2>
<Display 4>
<Display 3>

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
