Brother MFC-L2700D Service Manual

3-71
Confidential
9.18 Modem PCB ASSY
(1) Release the hook to remove the speaker cover.
(2) Remove the two screw pan (S/P washer) M3.5x6 screws, and release the modem FG
harness LVPS from the securing fixtures.

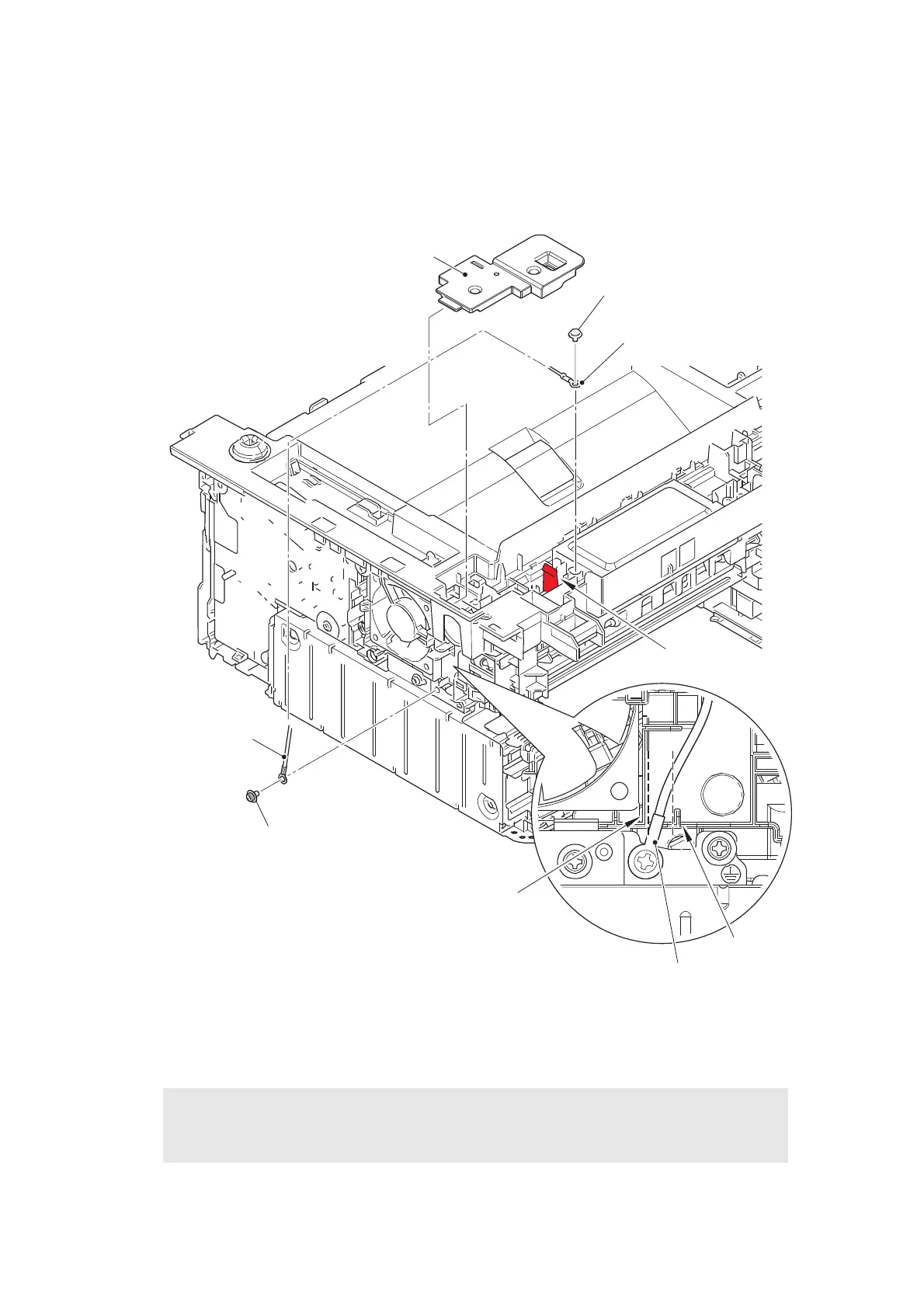

Fig. 3-68
Harness routing: Refer to “7. Speaker unit, Modem (LVPS side)”.
Assembling Note:
• Make sure that the terminal of modem FG harness LVPS is located between the rib A
and rib B as shown in the figure above.
Screw pan (S/P washer) M3.5x6
Modem FG harness LVPS
Speaker cover
Hook
Screw pan (S/P washer) M3.5x6
Modem FG harness LVPS
Rib A
Rib B
Terminal of Modem FG harness LVPS

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
