Brother MFC-L2700D Service Manual

3-85
Confidential

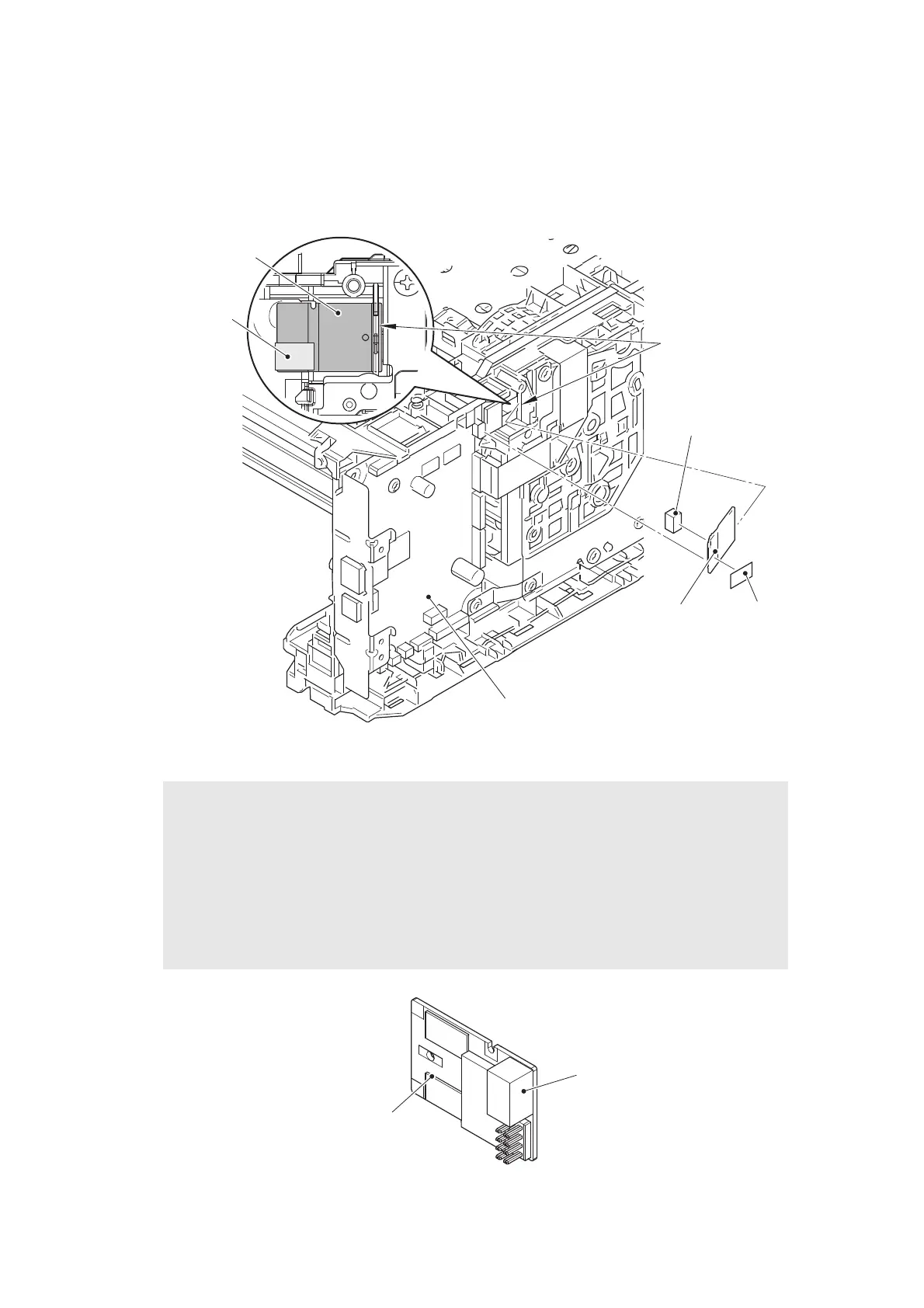

9.27 Wireless LAN PCB (Wireless network models only)
(1) Remove the tape on the wireless LAN PCB, and disconnect the wireless LAN PCB from
the main PCB ASSY.
(2) Remove the gasket from the wireless LAN PCB.
Fig. 3-86
Fig. 3-87
Assembling Note:
• When connecting the wireless LAN PCB, insert the wireless LAN PCB to the hole on
the machine, and connect the wireless LAN PCB to the main PCB ASSY.
• When assembling the wireless LAN PCB, remove the all tapes on the wireless LAN
PCB. Also, do not attach a tape. These tapes are for securing the wireless LAN PCB
during the shipping, not required for usage. These tapes are special tape and using
other tapes may cause short circuit between terminals.
• Attach the gasket to the location shown in the figure below.
Hole
Gasket
Wireless LAN PCB
Main PCB ASSY
Wireless LAN PCB
Tape
Tape
Gasket
Wireless LAN PCB

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
