Brother MFC-L2700D Service Manual

3-7
Confidential

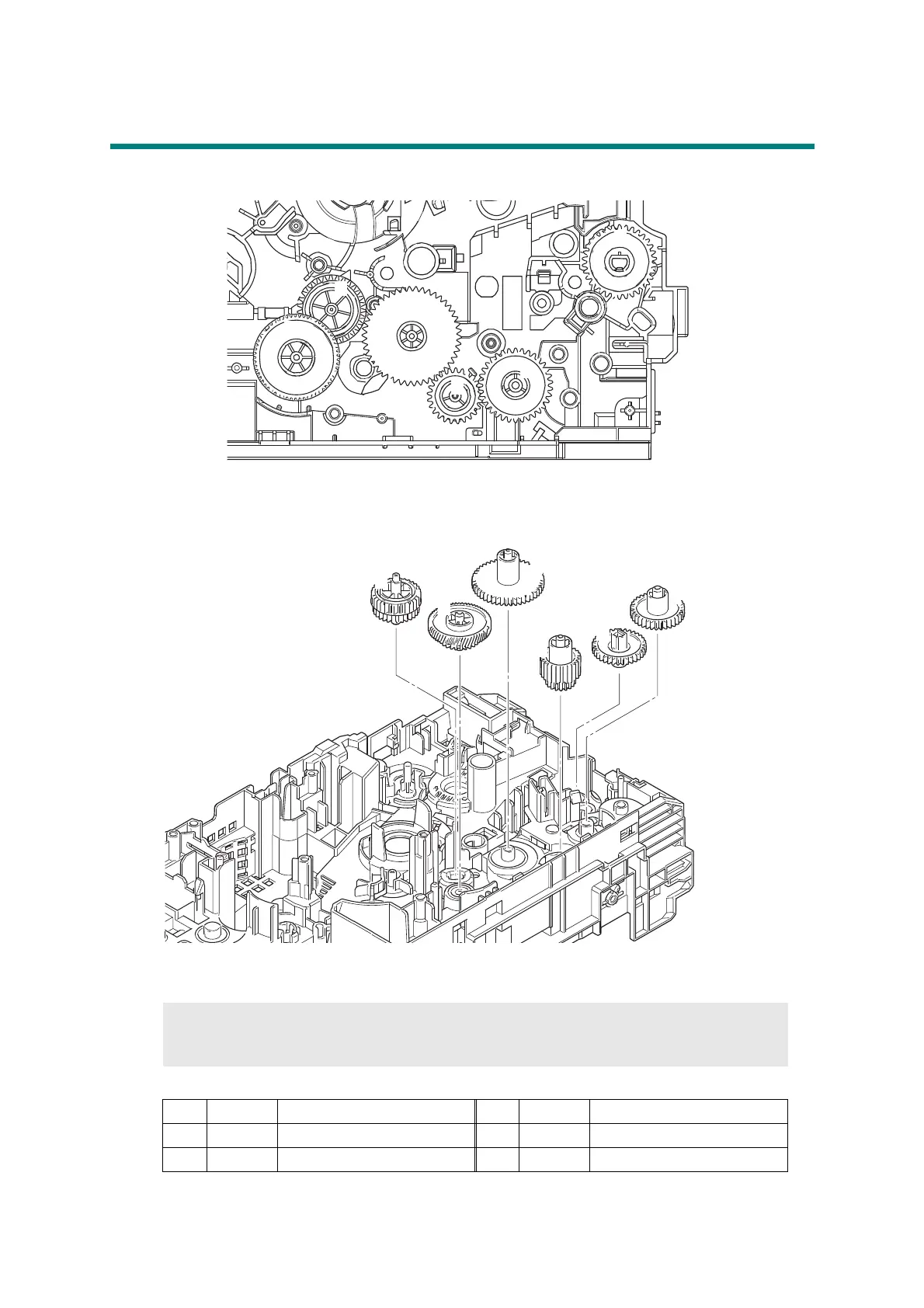

6. OVERVIEW OF GEARS
<Layout view>
Fig. 3-5
<Development view>
Fig. 3-6
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
1 LY9021 PF gear 61R/26 4 LY9025 PF gear 34
2 LY9022 PF gear 31/29 5 LY9024 PF gear 25/18
3 LY9023 PF gear 46 6 LY9088 Feeder gear 34
1
2
3
5
4
6
1
2
3
5
4
6

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
