Brother MFC-L2700D Service Manual

3-97
Confidential
9.36 Registration Front/Rear Actuator Holder ASSY
(1) Release the hook part of the under R FG wire from the LVPS shield plate.
(2) Remove the taptite cup S M3x8 SR screw, and remove the laser R FG plate.
(3) Remove the taptite cup S M3x8 SR screw and the taptite bind B M4x12 screw. Pull out
the right side of the LVPS shield plate in the direction of the arrow A to remove it from
the pin. Then pull it out in the direction of the arrow B to remove it from the machine.

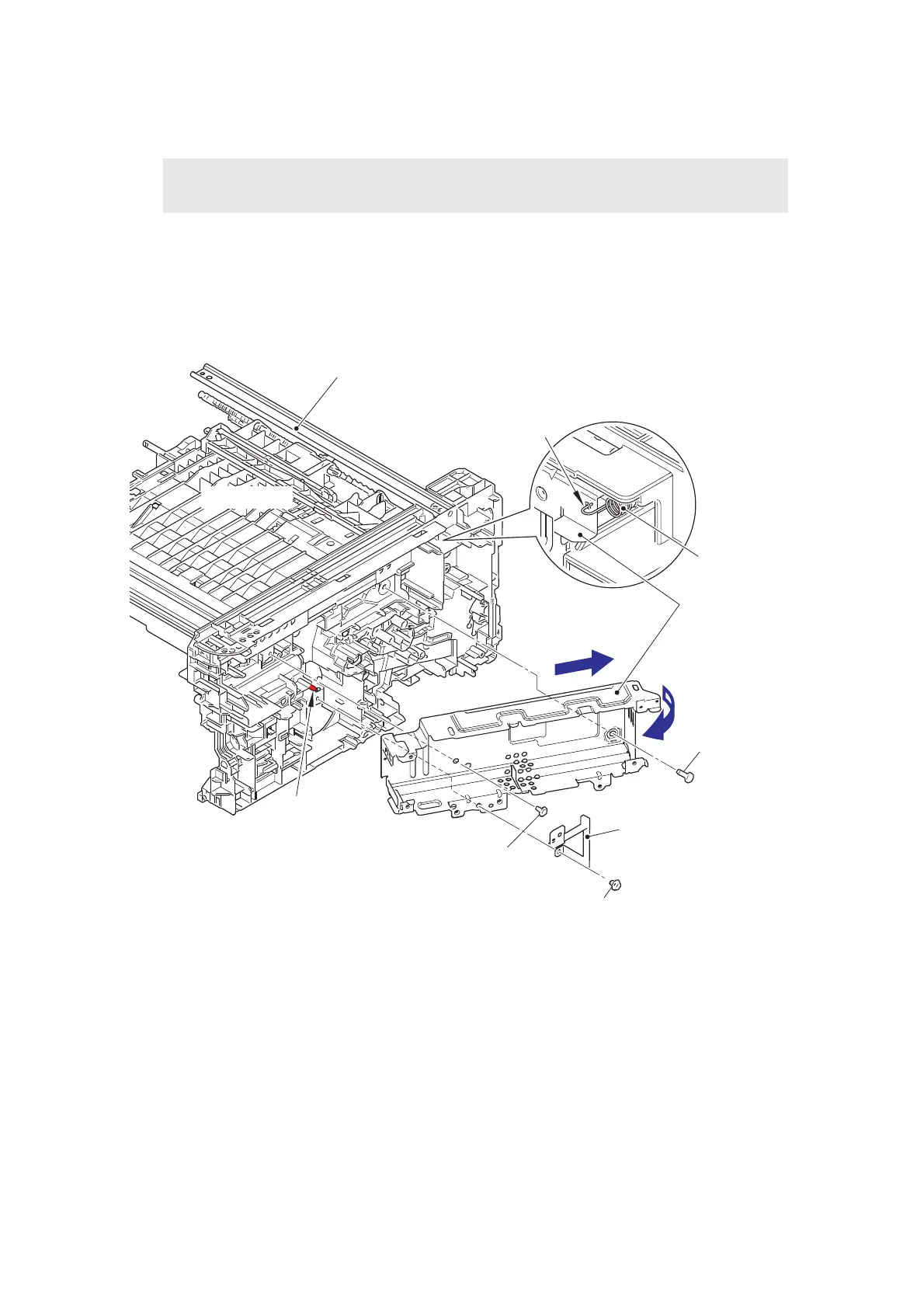

Fig. 3-103
Note:
• As the under bar is easy to bend, be careful to handle it.
Under R FG wire
Taptite cup S M3x8 SR
Taptite cup S M3x8 SR
LVPS shield plate
Taptite bind B M4x12
Laser R FG plate
Hook part
<Back side>
<Rear view of frame R>
Pin
A
B
Under bar
<Bottom side>

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
