Brother MFC-L2700D Service Manual

3-87
Confidential

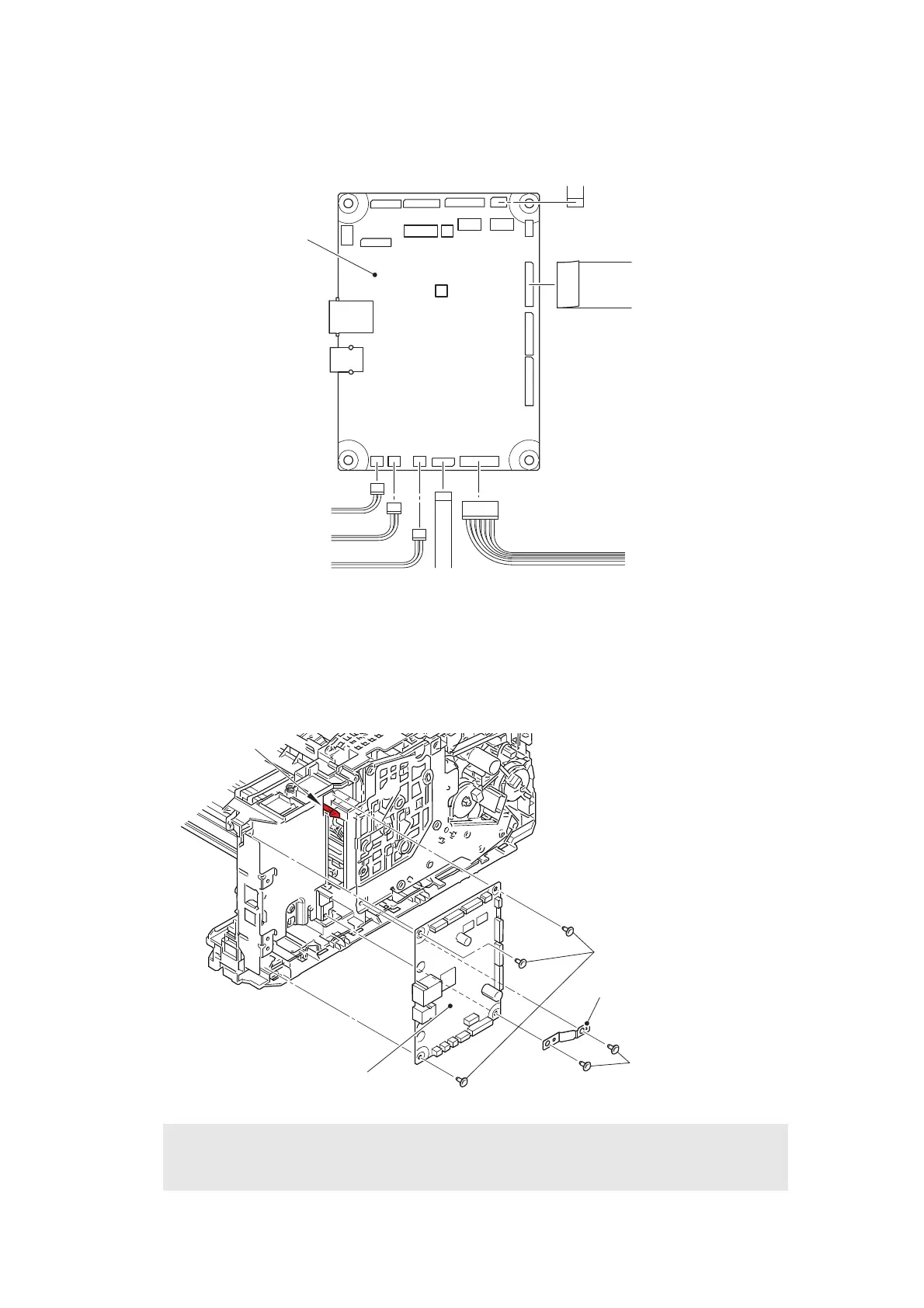

9.29 Main PCB ASSY
(1) Disconnect all harnesses and flat cables from the main PCB ASSY.
Fig. 3-89
Harness routing: Refer to “3. Left side of the machine”.
(2) Remove the two taptite cup S M3x8 SR screws, and remove the main PCB FG plate 1.
(3) Remove the three taptite cup S M3x8 SR screws. Release the hook, and remove the
main PCB ASSY.
Fig. 3-90
Assembling Note:
• After the replacement, refer to “1. IF YOU REPLACE THE MAIN PCB ASSY” in
Chapter 4 to enter the adjusted value of the main PCB ASSY.
LVPS harness (WH, BR)
Eject sensor PCB flat cable
Registration clutch harness (WH)
T1 clutch harness (BL)
Main motor flat cable
Main PCB ASSY
Internal temperature
sensor harness (GR)
New toner sensor PCB flat cable
Taptite cup S M3x8 SR
Hook
Taptite cup S M3x8 SR
Main PCB ASSY
Main PCB FG plate 1
<Back side>

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
