Brother MFC-L2700D Service Manual

2-5
Confidential

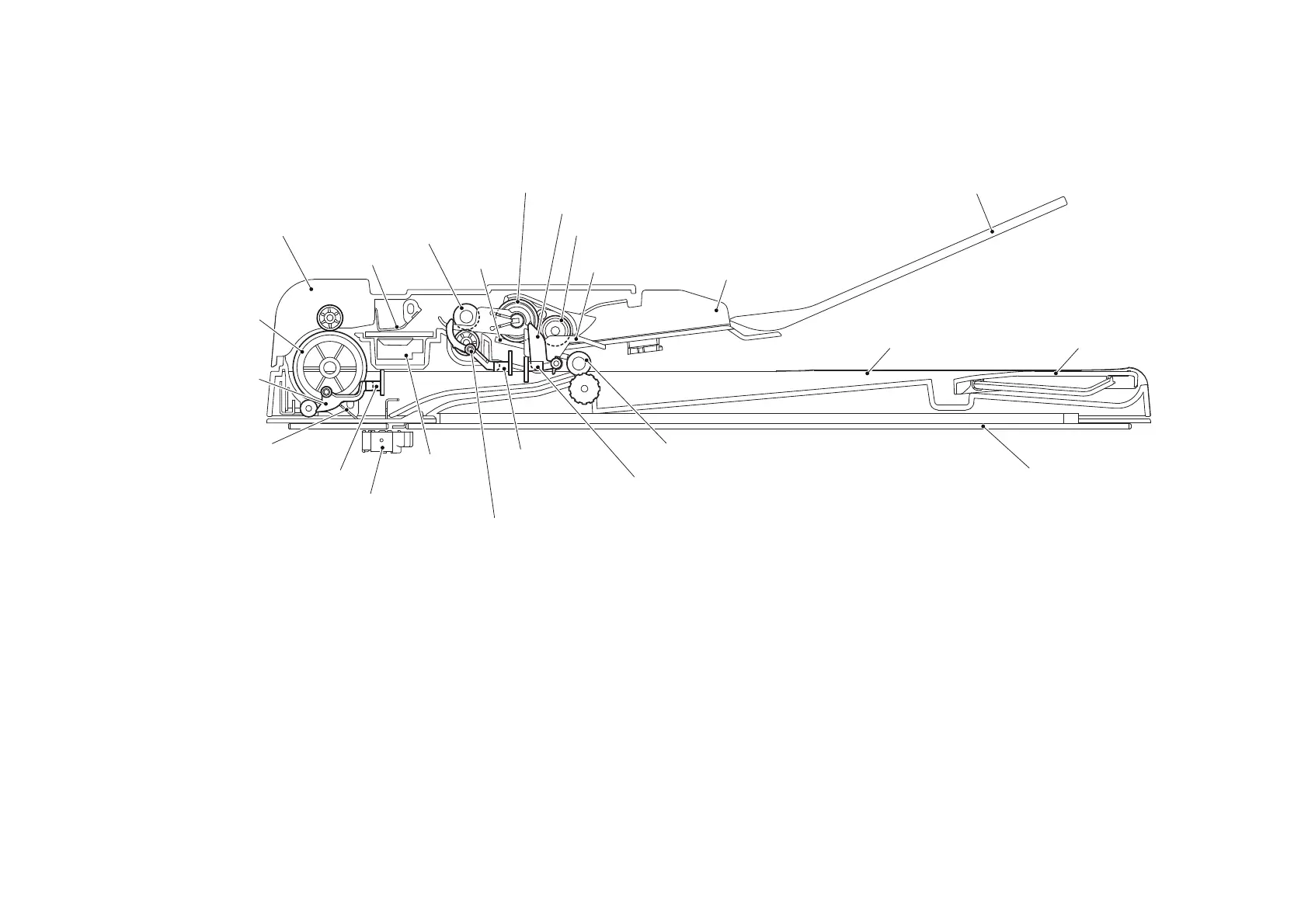

2.1.2 Scanner part
Fig. 2-3
Second side document scanning
position actuator
ADF cover ASSY
Document feed
roller ASSY 1
First side document
scanning position
actuator
First side white bar
First side document scanning
position sensor
First side CIS unit
Second side
CIS unit
Second side
document scanning
position sensor
Document detection sensor
Document ejection roller ASSY
Second side white bar
Document feed
roller ASSY 2
ADF
separation
pad
Document separate roller
Document detection actuator
Document pick-up roller
ADF cover actuator
Document guide
ADF document support
Scanner glass
Document cover ADF document output support flap

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
