Brother MFC-L2700D Service Manual

3-79
Confidential
9.23 Fan
(1) Disconnect the fan harness from the high-voltage power supply PCB ASSY, and release
it from the securing fixtures.
(2) Release each hook to remove the fan, and pull out the fan harness from the hole.

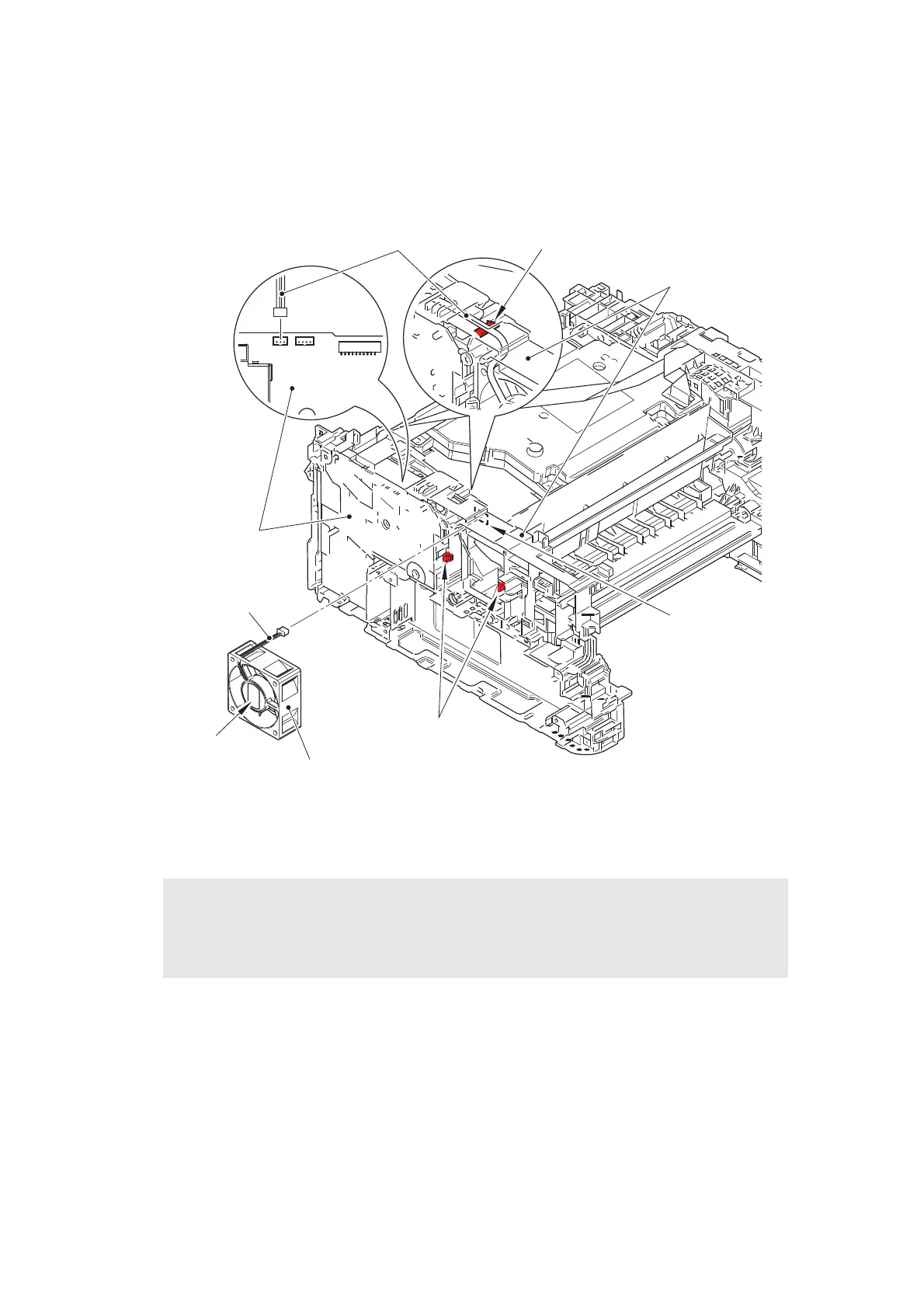

Fig. 3-78
Harness routing: Refer to “4. Rear side of the machine”.
Assembling Note:
• When assembling the fan, insert the fan harness into the hole and slip it onto the guide
of the main frame R ASSY to make sure that the fan harness is not caught.
• Attach the fan so that the surface with the label faces out.
High-voltage power
supply PCB ASSY
Label
Fan harness
Hooks
Fan
Hole
Guide
Fan harness
<Back side>
Main frame R ASSY

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
