Brother MFC-L2700D Service Manual

3-95
Confidential
9.35 Eject Sensor PCB ASSY
(1) Remove the taptite cup S M3x8 SR screw and the screw pan (S/P washer) M3x12DB
screw. Lift the upper side of the main shield plate up to remove it from the pin, and pull
out the main shield plate in the direction of the arrow to remove it from the rib of the main
frame L ASSY.

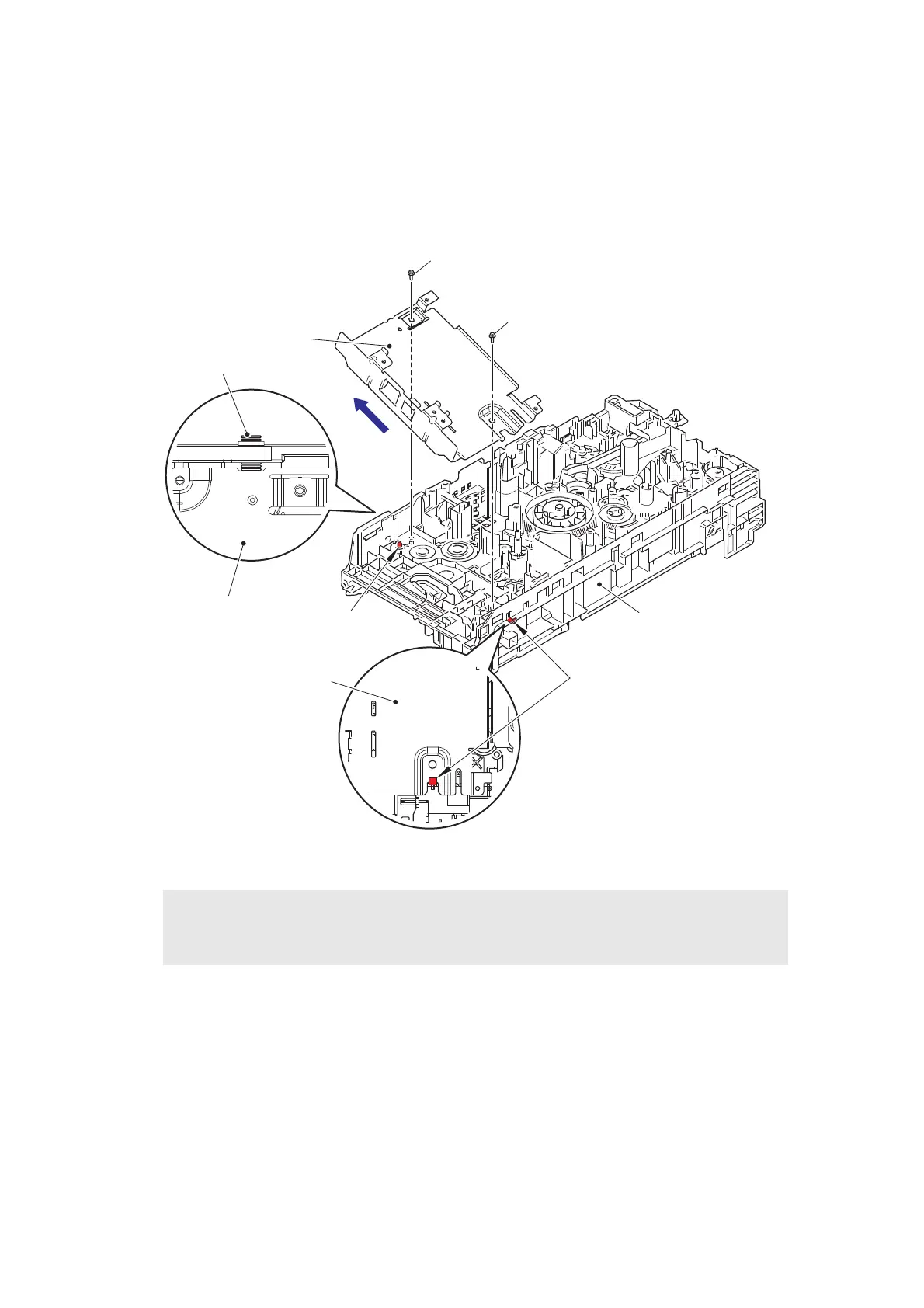

Fig. 3-101
Assembling Note:
• When assembling the main shield plate, check that the main PCB ground spring is not
inclined. Attach it correctly as shown in the figure above.
Screw pan (S/P washer) M3x12DB
Main shield plate
Taptite cup S M3x8 SR
Main frame L ASSY
Rib
Pin
Main shield plate
Main PCB ground spring
Main shield plate

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
