Brother MFC-L2700D Service Manual

3-39
Confidential

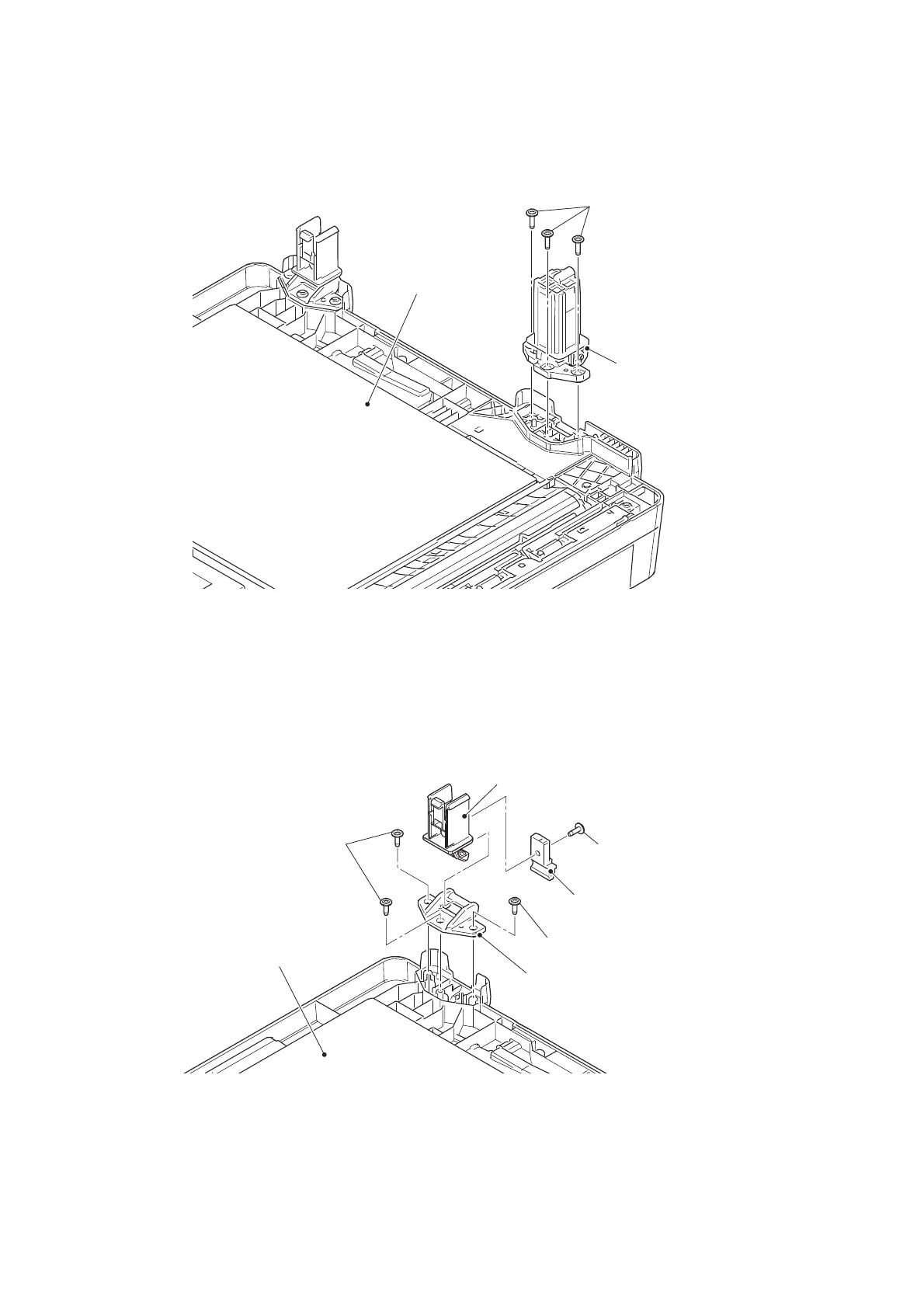

9.12.2 Hinge ASSY L, Hinge R, Hinge R Support, Hinge Arm R
(1) Remove the three taptite cup S M3x12 screws to remove the hinge ASSY L from the
document scanner unit.
Fig. 3-27
(2) Remove the taptite cup B M3x10 screw to remove the hinge R support and the hinge R
from the hinge arm R.
(3) Remove the three taptite cup B M3x10 screws to remove the hinge arm R from the
document scanner unit.
Fig. 3-28
Hinge ASSY L
Taptite cup S M3x12
Document scanner unit
Hinge R
Taptite cup B M3x10
Taptite cup B M3x10
Hinge R support
Taptite cup B M3x10
Hinge arm R
Document scanner unit

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
