Brother MFC-L2700D Service Manual

2-10
Confidential

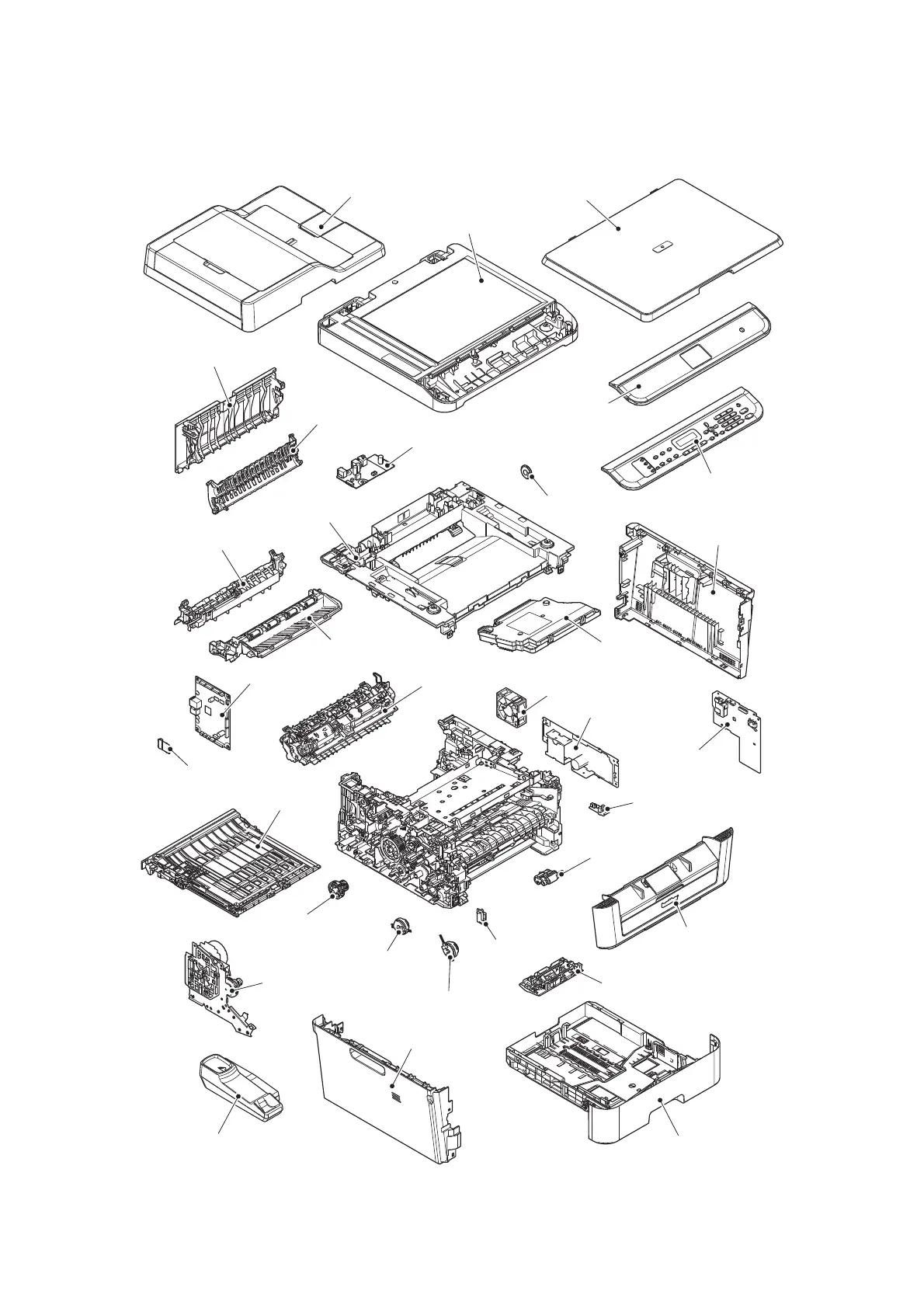

2.5 Main Components
Fig. 2-7
Paper tray
Duplex tray
Back cover
Outer chute ASSY
Front cover ASSY
Side cover R
Fuser cover
Inner chute ASSY
Handset holder ASSY
Fuser unit
Low-voltage power
supply PCB ASSY
Fan
High-voltage power
supply PCB ASSY
Laser unit
Wireless LAN PCB
Roller holder ASSY
Main PCB ASSY
T1 clutch
Registration clutch
New toner sensor
PCB ASSY
Motor drive sub ASSY
Fuser gear 67R/40R
Eject sensor PCB ASSY
Registration front/rear actuator
holder ASSY
ADF unit
(For models with ADF)
Document cover ASSY
(For models without ADF)
Document scanner unit
Panel unit
(For models with touch panel)
Panel unit
(For models without
touch panel)
Modem PCB ASSY
Speaker unit
Joint cover ASSY
Side cover L

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
