Brother MFC-L2700D Service Manual

3-43
Confidential
9.12.6 ADF Separation Pad Holder ASSY

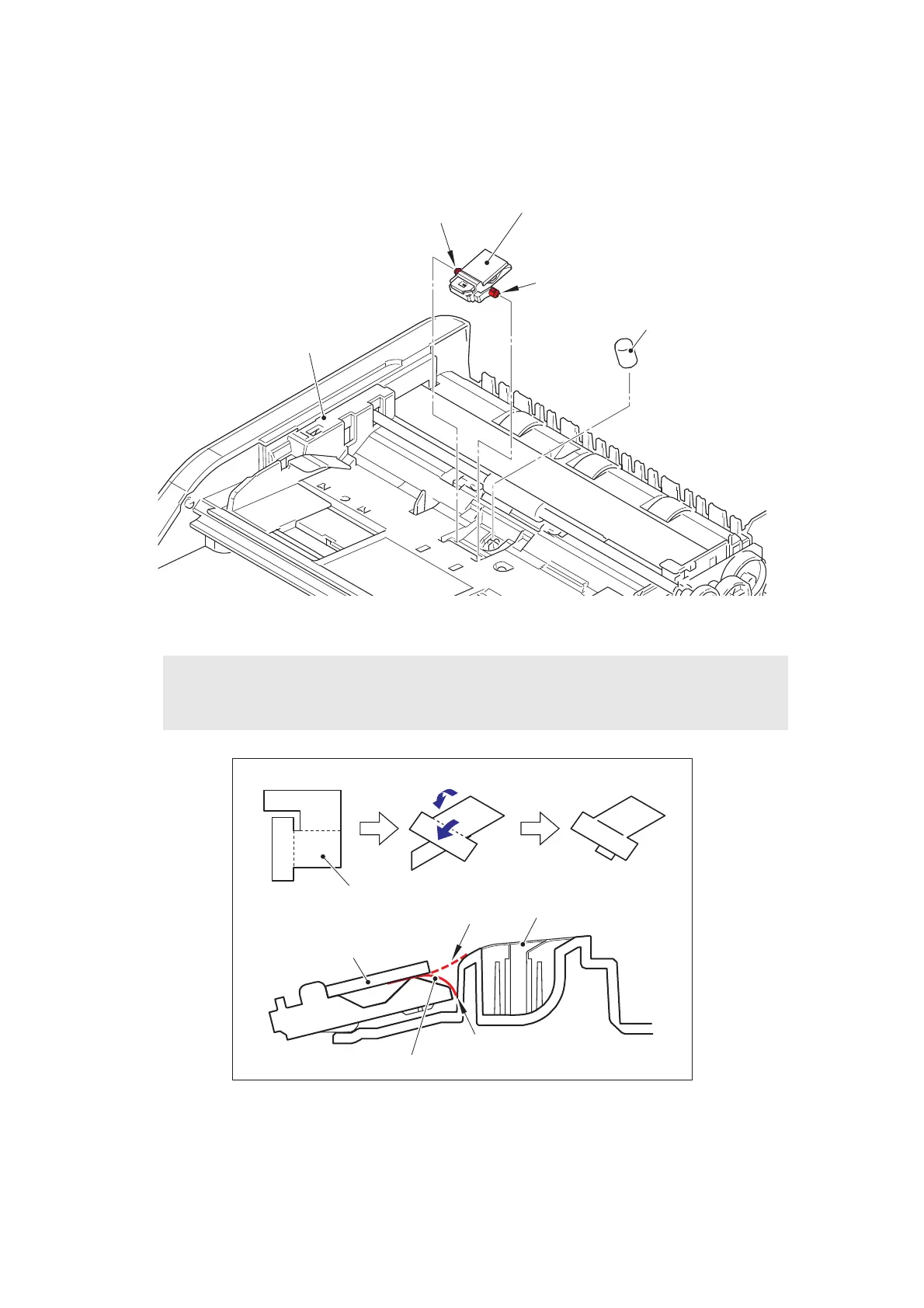

(1) Release the bosses to remove the ADF separation pad holder ASSY from the ADF unit.
(2) Remove the ADF spring from the ADF unit.
Fig. 3-32
Fig. 3-33
Assembling Note:
• Noise may be caused if the end of the support film is on the upper document chute.
Check that the end of the support film is positioned as shown in the figure below.
ADF spring
Boss
ADF separation pad holder ASSY
Boss
ADF unit
Support film
ADF separation
pad holder ASSY
Support film
OK
NG
Upper document chute
