Brother MFC-L2700D Service Manual

3-42
Confidential
9.12.5 Document Separate Roller ASSY
(1) Release the lock of the conductive bushing to remove the document separate roller
ASSY from the ADF unit.

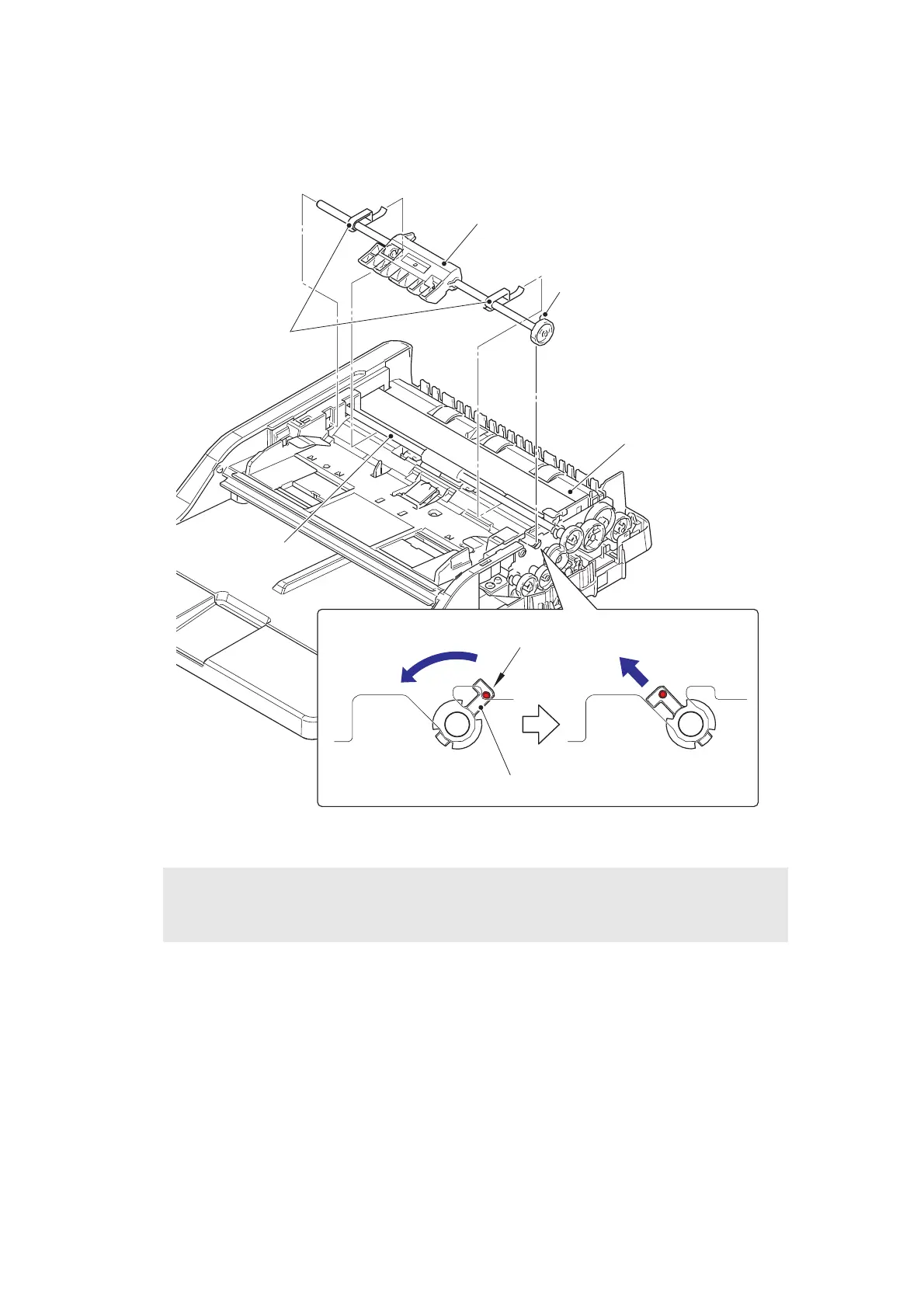

Fig. 3-31
Assembling Note:
• When attaching the document separate roller ASSY, make sure that the ADF flaps are
set under the document feed roller ASSY 2. (Duplex scanning models only)
Conductive bushing
Document separate roller ASSY
Conductive bushing
Lock
ADF unit
ADF flaps
Document feed
roller ASSY 2
