(2) Release the hook A, and remove the eject sensor PCB ASSY from the pin on the main
frame L ASSY.
(3) Release the back cover/duplex tray sensor harness from the guide on the main frame L
ASSY.
(4) Release the hooks B, and remove the back cover/duplex tray sensor from the main
frame L ASSY.

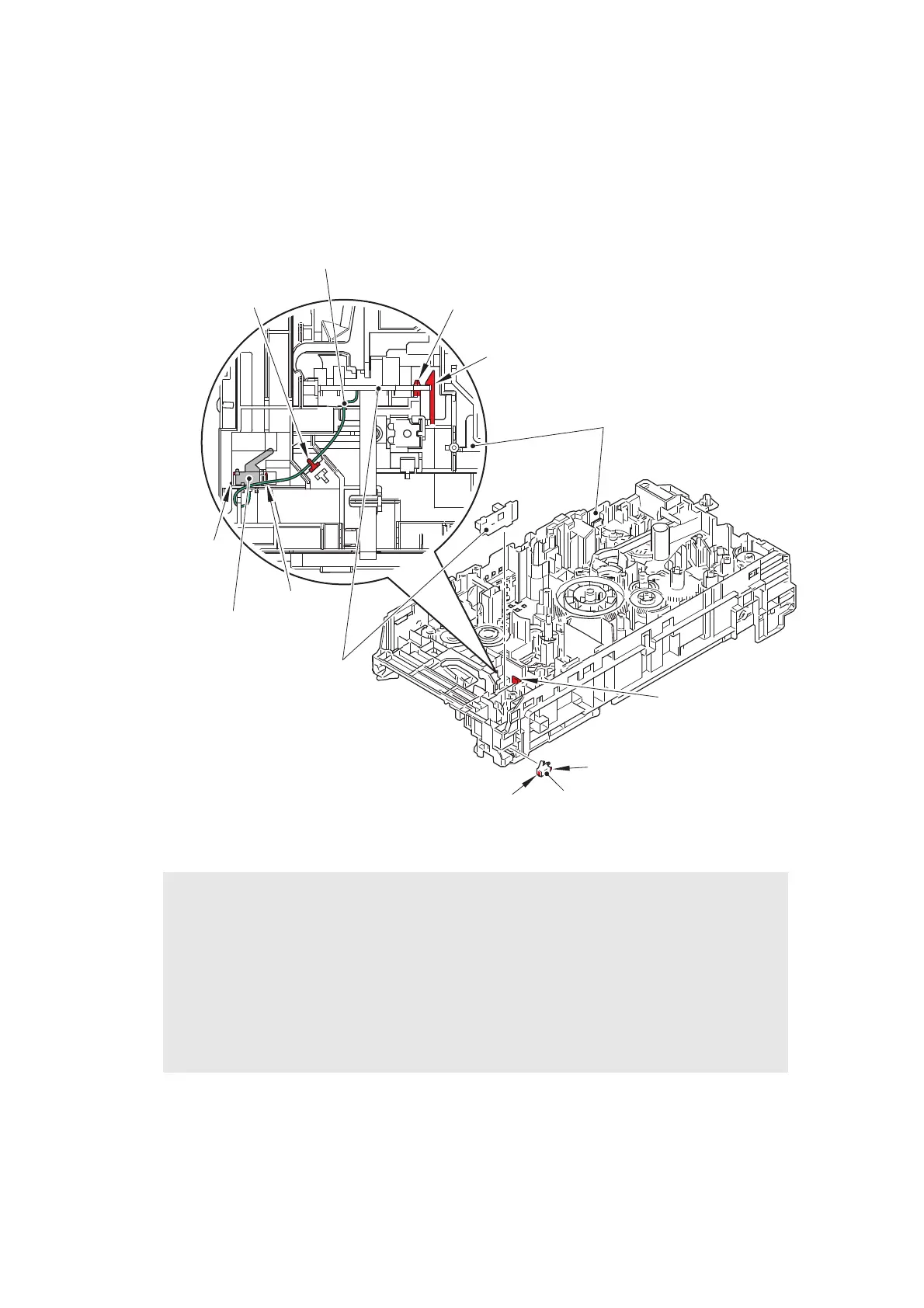

Fig. 3-102
Assembling Note:
• When assembling the back cover/duplex tray sensor, attach it by engaging the hooks B
of the back cover/duplex tray sensor properly.
• If you removed the main shield plate while the fuser unit was attached on the machine,
release the side thermistor harness ASSY and the center thermistor harness ASSY
from the securing fixture of the main frame L ASSY. Then tighten the screw for the main
shield plate and secure each harness in the securing fixture. If the main shield plate is
assembled while the fuser unit is attached to the machine, the side thermistor harness
ASSY and the center thermistor harness ASSY may be caught.
Pin
Eject sensor PCB ASSY
Hook A
Main frame L ASSY
Hook B
Hook A
Hook B
Back cover/duplex tray sensor
Back cover/duplex tray sensor harness
Guide
Back cover/duplex tray sensor
Hook B
Hook B

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
