Brother MFC-L2700D Service Manual

3-98
Confidential
(4) Release the registration front/rear sensor PCB harness and the LVPS harness from the
securing fixtures.
(5) Remove the taptite cup S M3x6 SR screw and the two taptite bind B M4x12 screws, and
remove the main frame R ASSY. Pull out the registration front/rear sensor PCB harness
from the hole.

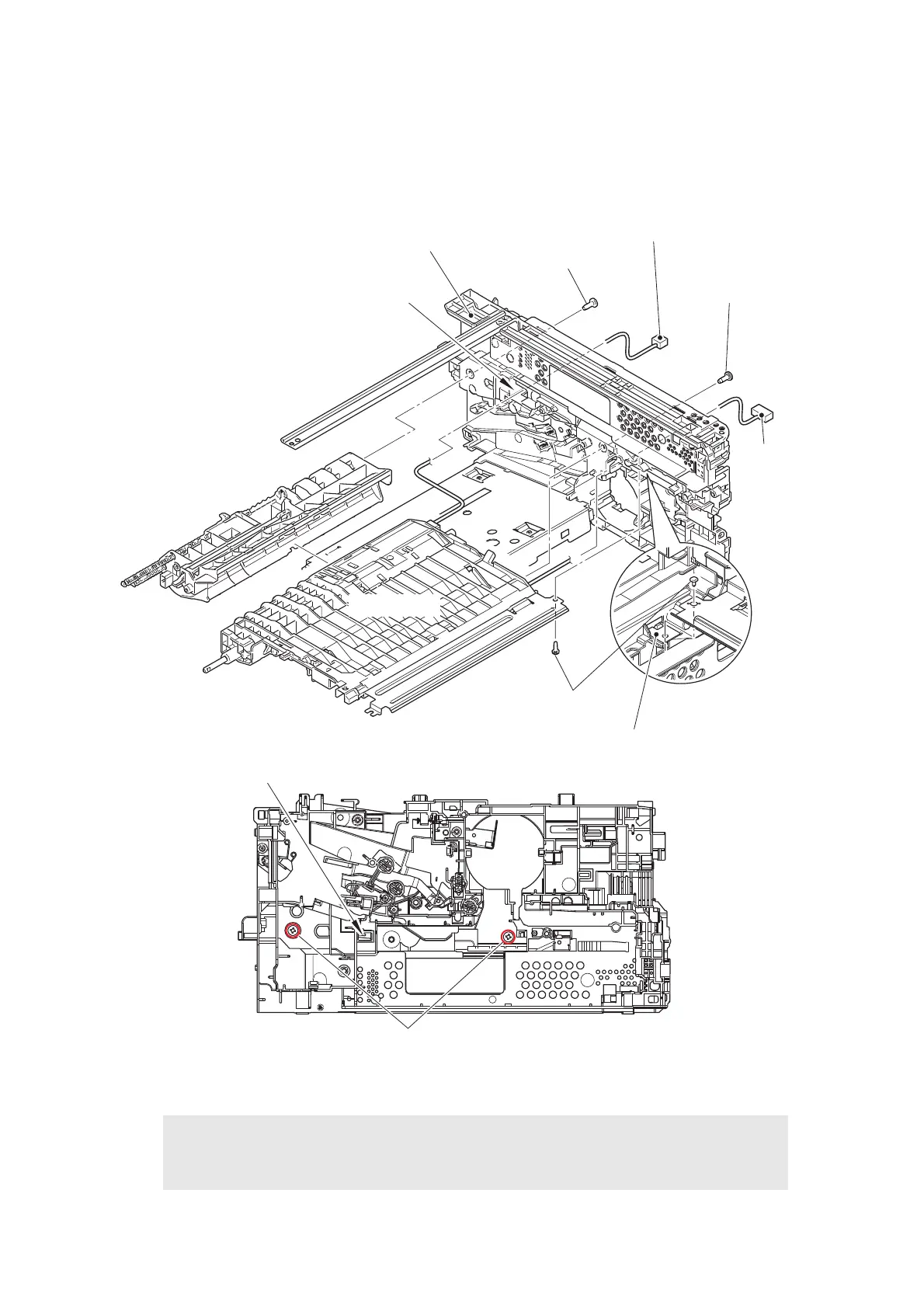

Fig. 3-104
Harness routing: Refer to “1. Right side of the machine” and “2. Top side of the registration chute”.
Assembling Note:
• When attaching the main frame R ASSY, check that the LVPS FG plate is set to the
main frame R ASSY.
Taptite cup S M3x6 SR
<Overhead view
of frame R>
LVPS FG plate
Hole
Registration front/rear sensor PCB harness
Main frame R ASSY
Taptite bind B M4x12
Hole
Taptite bind B
M4x12 (5a)
<Back side>
LVPS
harness
<Bottom side>
Taptite bind B M4x12 (5b)

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
