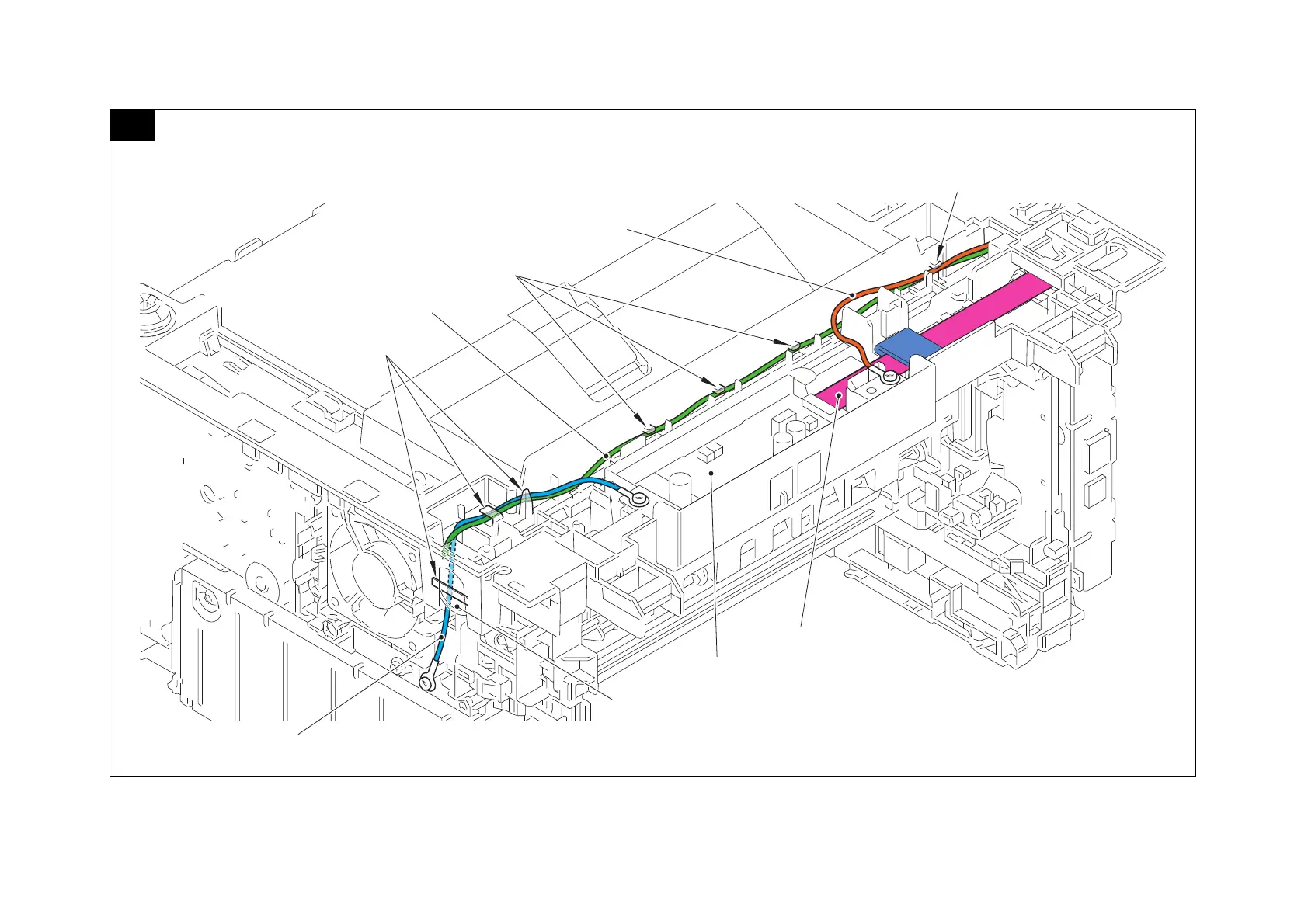

7 Speaker unit, Modem (LVPS side)

Harness colors are subject to change for some reason.

Modem flat cable

Modem PCB ASSY

Guide

Modem FG harness main (YW)

Guides

Speaker harness (RD, BK)

Guides

Modem FG harness LVPS (GN)

Speaker unit
