Brother MFC-L2700D Service Manual

3-36
Confidential
(4) Release the hook to remove the ADF FFC holder while opening the document scanner
unit. Release the each harness from the securing fixtures.
(5) Open the document scanner unit at 30 degrees, and remove it by lifting it up.

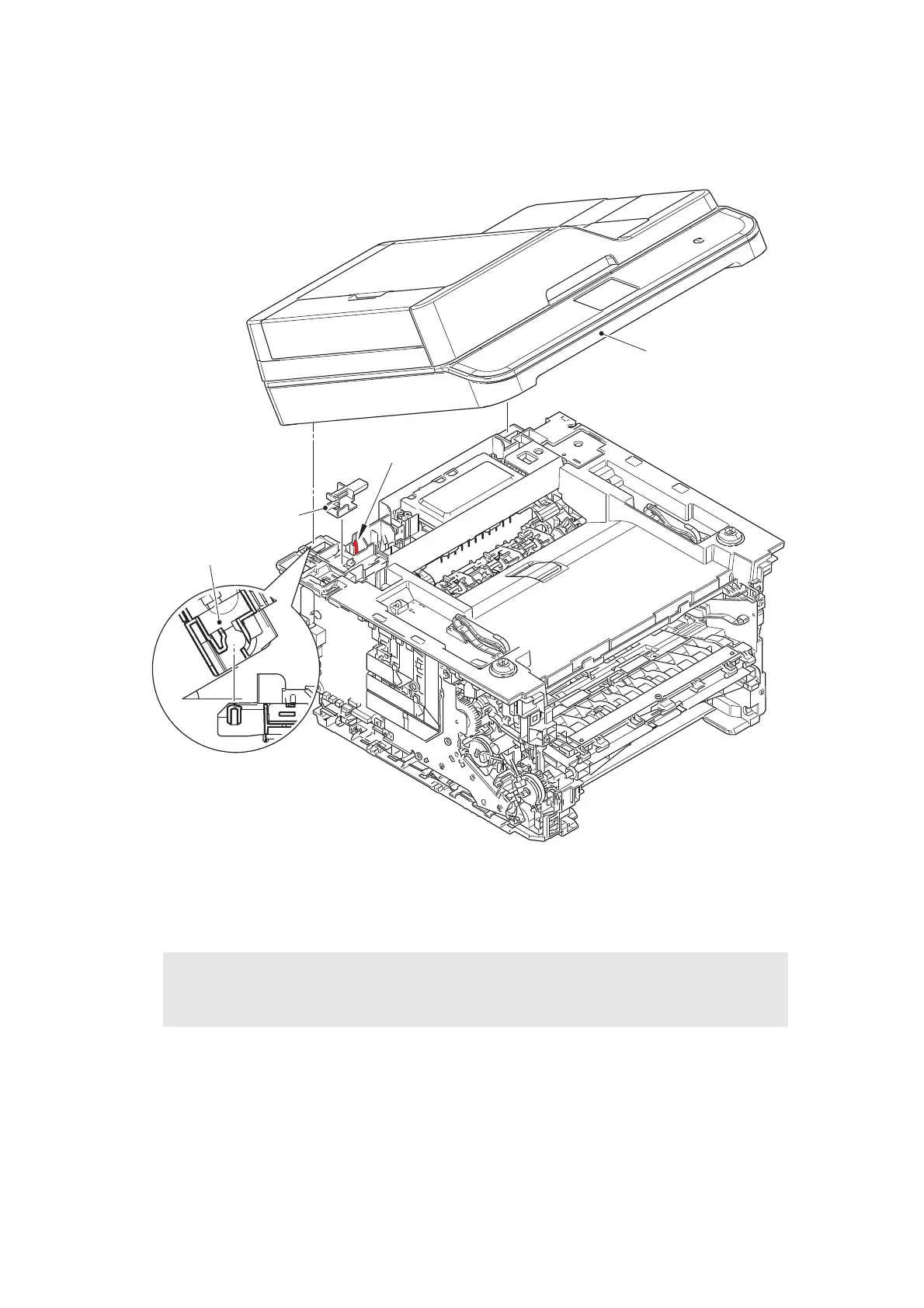

Fig. 3-23
Harness routing: Refer to “12. ADF unit - Main PCB ASSY”, “13. Document scanner unit -
Main PCB ASSY”.
Assembling Note:
• If you replaced the document scanner unit, refer to “5. IF YOU REPLACE THE FIRST
SIDE CIS UNIT OR DOCUMENT SCANNER UNIT” in Chapter 4 to configure settings.
Hook
ADF FFC holder
30°
Document scanner unit
Document scanner unit

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
