Brother MFC-L2700D Service Manual

3-45
Confidential
(3) Remove the two CIS spacers from the second side CIS unit.
(4) Take off the second side CIS flat cable attached on the back of the ADF unit from the
double-sided tape.
(5) Lift the second side CIS unit, and disconnect the second side CIS flat cable.
(6) Remove the two CIS springs from the ADF unit.

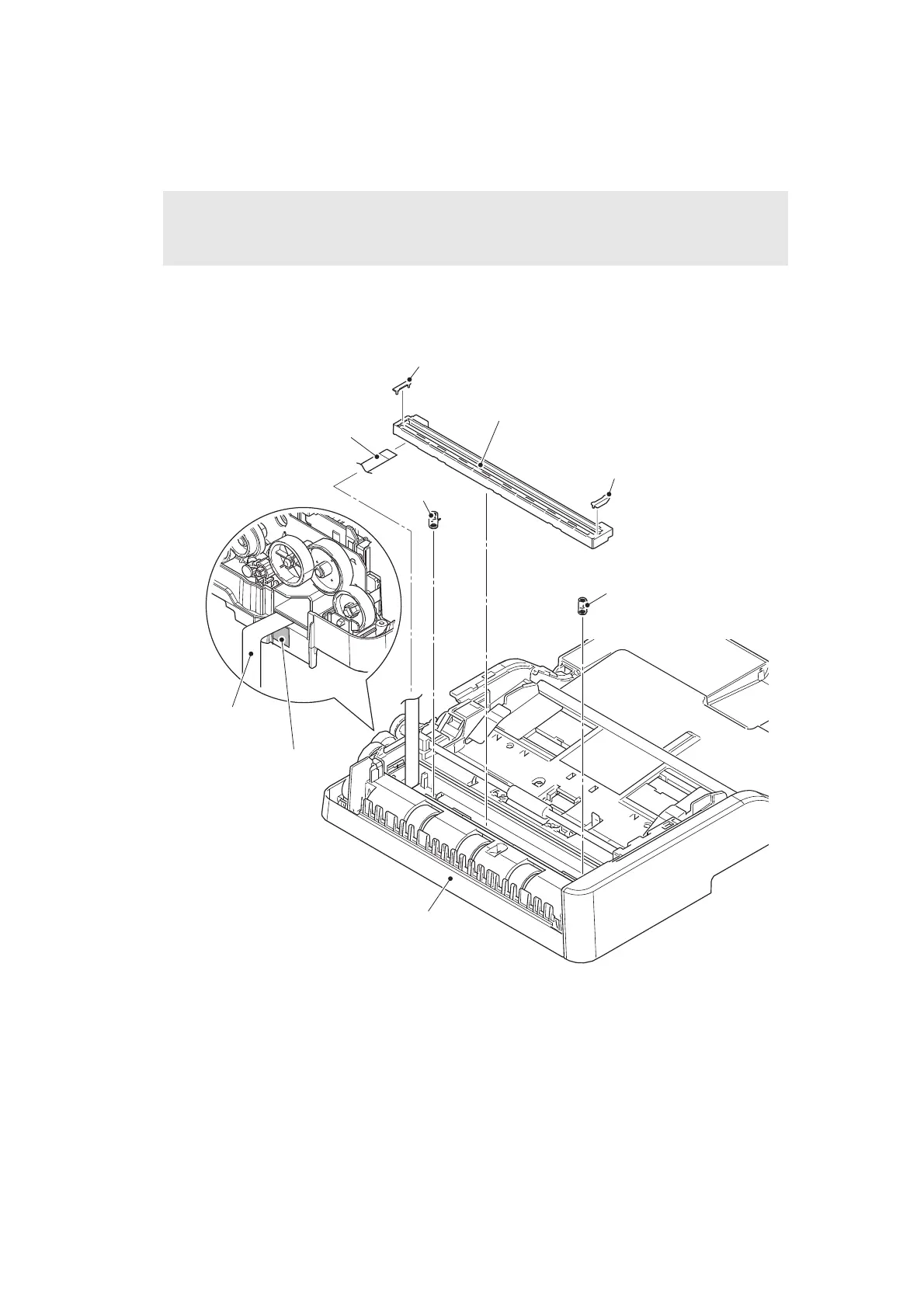

Fig. 3-35
Note:
• Be sure to replace the double-sided tape with a new one, after taking off the second
side CIS flat cable from the double-sided tape.
CIS spacer
Second side CIS unit
CIS spacer
Second side CIS flat cable
Double-sided tape
Second side CIS
flat cable
ADF unit
CIS spring
<Rear view of the
ADF unit>
CIS spring

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
