Brother MFC-L2700D Service Manual

3-91
Confidential
(6) Remove the taptite bind B M4x12 (6a) screw (for securing the under bar), the taptite cup
S M3x6 SR (6b) screw (for securing the chute ground plate), the taptite bind B M4x12
(6c) screw (for securing the registration chute) and the taptite cup S M3x8 SR (6d) screw
(for securing the laser L FG plate).
(7) Remove the two taptite bind B M4x12 (7a) screws and the two taptite cup S M3x8 SR
(7b) screws, and remove the main frame L ASSY. Pull out the paper feed sensor
harness ASSY and the LVPS harness from the holes.

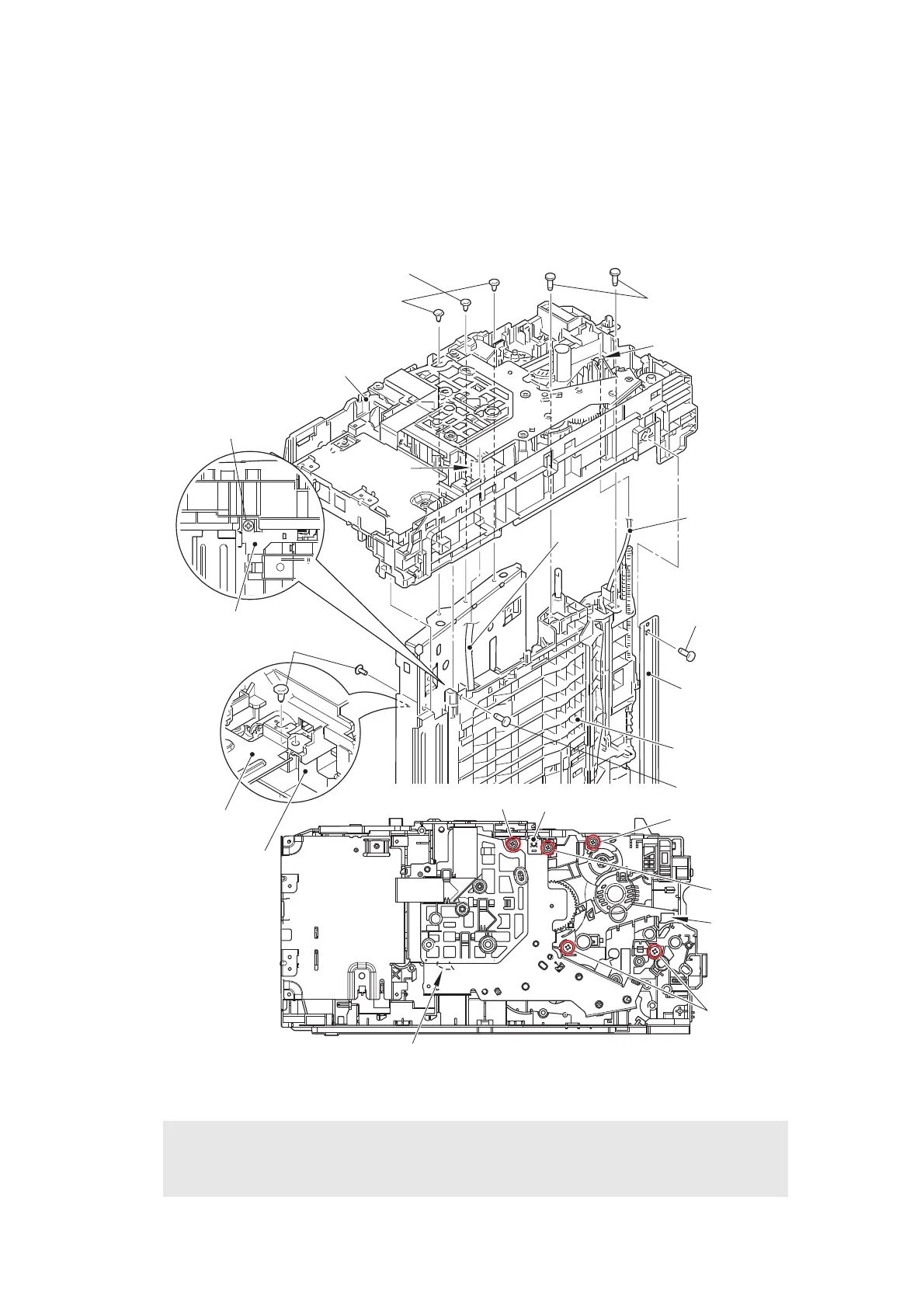

Fig. 3-95
Harness routing: Refer to “3. Left side of the machine”.
Assembling Note:
• When assembling the main frame L ASSY, make sure that the chute ground plate is
above the main PCB FG plate 2.
Taptite cup S M3x8 SR (6d)
Taptite cup S M3x8 SR (7b)
Taptite bind B M4x12
(7a)
Main frame L ASSY
Taptite bind B M4x12 (6c)
Registration chute
Taptite cup S M3x6 SR (6b)
Chute ground plate
Taptite bind B
M4x12 (6a)
Under bar
Registration chute
Taptite bind B
M4x12 (6c)
7b
Laser L FG plate
6d
7a
7b
<Upper side of frame L>
Main PCB FG
plate 2
Hole
Hole
Paper feed sensor
harness ASSY
LVPS
harness
Hole
Hole
<Bottom view>
<Overhead view
of frame L>

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
