Brother MFC-L2700D Service Manual

5-18
Confidential

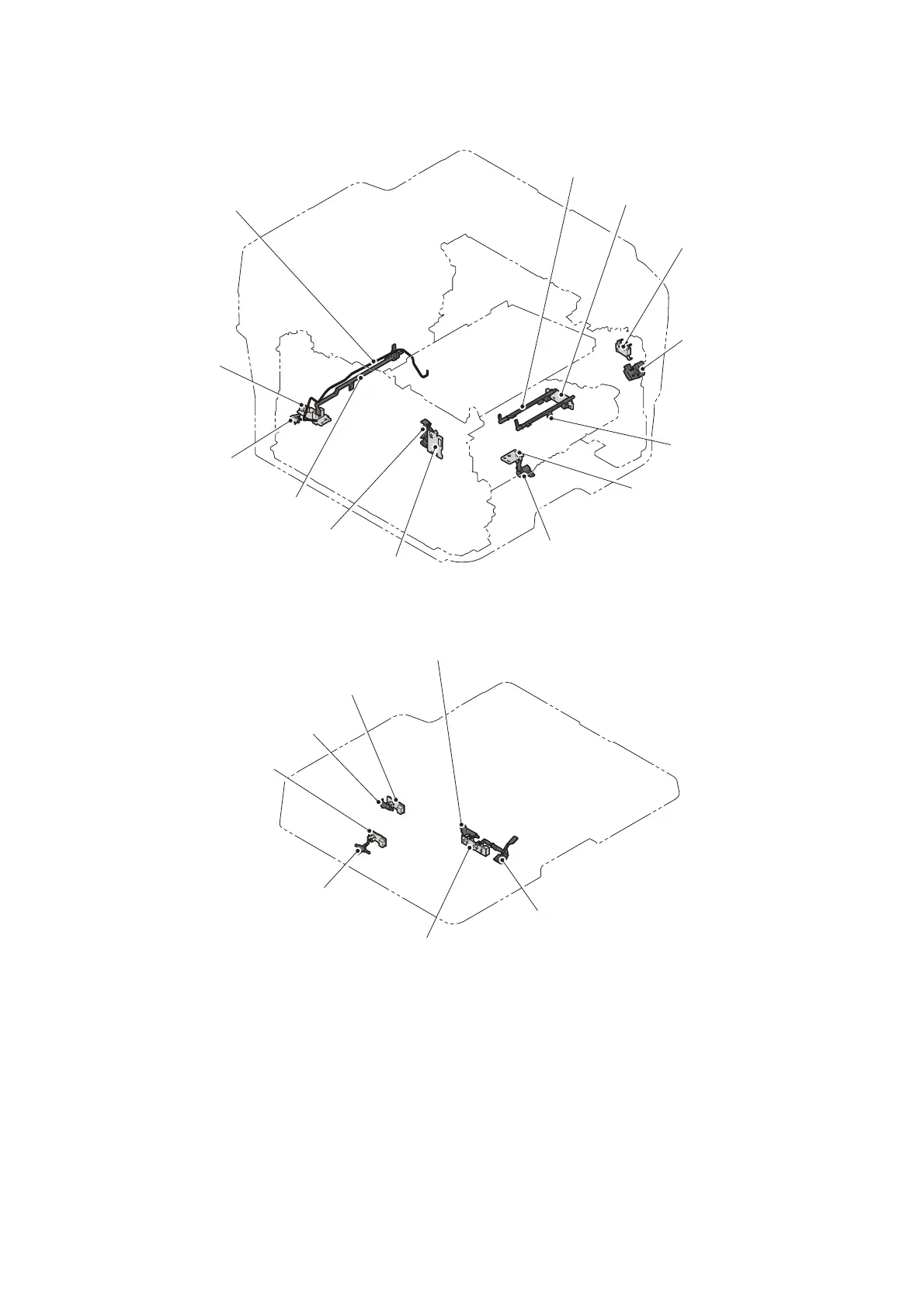

 Location of sensors
Fig. 5-9
Fig. 5-10
Registration rear actuator
Eject sensor
Registration front
actuator
Back cover/duplex
tray sensor
Front cover sensor
Internal temperature sensor
New toner actuator
New toner sensor
Registration front/rear sensor
Front cover sensor
lever
Paper feed sensor
Paper feed actuator
Eject actuator
Document detection actuator
ADF cover actuator
ADF cover/document detection
sensor
First side document scanning
position actuator
First side document
scanning position sensor
Second side document
scanning position actuator
Second side document
scanning position sensor
