Carriage motor

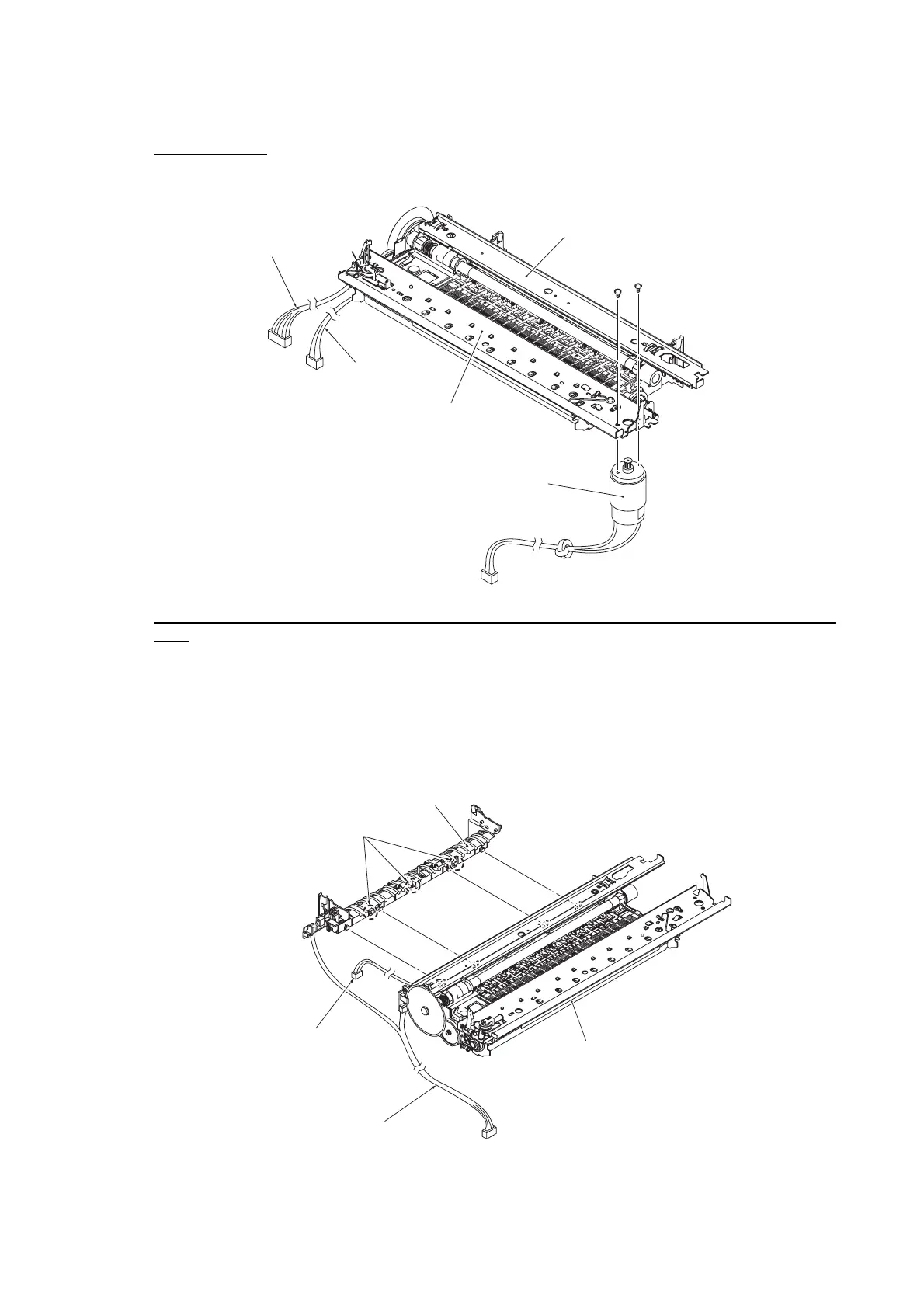

(6) Remove the carriage motor from the engine unit by removing the two screws.
CR support chassis
(6_57)
PF encoder/registration
sensor harness
Paper feed
motor harness
Carriage motor
CR guide rail
Screw, bind M3x6
Inner chute ASSY, registration sensor actuator, registration sensor PCB, and PF encoder
PCB
(7) Release the three latches of the inner chute ASSY from the engine unit.
NOTE: Do not pull the inner chute ASSY away from the engine unit since it is connected to
the engine unit with the PF encoder/registration sensor harness and the paper feed motor
harness.
(8) Release the PF encoder/registration sensor harness and the paper feed motor harness from the
cable guides on the inner chute ASSY. (The routing detail is shown on the next page.)
(6_58)
Latches
(Front)
PF encoder/registration
sensor harness
Paper feed
motor harness
Engine unit
Inner chute ASSY
