6-69 Confidential

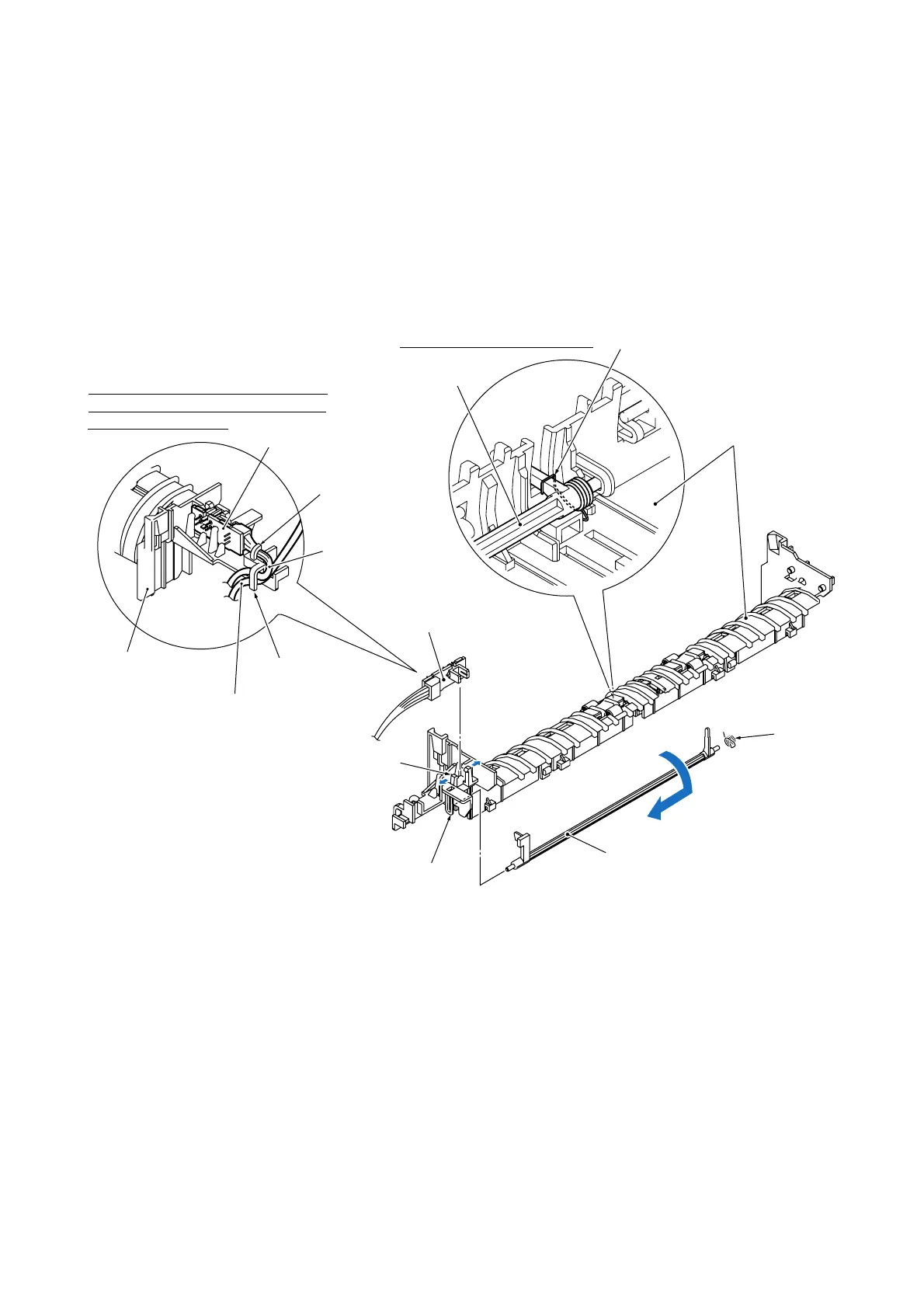

(9) Turn the registration sensor actuator in the direction of the arrow shown below and take it off
the inner chute ASSY. The sensor actuator spring comes off.
(10) Take the registration sensor PCB out of the support arms.
NOTE: The registration sensor PCB and the PF encoder PCB are assembled with their
harnesses. To completely release the registration sensor PCB from the engine unit, therefore,
you need to remove the PF encoder PCB at the next step.
Cable guide
Registration sensor PCB
Cable guide
Registration sensor PCB
(6_59)
Routing the PF encoder/registration sensor
harness and the paper feed motor harness
on the inner chute ASSY
Inner chute ASSY
PF encoder/
registration
sensor harness
Sensor actuator spring
Inner chute ASSY
Hooking the sensor actuator spring
Sensor
actuator
spring
Registration sensor actuator
Actuator support
Support arms
Registration sensor
actuator
Paper feed motor harness
To Next Page
