Overview 3

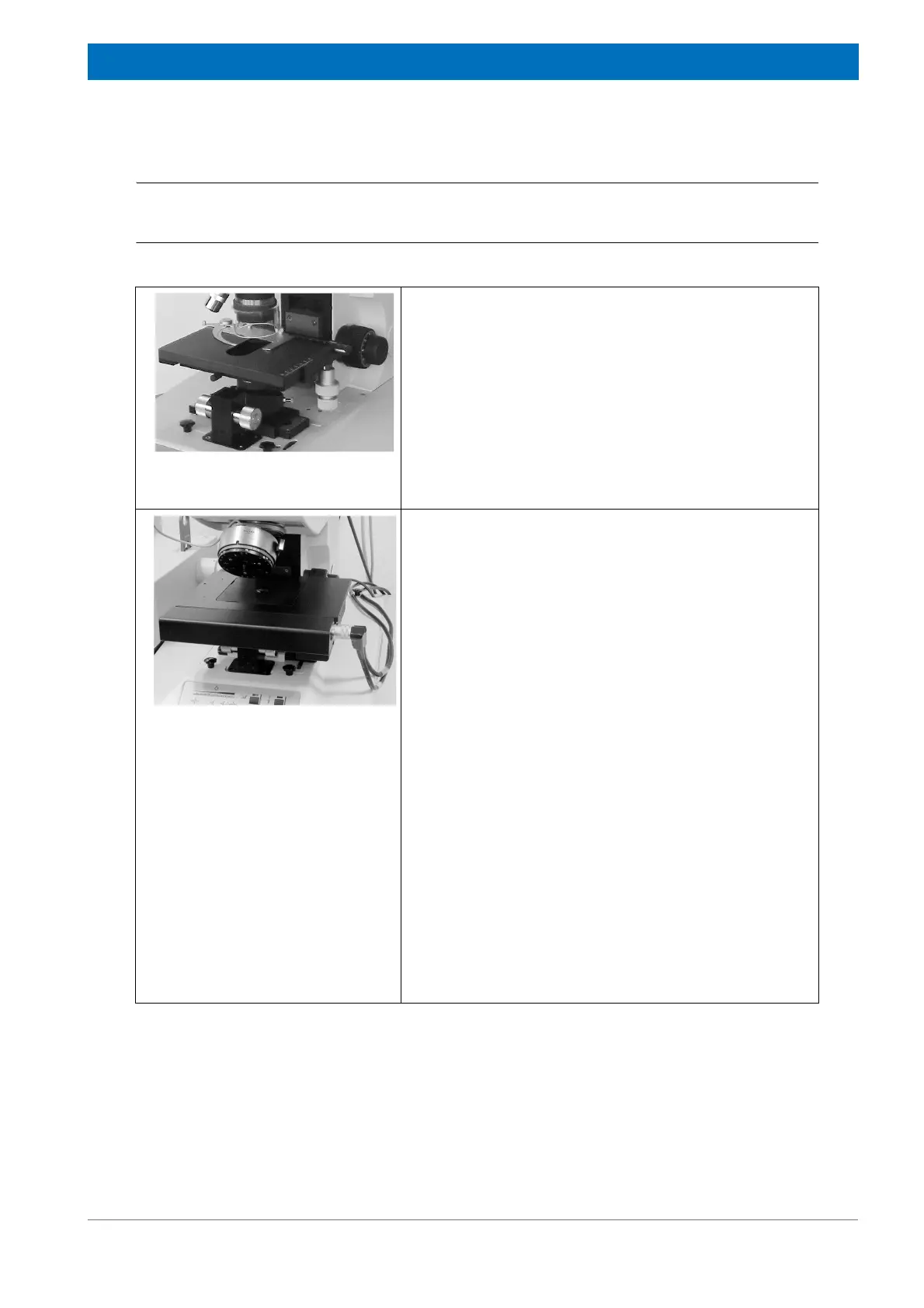

3.5 Microscope stages
3.5.1 Overview
☞ For information about optional stages and sample holders, see section 5.3.
Manual stage
This type of stage is standard for the HYPERION 1000
variant. It can be moved in x-, y- and z-direction only man-
ually.
☞ For information about the manual stage operation,
see section 3.5.2.
With this stage, only single point measurements with the
current stage position are possible. Mapping measure-
ments at predefined x/y-stage positions are not possible.
Motorized stage
This type of stage is standard for the variants
HYPERION 2000 and HYPERION 3000.
By default, the motorized stage can be moved in x- and y-
direction by means of a joystick and the corresponding
OPUS functions. Optionally, a joystick- and computer-con-
trolled stage movement in z-direction is also possible.
☞ For information about a joystick-controlled stage
movement, see section 3.5.5.
☞ For information about a computer-controlled stage
movement, refer to the OPUS/VIDEO Manual and the
OPUS/MAP Manual.
With a motorized stage, spectroscopic mapping measure-
ments at predefined measurement positions are possible.
Important note: By default, the motorized stage is
equipped with two motors allowing for a motorized stage
movement in x- and y-direction. A joystick- and computer-
controlled stage movement in z-direction (focussing) is
only possible if the motorized stage is equipped with a
third motor. The third stage motor is an optional feature.
By default, the max. travel range in x- and y-direction is
50 mm x 75 mm.
