3.5.4 Motorized stage
i
A joystick- or computer-controlled stage movement is only possible if the stage option
lstepMICstage has been selected when configuring the mapping device and the imaging
device in OPUS. For performing mapping measurements with the ATR objective, the
stage option stepATRMICstage needs to be selected. For information about how to con-
figure the mapping device and the imaging device, refer to the OPUS/VIDEO Manual.

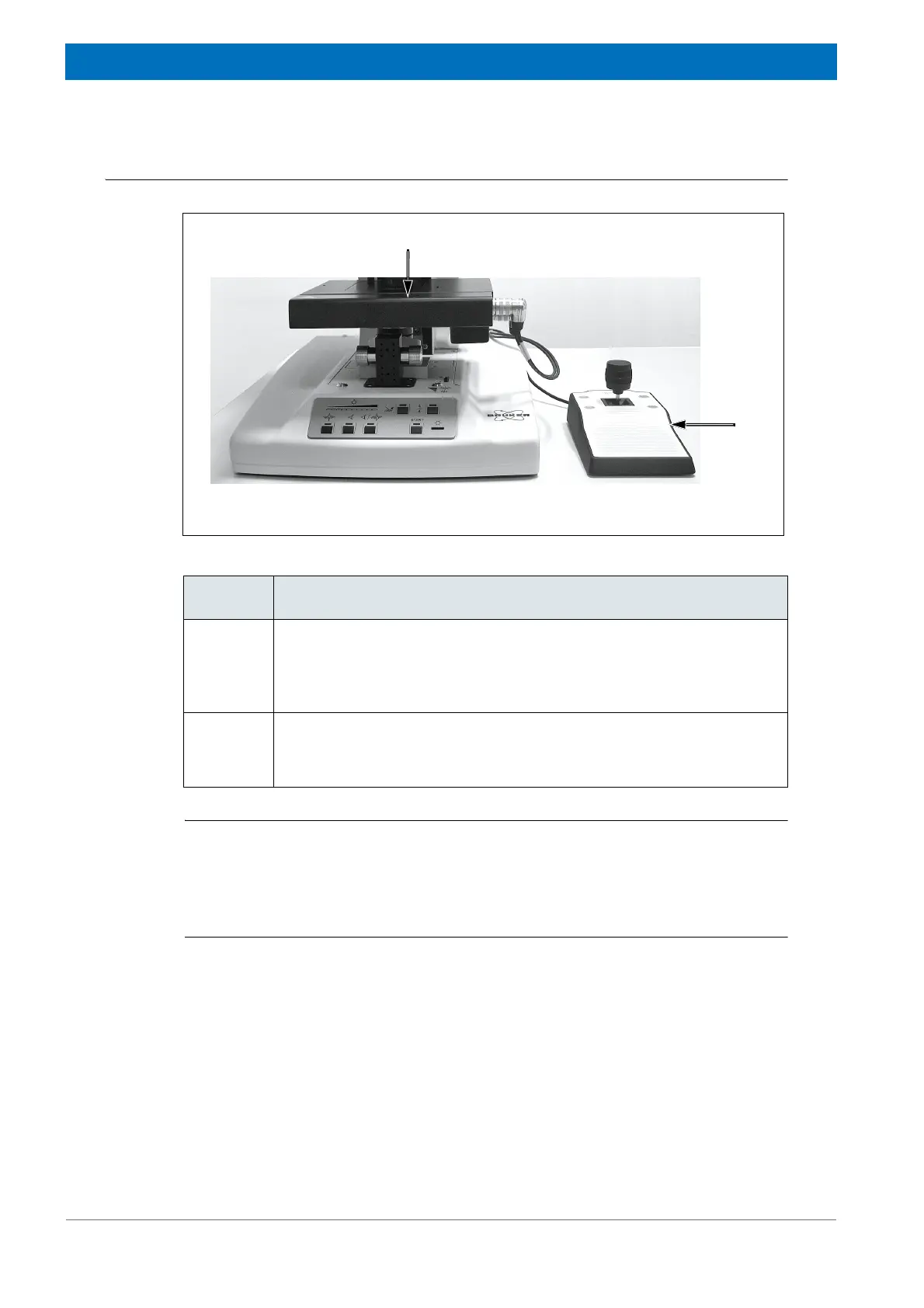

Figure 3.8: Motorized stage (front view)
B
A
Fig. 3.8 Component and Explanation
A Motorized sample stage
Note: After each computer reboot, the motorized stage needs to be reset
(i.e. the stage needs to move to its home position x=0; y=0). See
section 4.5.
B Joystick: to control the stage movement in x- and y-direction
Note: In case of a motorized x/y/z stage, a joystick-controlled stage
movement also in z-direction is possible.
