For verifying the currently detected IR
signal intensity, compare the amplitude
value displayed in OPUS (see image in
step 10) with the amplitude value for the
reflection mode stated in the supplied
OVP test protocol (see image in step 11).

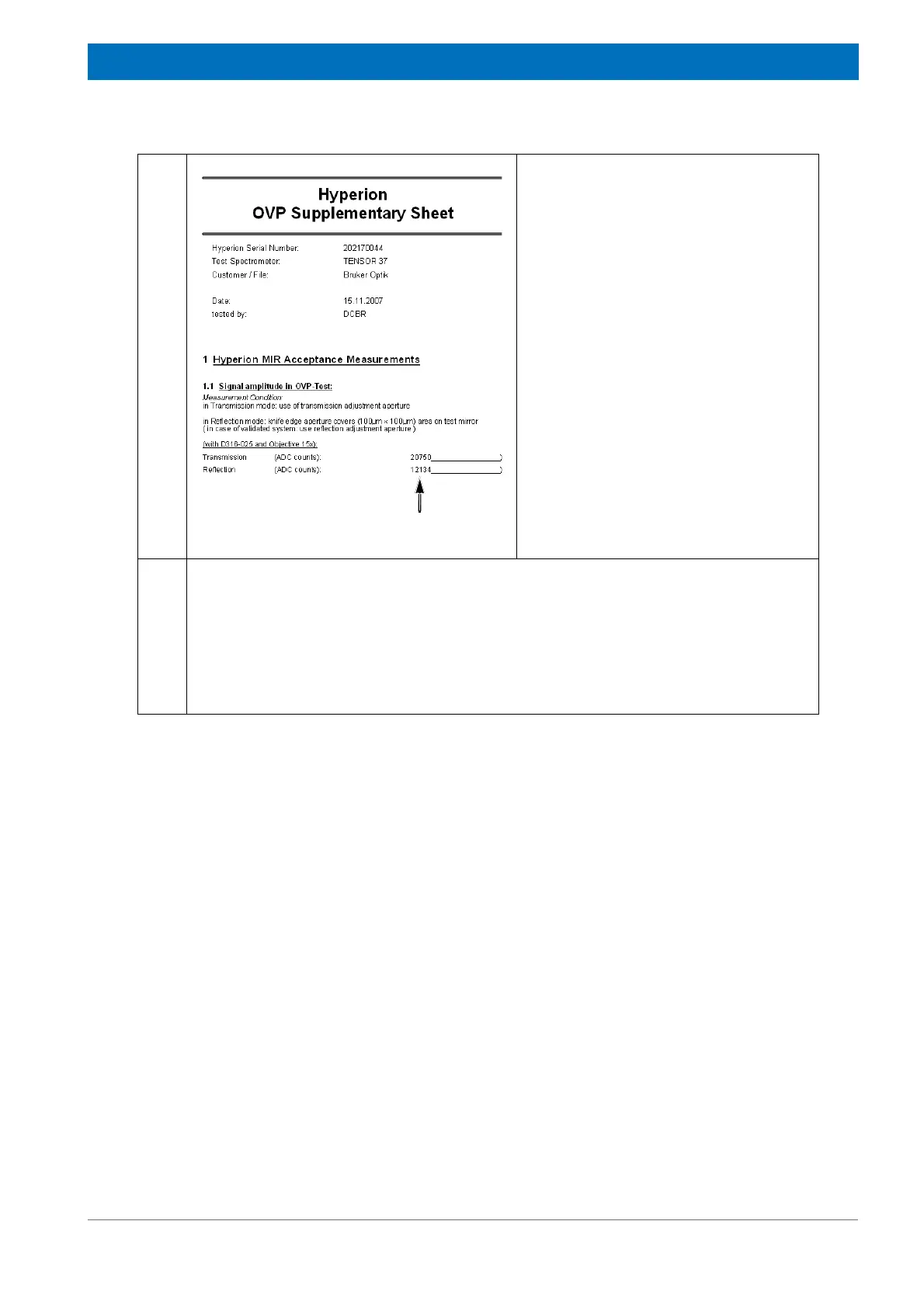

The supplied test protocol Hyperion OVP
Supplementary Sheet documents the
result of a factory-performed signal check
using your analysis system. The test has
been performed with all optics compo-
nents being optimally adjusted. You will
find the test protocol in the folder supply
with the microscope.
12
If there is not any IR signal detected or if the amplitude value displayed in OPUS deviates
significantly from the amplitude value of the supplied OVP test protocol, see section 7.2
for possible causes and troubleshooting solutions.
Note: A detected amplitude value above 32.000 is an indication of an oversaturated
detector. In this case you first have to reduced the signal intensity until the detector is no
longer oversaturated. For information about how to reduce the signal intensity, see
section 4.8.
