Brunswick StringPin - Belt Alignment

4-14 Section4:Adjustments
Belt Alignment
1. Disconnect the accelerator power cord.
2. Remove the accelerator from the Ball Box.
3. If the belt is not centered on the front pulley drum:
a. Using a 17 mm socket, ratchet and wrench, loosen the two screws and nuts securing the
pivot levers. ONLY loosen screws enough to allow slight adjustment of pivot levers. Refer
to Figure4-13.

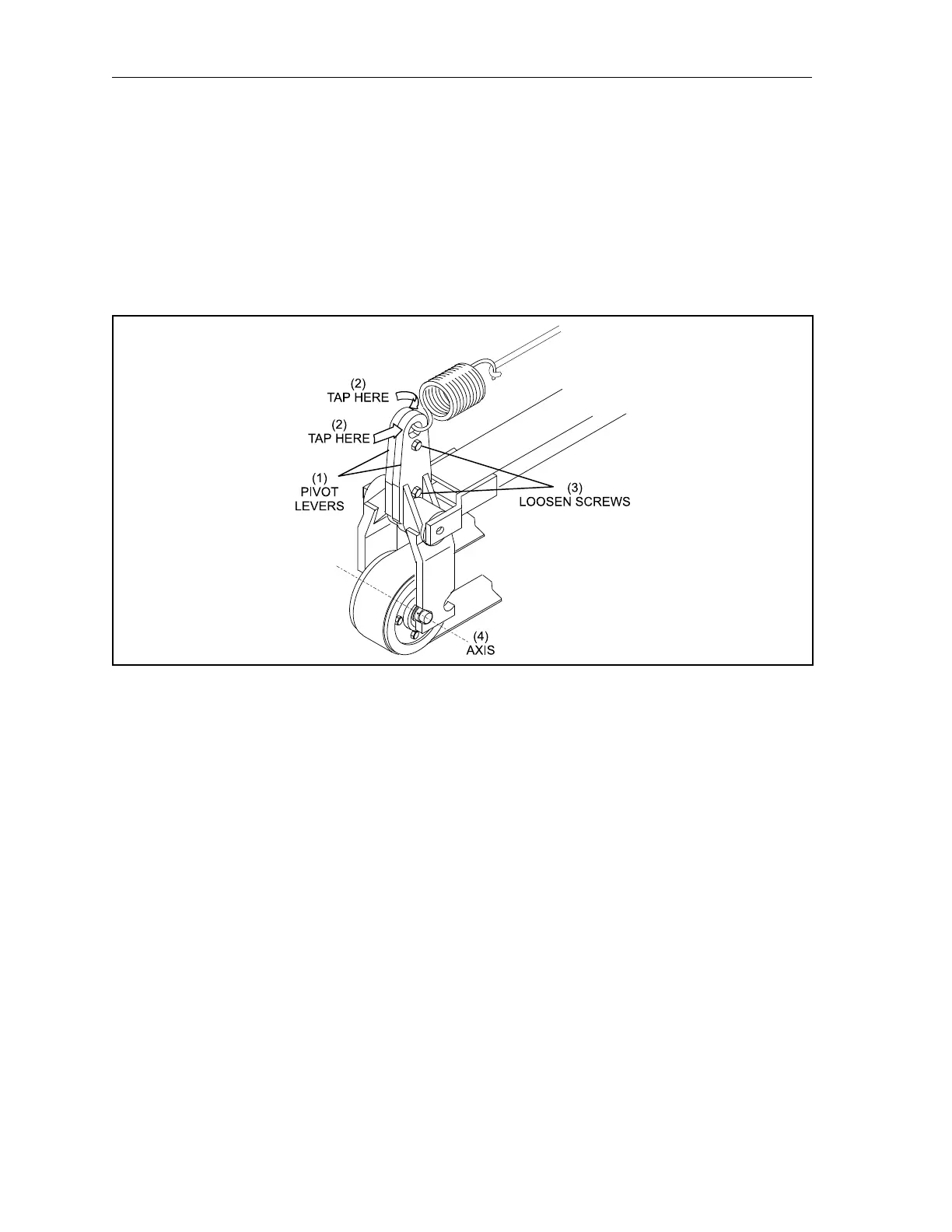

Figure4-13.LoosenHardwareSecuringPivotLevers
(1) PIVOT LEVERS (2) TAP HERE (3) LOOSEN SCREWS
(4) A XIS
b. Rotate the belt by hand and observe belt tracking. Use light, short taps from a soft rubber
mallet to reposition left and right pivot levers until belt is tracking on the center of pulley
drum. When the belt is centered, tighten two screws and nuts securing the pivot levers.
Refer to Fig ure 4-15.
c. Reinstall the Accelerator into the Ball Box.
d. Reconnect the accelerator power cord and observe the tracking. Repeat Step #3 if the belt
is not centered.
