Section 2: Overview 2-1
Section 2 - Overview
This manual is designed to help you service, repair, and perform preventive maintenance on your
pinsetters in a safe and ecient manner. Prior to working on one of these pinsetters, you should read the
safety information and be familiar with the Safety Requirements located at the beginning of the manual.
This manual also provides troubleshooting guidelines that will help reduce downtime and can be used
to provide years of reliable operation of your pinsetters.
OPERATION AND CYCLES
Turning the Pinsetter On/Off
The pinsetter can be turned o using the Stop/Run switches located at the back or front of each
individual machine or on the String Pin Controller box. Always turn the Pinsetter o before working
on the machine. If internal service work is to be performed, turn o the main power switch and use an
approved lockout device on the main power switch to prohibit the machine from being turned on. Refer
to Figure 2-1
(2)
MAIN
POWER
(3)
STRINGPIN
CONTROLLER
(1)
STOP/RUN
SWITCH
(1)
STOP/RUN
SWITCHES
(1)
STOP/RUN
SWITCH
(1)
ST
OP/RUN
SWITCH
(4)
START
BUTTON

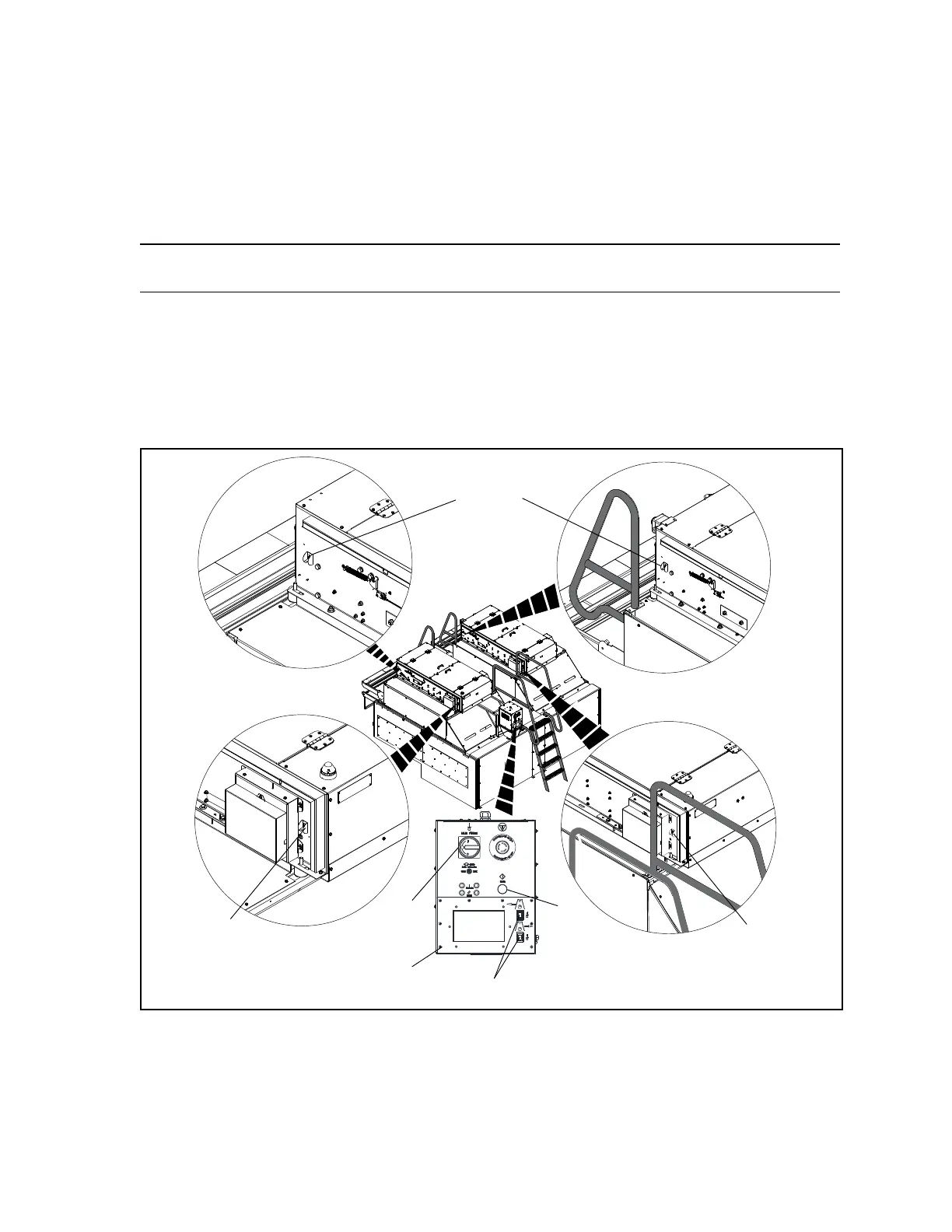

Figure2-1.PinsetterOn/OControl
(1) STOP/RUN SWITCH (2) MAIN POWER (3) STRINGPIN CONTROLLER
