Section 5: Maintenance & Service 5-7
Ball Accelerator Motor Wiring
1. Turn the pinsetter on briey and watch the rotation of the motor. Verify that the large belt will
propel the ball forward.
2. If the motor is running backward, swap any two of the three supply wires at the motor’s
terminal block. This will reverse the direction of the motor shaft. Refer to Figure5-7.
WARNING: Never swap the ground (earth) wire with one of the supply wires.
WHT
U1 BRN
V2 GRA
W1 BLK
WHT
V1 BLU
(2)
ACCELERATOR
MOTOR
(1)
MOTOR CABLE
FROM CONTROLLER BOX
(3)
TO AS
CABLE
U2 RED
W2 YEL
208V / 220V
380V
(4)
WIRING
STRAPS
YEL/GRN
(5)
GND
WHT
U1 BRN
V2 GRA
W1 BLK
WHT
V1 BLU
(2)
ACCELERATOR
MOTOR
(1)
MOTOR CABLE
FROM CONTROLLER BOX
(3)
TO AS
CABLE
U2 RED
W2 YEL
(4)
WIRING
STRAPS
YEL/GRN
(5)
GND
(6)
JUNCTION BOX
(6)
JUNCTION BOX

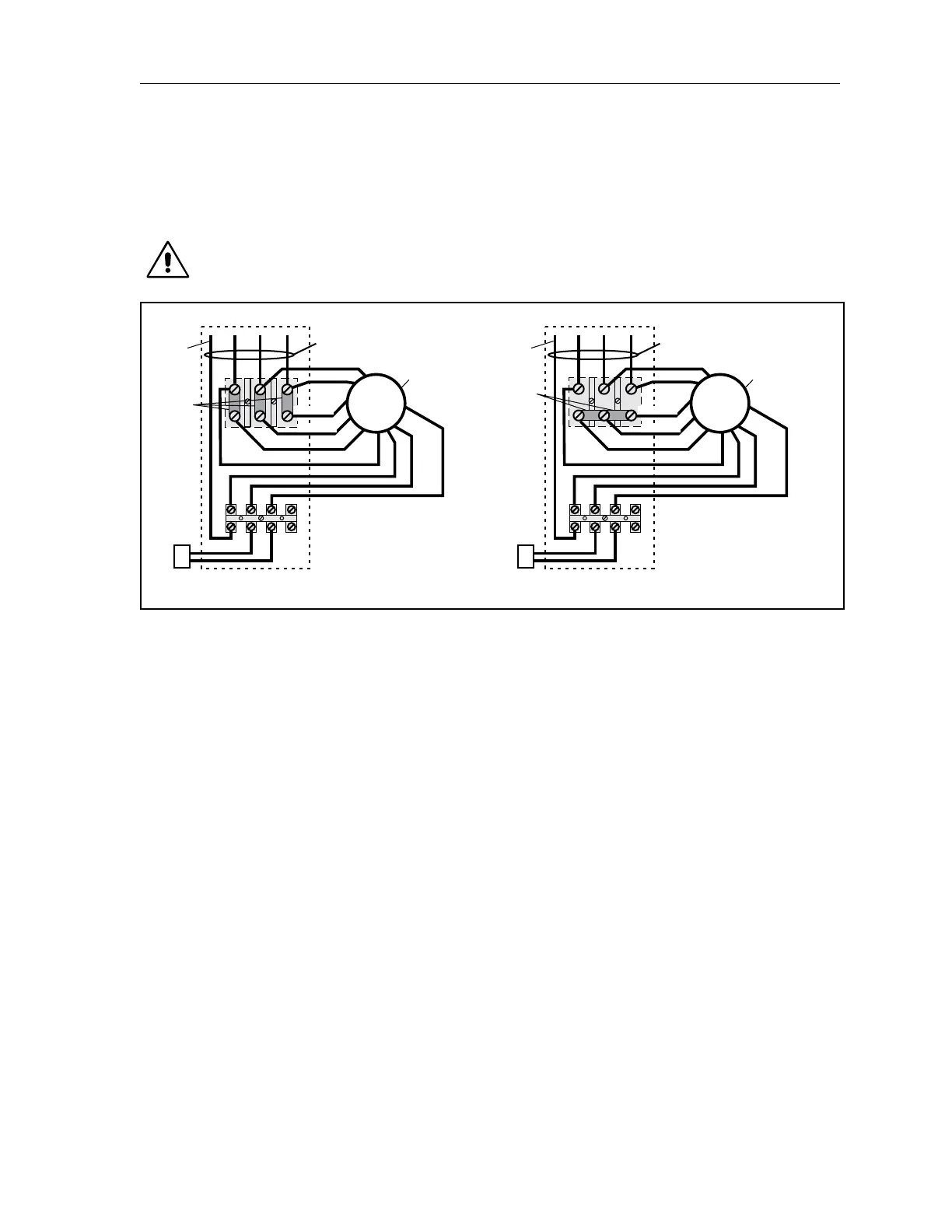

Figure5-7.AcceleratorMotorWiring.
(1) MOTOR CABLE FROM (2) ACCELERATOR MOTOR (3) TO AS CABLE
CONTROLLER BOX
(4) WIRING STRAPS (5) GROUND (6) JUNCTION BOX
