Work Area 3 - Pindeck
Rarely, a pinsetter stop or maintenance requires access further into the machine. For situations that
cannot be performed from work areas 1 or 2, work Area 3 can be used. Refer to Figure 2-29 for the
work area. This area may be used for such activities as:
1. Detangling Pins
2. Ball Return Stop - Pin Deck
CAUTION: When accessing work area 3, the main power switch on the
StringPin controller must be locked in the o position using a suitable locking
mechanism.
CAUTION: Detangling pins and/or addressing a ball return stop places the
mechanic between the bowler and the machine. Place and properly secure a
Brunswick Ball Stop or similar 3rd Party Product between the bowler and the
mechanic. Additionally, make sure that a bowler is not positioned to throw a
ball before putting yourself between the bowler and the machine. It is a good
practice to have another employee positioned near any bowler to ensure they
cannot throw a ball and/or place a sign on the approach to indicate the lane is
not available for bowling.
(1) HANDRAILS
(2)
WORK
AREA 3

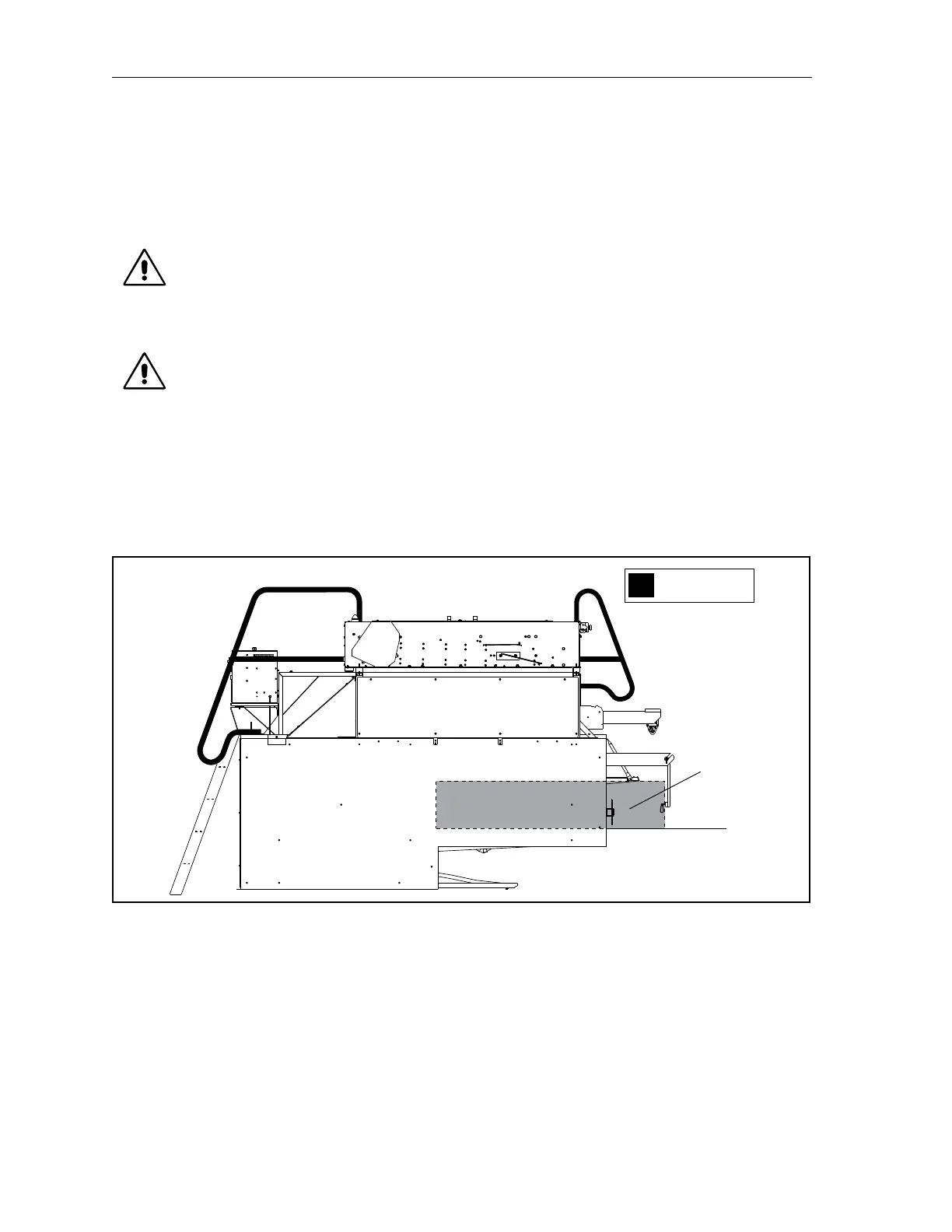

Figure2-29.MachineWorkArea3-PinDeckSideView
(1) HANDRAILS (2) WORK AREA 3
