EMERGENCY STOP (E-STOP)
The Brunswick StringPin Pinsetter has two Emergency stop switches. These switches are to be used to
stop the pinsetter immediately if an emergency were to arise. One E-Stop switch is located on the front
of the machine and the other is located on the rear. Once an E-Stop as been activated, the high voltage
power will be removed from both machines of the lane pair. Refer to Figure 2-30 and Figure 2-31 for
the E-Stop switch locations.

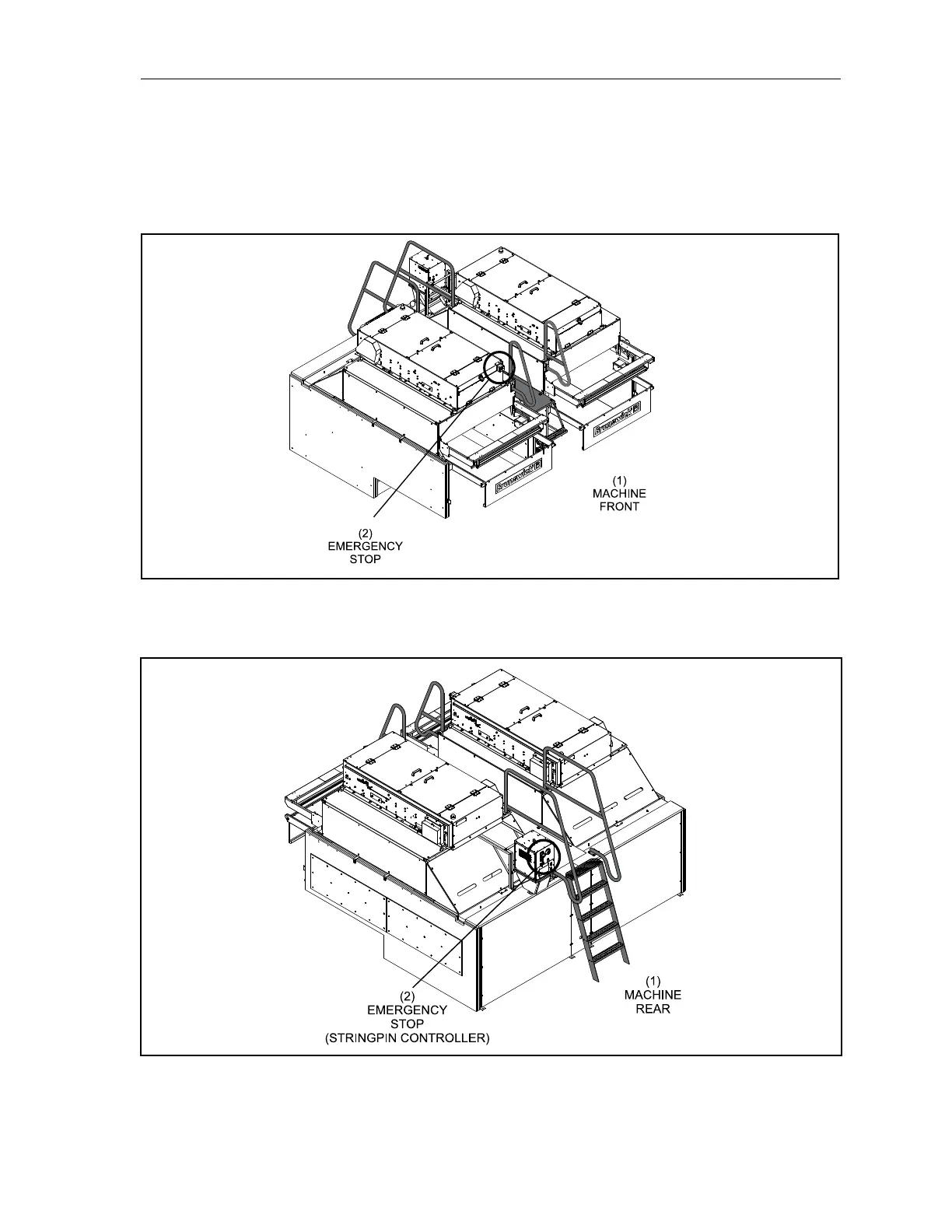

Figure2-30.E-StopSwitch-FrontLocation
(1) MACHINE FRONT (2) EMERGENCY STOP
Figure2-31.E-StopSwitch-Rear(RearmountPulseController)Location
(1) MACHINE REAR (2) EMERGENCY STOP (PULSE CONTROLLER)
