DESCRIPTION OF PINSETTER CYCLES
There are four rst ball cycles and one second ball cycle. Additional cycles may be available if a
scoring system is connected to the pinsetters.
First Ball Cycles
The rst ball cycles include:
1. First Ball - Strike
2. First Ball - Standing Pins
3. First Ball - Short Cycle
4. First Ball - Foul
Prior to the bowler throwing a ball, the pinsetter will at its home position. Refer to Figure3-35.
(1)
STRING
WAGON
(4)
STRING
GUIDE FINS
(2)
HOME POSITION
SWITCH
(3)
MAGNET
T
A
T
I
O
O
N
R
(1)
STRING
WAGON

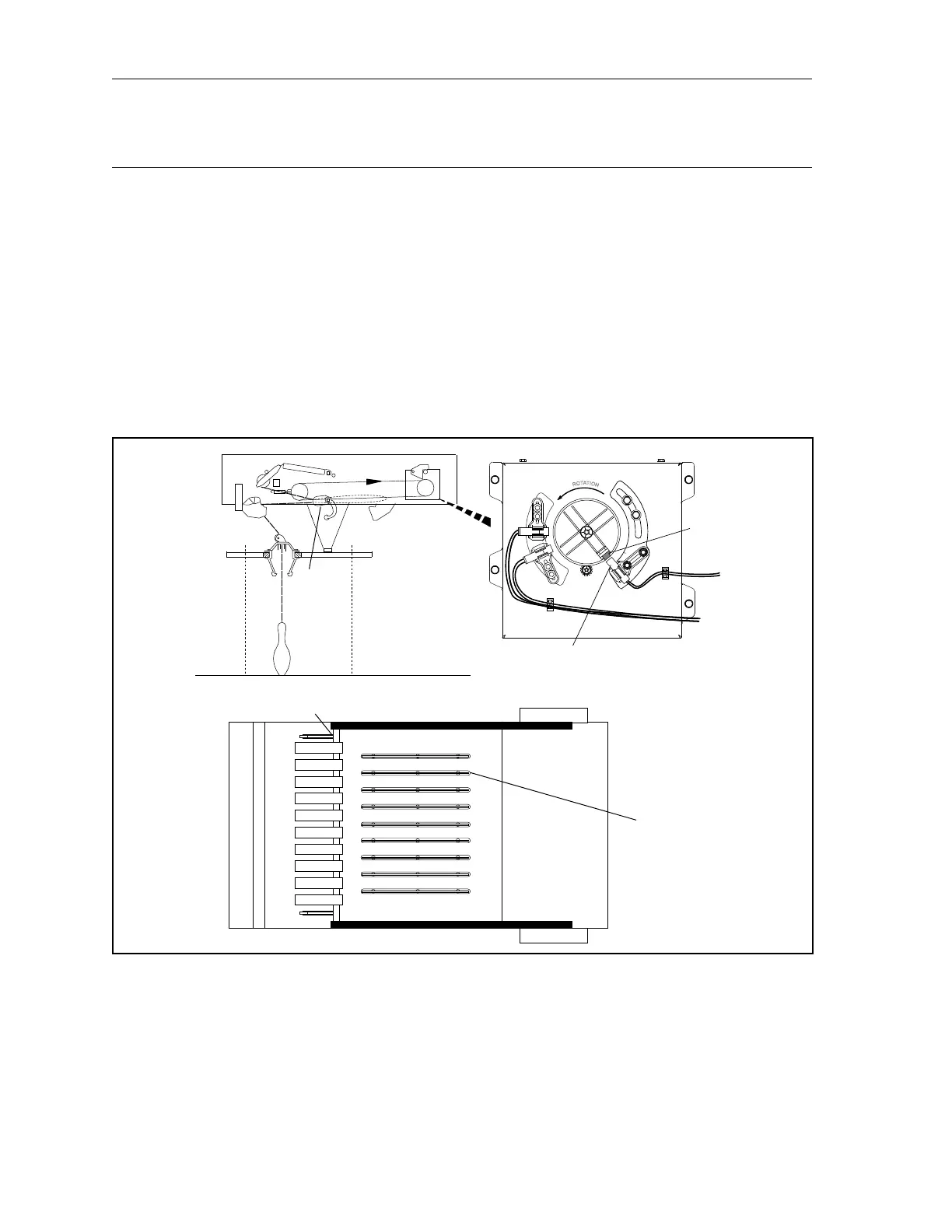

Figure3-35.PinsetterisReadyforBowling
(1) STRING WAGON (2) HOME SWITCH (3) MAGNET
(PINS ON PINDECK)
(4) STRING GUIDE FINS
