Section 3: Pinsetter Electronics 3-37
PINSETTER SWITCHES AND SOLENOIDS
De-tangling Bar and Switch
If the string of two or more pins become tangled as the pins are being raised, additional string
pressure is put on the tension lever assemblies causing them to rotate into the de-tangling bar. This
action rotates the cam located on the end of the bar o of the de-tangle switch. The machine enters a
de-tangle sequence in an attempt to remedy the problem by turning the drive motor on/o to create an
up and down motion of the pins. Refer to Figure3-27.

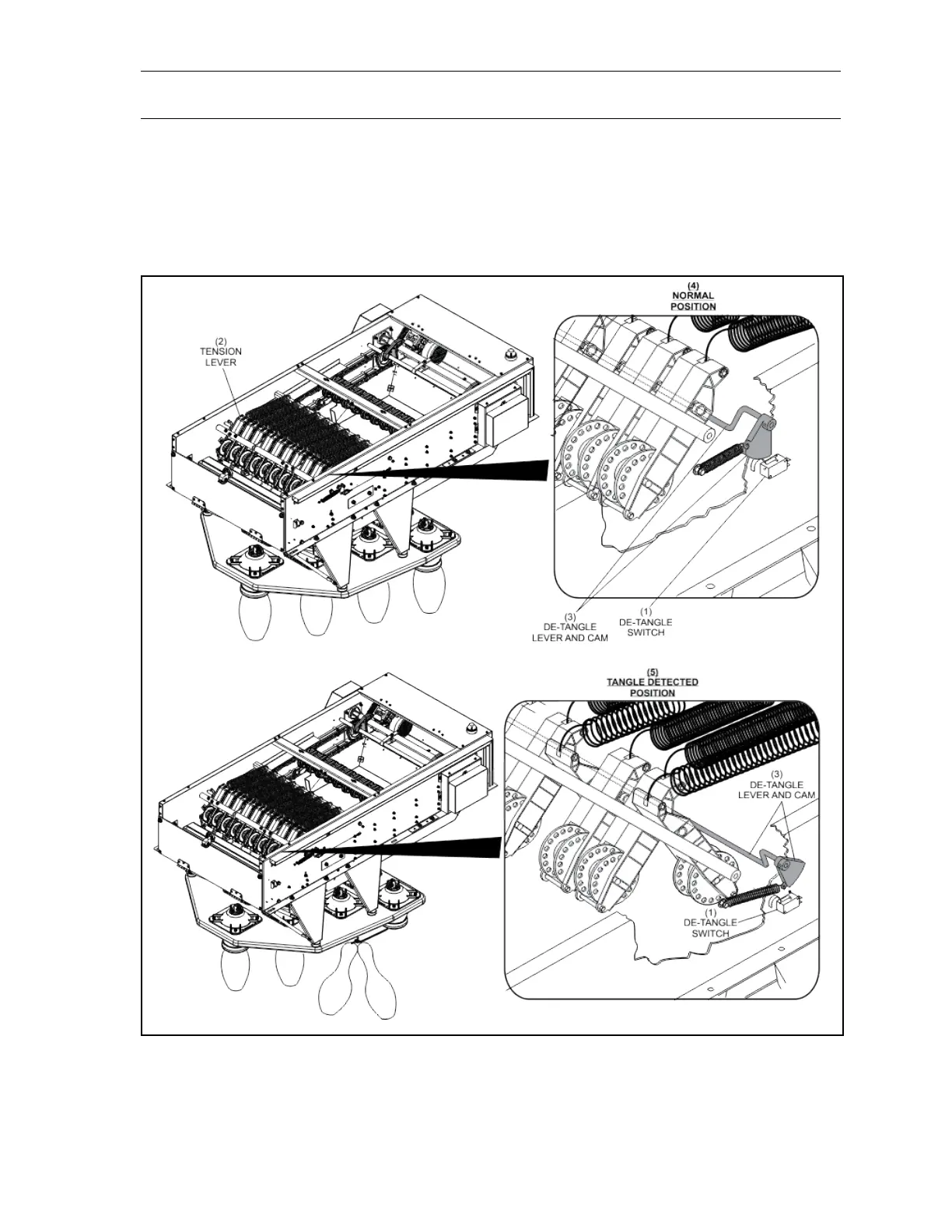

Figure3-27.De-tangleSwitchActivation
(1) DE-TANGLE SWITCH (2) TENSION LEVER (3) DE-TANGLE LEVER AND CAM
(4) NORMAL POSITION (5) TANGLE DETECTED POSITION
