Brunswick StringPin - Pinsetter Status Light;Machine Power on Sequence

Section 2: Overview 2-3
PINSETTER STATUS LIGHT/MACHINE POWER ON SEQUENCE
e white light located on top of the StringPin pinsetter provides the operator with valuable information
concerning the state of the machine. Refer to Figure 2-2 and Figure 2-3 for more information.
(1)
FRONT
(2)
PINSETTER STATUS
LIGHTS

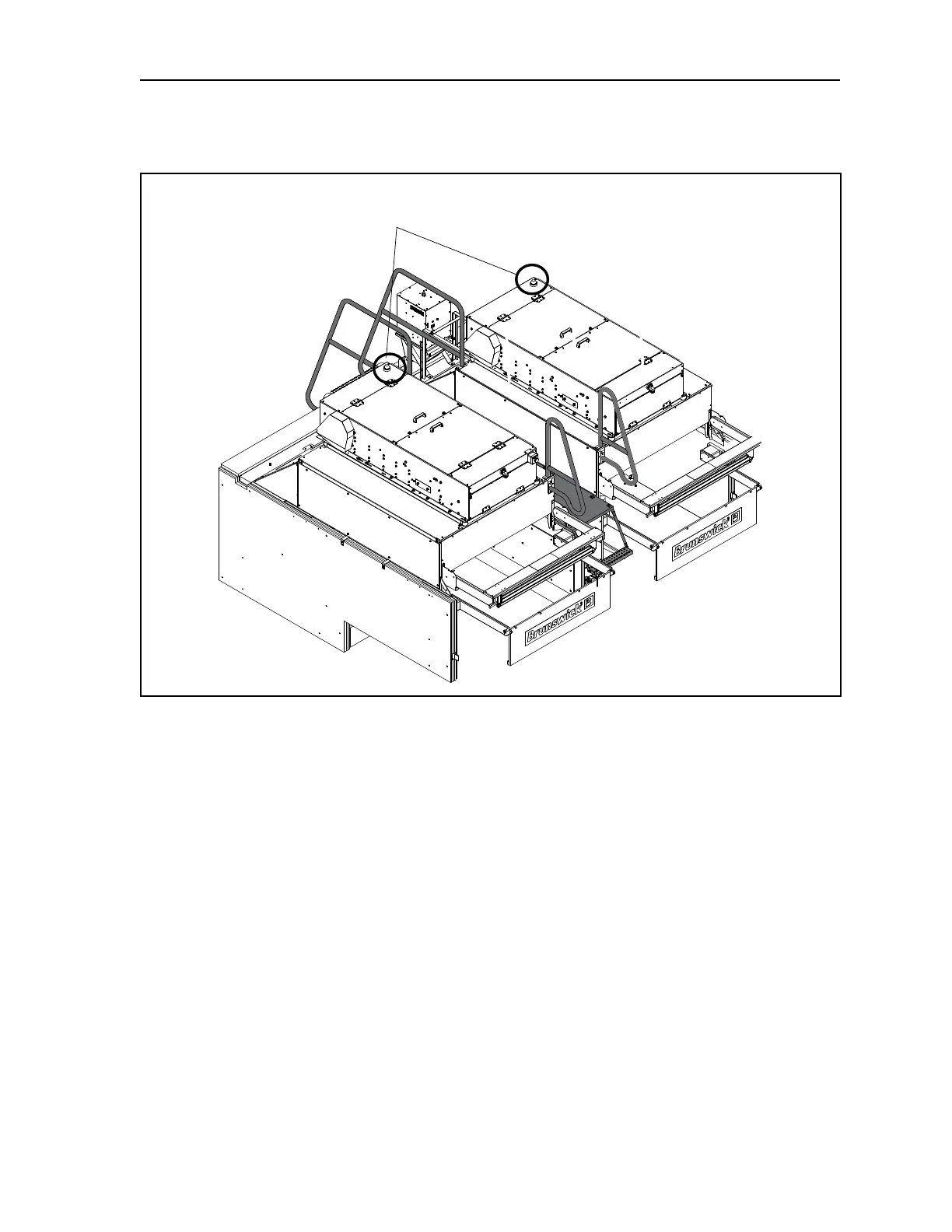

Figure2-2.StringPinPinsetterStatusLightLocation
(1) MACHINE FRONT VIEW (2) PINSETTER STATUS LIGHTS
