Brunswick StringPin - Power Supply

3-36 Section 3: Pinsetter Electronics
Power Supply
V- V- V- V+ V+ V+
RC RCG POK N LP FG
V- V+
(1)
A/C
INPUT
(2)
24VDC
OUTPUT
(3)
POWER
INDICA
TOR

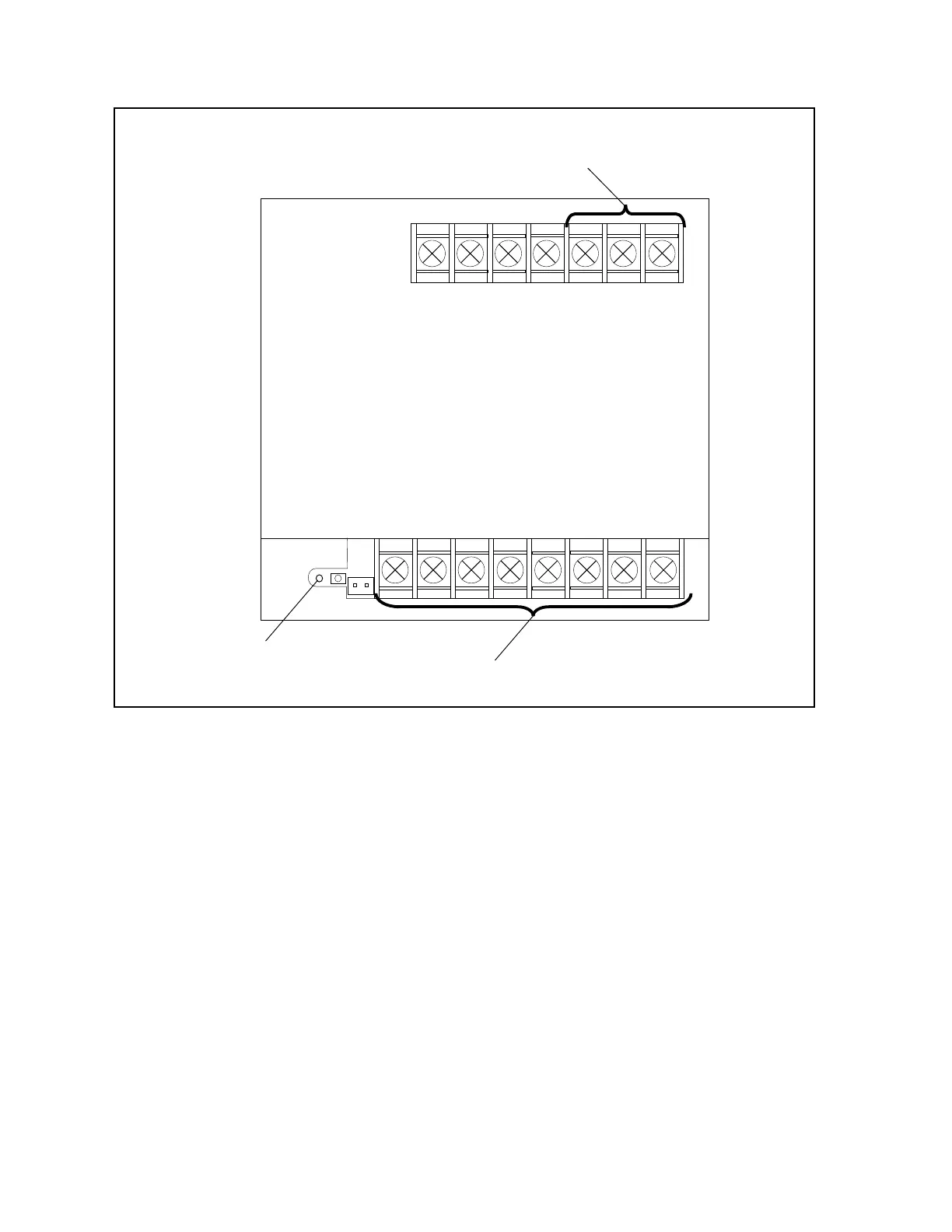

Figure3-26.PowerSupply
(1) A/C Input - Terminals used for the power input to the Power Supply. Terminals used by the
Controller include:
FG - Ground
N - Neutral
L - Line
(2) 24VDC Output - Output connections 24VDC. Terminals used by the Controller include:
V+ 24 VDC
V- GND
(3) Power Indictaor - This LED lights to indicate the power supply is “ON”.
